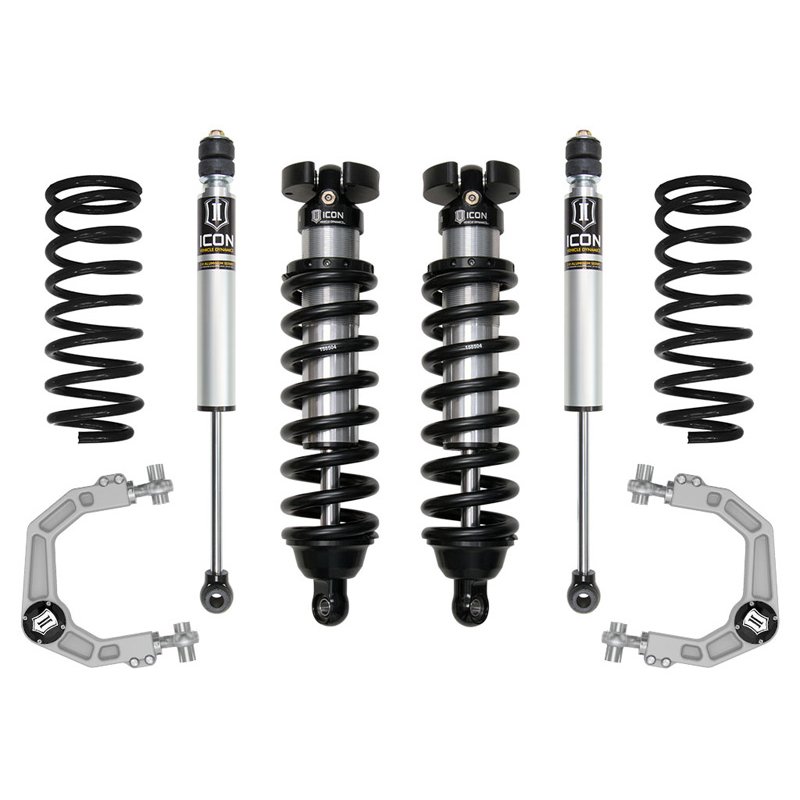

ICON | 0-3" STAGE 2 SUSPENSION SYSTEM W BILLET UCA - 4Runner 2.7L / 3.4L 1996-2002

ICON - Suspension Lift Kit

Description

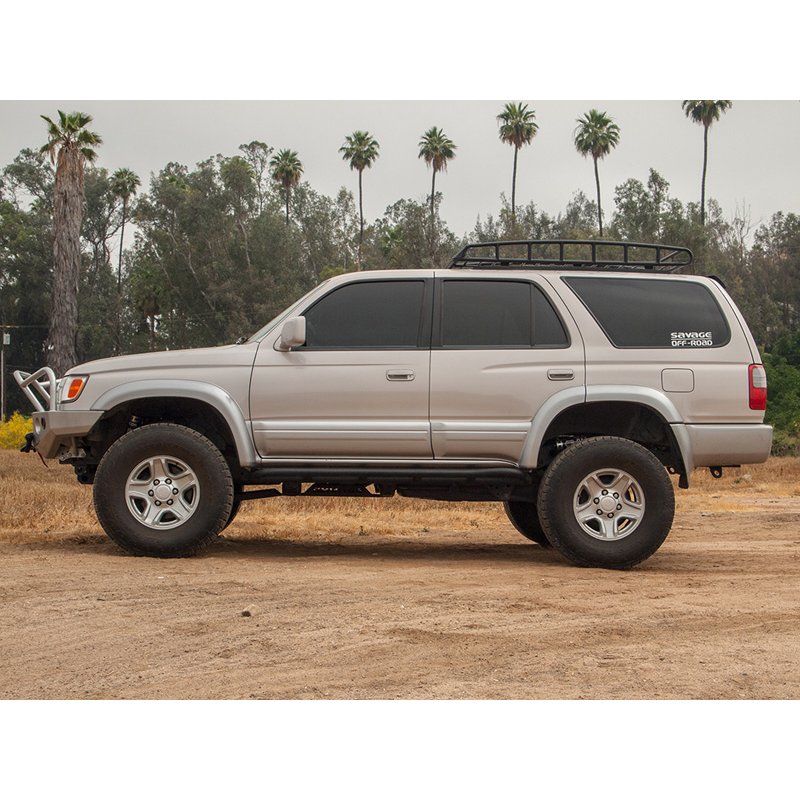

The 1996-2002 Toyota 4Runner was an excellent vehicle off the showroom floor decades ago, and Toyota’s reputation for reliability and performance continues to draw the attention of both hardcore off-road enthusiasts and newcomers to the “3rd Gen” platform to this day. ICON engineers have assessed the 3rd Gen 4Runner front to back and developed components that work together to extract maximum performance out of the vehicle. With the ICON Stage 2 suspension system on and off-road performance is significantly improved with 2.5 VS Series coilovers and 2.0 Aluminum Series rear shocks,that feature ICON engineered coil springs, vehicle-specific shock valving, FK Rod End bearings, and high-quality CNC-machined components for superior damping and control. The 2.5 VS Series coilovers are height adjustable from 0-3” of lift, allowing the use of larger, more aggressive wheel and tire combinations. Fully serviceable shock absorbers mean that these components can be rebuilt or re-valved as necessary, providing a long service life and the ability to customize the ride quality for unique vehicle setups. The included ICON billet aluminum upper control arm kit is designed to improve the overall performance of the Toyota 4Runner with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance. Additionally, replacing the OE ball joint with the serviceable ICON Delta Joint allows for full bump and droop travel of the front suspension while eliminating bind. ICON engineered 1" lift rear coil springs are also included to further increase rear end performance. ICON Vehicle Dynamics' 1996-2002 4Runner Stage 2 suspension system is an excellent choice for those drivers looking to enhance the handling characteristics of their 3rd Gen on the road while also increasing overall performance in the dirt.

Characteristics

• 1078: 650
• 2064: Steel
• 2371: Yes
• 30: Yes
• 3096: Black
• 3097: Yes
• 3390: Performance
• 5520: 3 IN
• 7325: 2
• 7326: 2
• 9270: Linear
• 9271: Linear
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Active or Passive Suspension: Passive
• Add-On Part: 158508 - COIL SPRING 1400.0300.0700 BLACK
• Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
• Add-On Part: 191013 - NIPPLE GREASING ADAPTER KIT
• Add-On Part: 191014 - .25" COLLAR SPANNER PIN WRENCH
• Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
• Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
• Add-On Part: 51045 - TOYOTA .25” BUMP STOP SPACER KIT
• Add-On Part: 614700 - 2.0 SHOCK BOOT KIT (EACH)
• Adjustable Compression: No
• Adjustable Control Arm: Yes
• Adjustable Damping: No
• Adjustable Rebound: No
• Front Reservoir Style: Internal
• Front Shock Body Diameter: 2.5 IN
• Maximum Lift Front: 3 IN
• Maximum Lift Rear: 1 IN
• Minimum Lift Front: 0 IN
• OEM Wheels & Tires Fitment: Yes
• Rear Reservoir Style: Emulsion
• Rear Shock Body Diameter: 2 IN
• Recommended Aftermarket Tires: 33" x 11.25" (Larger tires may fit but fender trimming and modifications will be required.)
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5” Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5” Backspace / 0mm Offset

Attributs

• Increased wheel travel and ride quality over stock
• CNC machined 6061 aircraft-grade aluminum components
• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
• Bolt-on design makes for straightforward install
• Decreased body roll
• Vehicle-specific tuned front and rear shocks provide superior damping and control
• Coilovers are adjustable from 0-3" of lift height
• ICON engineered rear coils provide 1" of lift and improved performance
• Shocks are fully rebuildable and revalveable
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• FK Rod End bearings for extended longevity and minimal deflection

Note:
