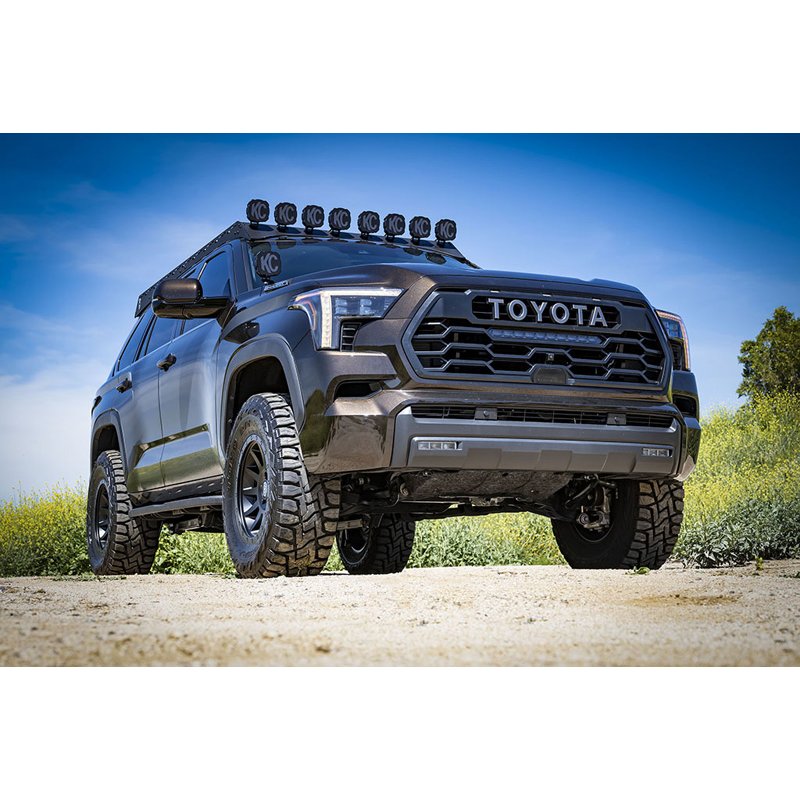

ICON | 3-4.5" STAGE 8 SUSPENSION SYSTEM BILLET (TRD) - Sequoia 3.4T 2023-2025

ICON - Suspension Lift Kit

Description

The ICON Vehicle Dynamics Stage 8 complete suspension system for the 2023-2025 Toyota Sequoia helps to free up the rear suspension movement while gaining strength and ground clearance with the addition of ICON billet aluminum rear lower links. This system offers improved on- and off-road performance, with significantly increased rear shock performance and heat dissipation, as well as improved alignment specs and increased front-end lift height range for a proper stance and fitment of up to 35" tires. To compliment the billet aluminum rear lower links, a 2.5 Series remote reservoir front coilover shock and billet aluminum front upper control arm combo is included along with a front sway bar drop kit, dual rate rear coil springs and 2.5 Aluminum Series rear remote reservoir shocks.

Characteristics

• 2064: Steel
• 2371: Yes
• 30: Yes
• 3096: Black
• 3097: Yes
• 3390: Performance
• 5520: 4.5 IN
• 7325: 2
• 7326: 2
• 9271: Linear
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Active or Passive Suspension: Passive
• Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
• Add-On Part: 191013 - NIPPLE GREASING ADAPTER KIT
• Add-On Part: 191014 - .25" COLLAR SPANNER PIN WRENCH
• Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
• Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
• Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
• Add-On Part: 55156 - 22-25 TUNDRA/23-25 SEQUOIA/24-25 GX550 DIFF DROP KIT
• Add-On Part: 55164 - 22-25 TUNDRA/23-24 SEQUOIA ALUMINUM SKID PLATE SPACER KIT
• Adjustable Compression: No
• Adjustable Control Arm: Yes
• Adjustable Damping: No
• Adjustable Rebound: No
• Coil Quantity Front: 2
• Front Reservoir Style: Remote
• Front Shock Body Diameter: 2.5 IN
• Maximum Lift Front: 4.5 IN
• Maximum Lift Rear: 4 IN
• Minimum Lift Front: 3 IN
• OEM Wheels & Tires Fitment: Yes
• Rear Reservoir Style: Remote
• Rear Shock Body Diameter: 2.5 IN
• Rear Spring Rate Type: Progressive Dual Rate
• Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6” Backspace / 25mm Offset
• Reservoir Style: Remote

Attributs

• Vehicle specific design for 2023-2025 Toyota Sequoia
• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• Adjustable front ride heights from 3-4.5” of front lift over stock
• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Included sway bar drop brackets reduce bind in OE sway bar links
• Allows for full wheel travel without overstressing OE components
• Dual rate rear coil springs improve performance and ride quality while providing 2" or 4" of rear lift, depending on the vehicle's stock suspension package
• Billet rear lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
• 2.5 Aluminum Series rear remote reservoir shocks provide increased performance and balanced tune with coilovers
• All ICON shock absorbers are fully rebuildable and re-tunable
