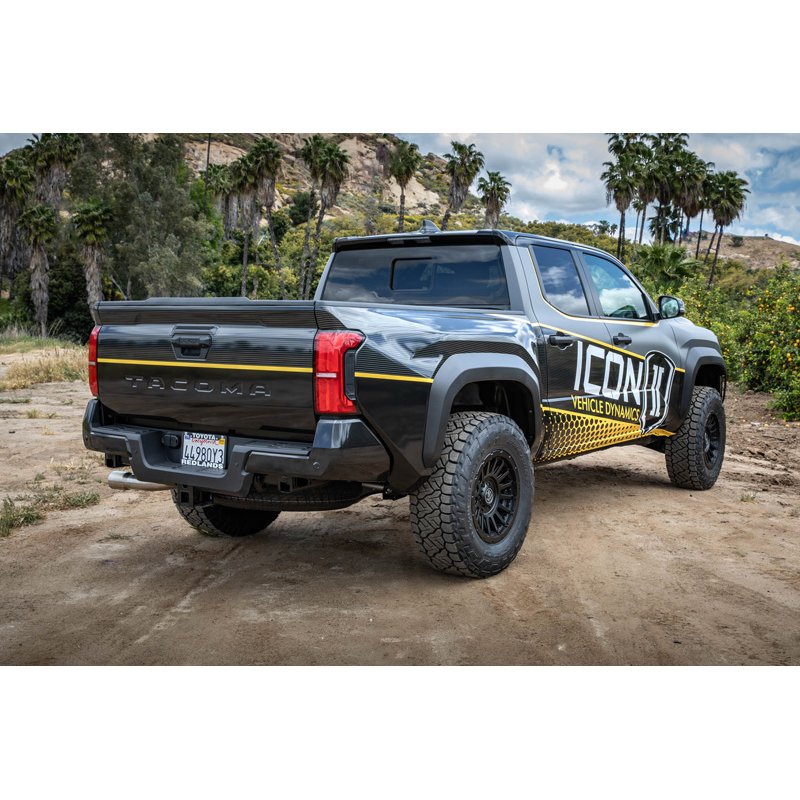

ICON | 1.25-3" STAGE 3 SUSPENSION SYSTEM BILLET OVERLAND REAR COILS - Tacoma 2.4T 2024-2025

ICON Vehicle Dynamics – Stage 3 Billet Overland Rear Coils Remote Reservoir Suspension System

Description

The ICON K53293X Stage 3 suspension system is designed for the Toyota Tacoma 2.4T and provides 1.25-3" adjustable front lift via 2.5 Series remote reservoir coilovers. Billet 6061 aluminum UCAs with Delta Joint PRO allow on-vehicle camber and caster adjustment and maximize suspension travel without bind. Rear 2.0 Aluminum Series remote reservoir shocks (5/8" shaft) and dual-rate progressive Overland rear coil springs complete this fully remote-reservoir Stage 3 system. Front differential drop brackets and polyurethane differential mounting bushings are included.

Specifications

• Brand: ICON Vehicle Dynamics
• Part Number: K53293X
• Compatibility: Toyota Tacoma 2.4T 4WD (See Application Section)
• Front lift: 1.25-3" adjustable
• Rear lift: ~0.5"
• Front coilovers: 2.5 Series remote reservoir, 2.5" body, 7/8" shaft
• Rear shocks: 2.0 Aluminum Series remote reservoir, 5/8" shaft
• Billet 6061 aluminum UCAs with Delta Joint PRO (90° articulation, rebuildable)
• On-vehicle camber and caster adjustment via double adjuster sleeve
• Dual-rate progressive Overland rear coil springs included
• Front differential drop brackets included
• Condition: New
• Sold and shipped by GBP Performance
