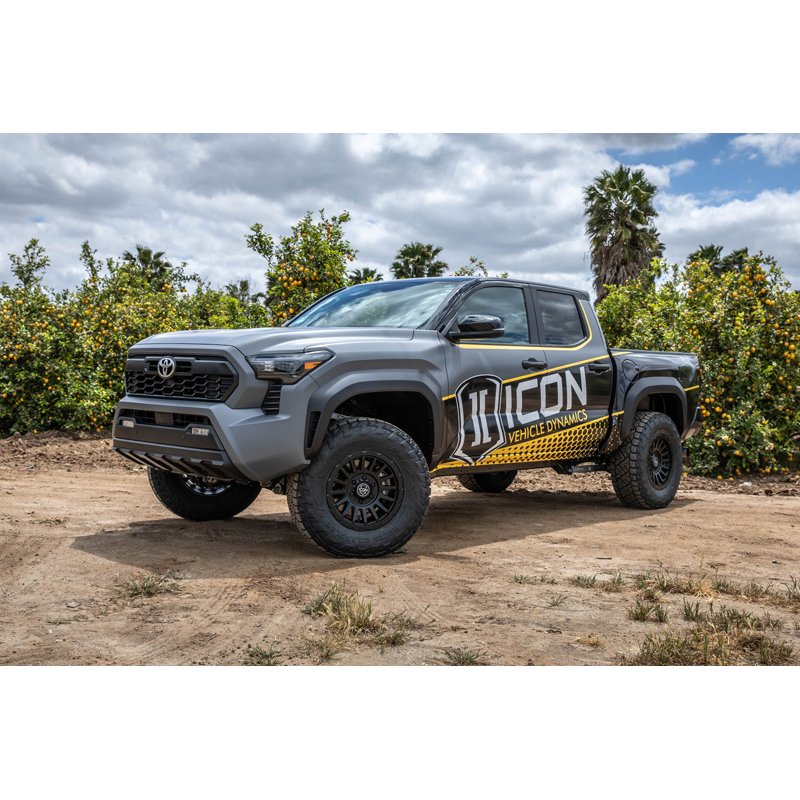

ICON | 1.25-3" STAGE 5 SUSPENSION SYSTEM BILLET - Tacoma 2.4T 2024-2025

ICON Vehicle Dynamics – Stage 5 Billet CDCV Suspension System

Description

The ICON K53295 Stage 5 suspension system, the most complete in the Tacoma 2.4T lineup, features 2.5 Series CDCV remote reservoir front coilovers (1.25-3" adjustable lift) and 2.5 Aluminum Series CDCV remote reservoir rear shocks. The CDC (Compression Damping Control) Valves provide 10 levels of external compression damping adjustment, from soft to hard. Billet 6061 aluminum UCAs with Delta Joint PRO allow on-vehicle camber and caster adjustment. Front differential drop brackets and polyurethane differential mounting bushings are included. CNC machined 6061 aluminum components throughout.

Specifications

• Brand: ICON Vehicle Dynamics
• Part Number: K53295
• Compatibility: Toyota Tacoma 2.4T 4WD (See Application Section)
• Front lift: 1.25-3" adjustable
• Front coilovers: 2.5 Series CDCV remote reservoir, 2.5" body, 7/8" shaft
• Rear shocks: 2.5 Aluminum Series CDCV remote reservoir, 7/8" shaft
• Damping adjustment: 10 levels manual compression (CDC Valves)
• Billet 6061 aluminum UCAs with Delta Joint PRO (90° articulation, rebuildable)
• On-vehicle camber and caster adjustment via double adjuster sleeve
• Front differential drop brackets included
• Polyurethane differential mounting bushings included
• Condition: New
• Sold and shipped by GBP Performance
