Mahle Motorsport | Engine Piston Kit -

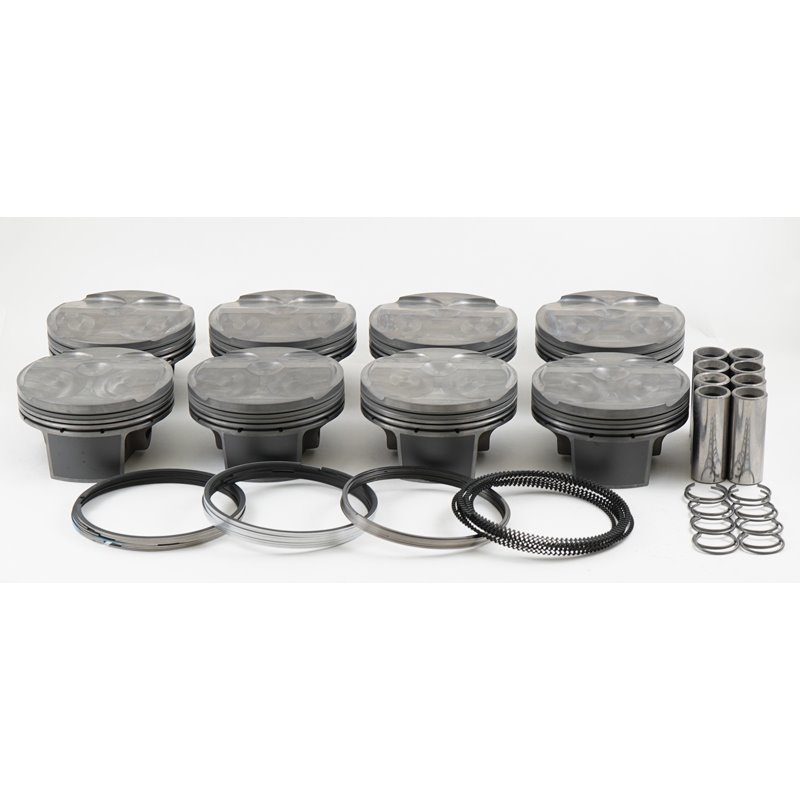

Mahle Motorsport – Engine Piston Kit

Description

MAHLE Motorsports M142P forged piston for Ford 5.2L Voodoo. Drop-in forged replacement assembly – no balancing required, no compression ratio change. Dome style with 4 valve reliefs. Over 90 years of racing heritage and technology.

Specifications

• Brand: Mahle Motorsport
• SKU: 930258401
• Application: Ford 5.2L Voodoo (Mustang Shelby GT350)
• Displacement: 315ci
• Bore: 3.701 in.
• Compression Height: 1.161 in.
• Stroke: 3.661 in.
• Rod Length: 5.933 in.
• Pin Diameter: 0.827 in.
• Crown Volume: +7.8cc
• Piston Mass: 380g
• Compression Ratio: 12.0:1
• Material: Forged M142P
• Coatings: Phosphate + Grafal + Hard Anodized top ring groove
• Piston Style: Dome, w/ 4 valve reliefs
• Package Qty: Set of 8
• Pins Included: Yes | Rings Included: Yes | Clips Included: Yes
• Ring Thickness: 1.0mm / 1.2mm / 2.0mm
• Condition: New
• Sold and shipped by: GBP Performance
