ICON | 24 TACOMA 2.5 VS IR COILOVER KIT - Tacoma 2.4T 2024-2025

ICON Vehicle Dynamics – 2.5 VS IR Front Coilover Kit

Description

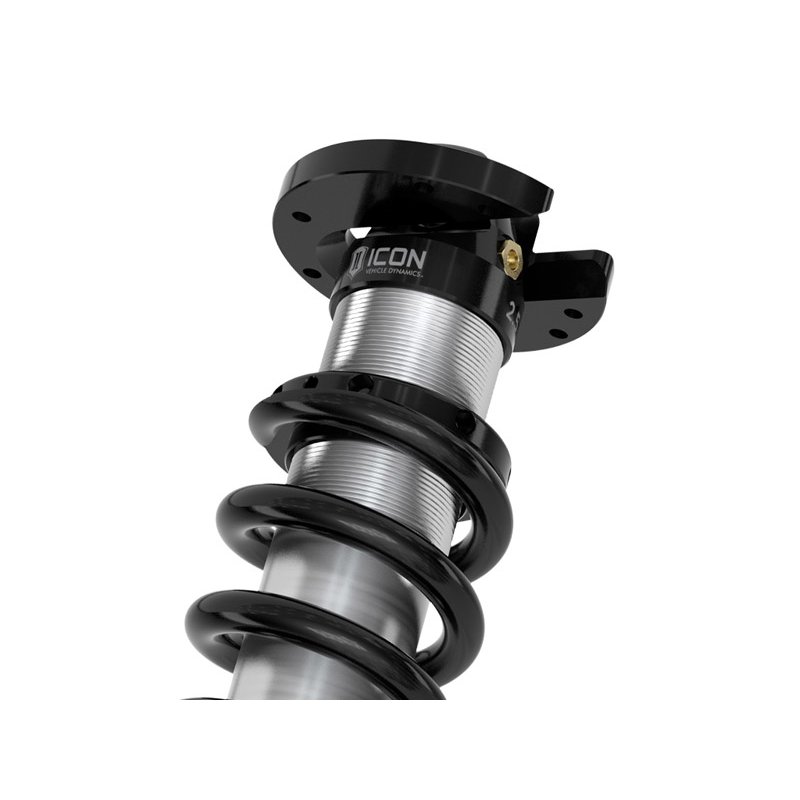

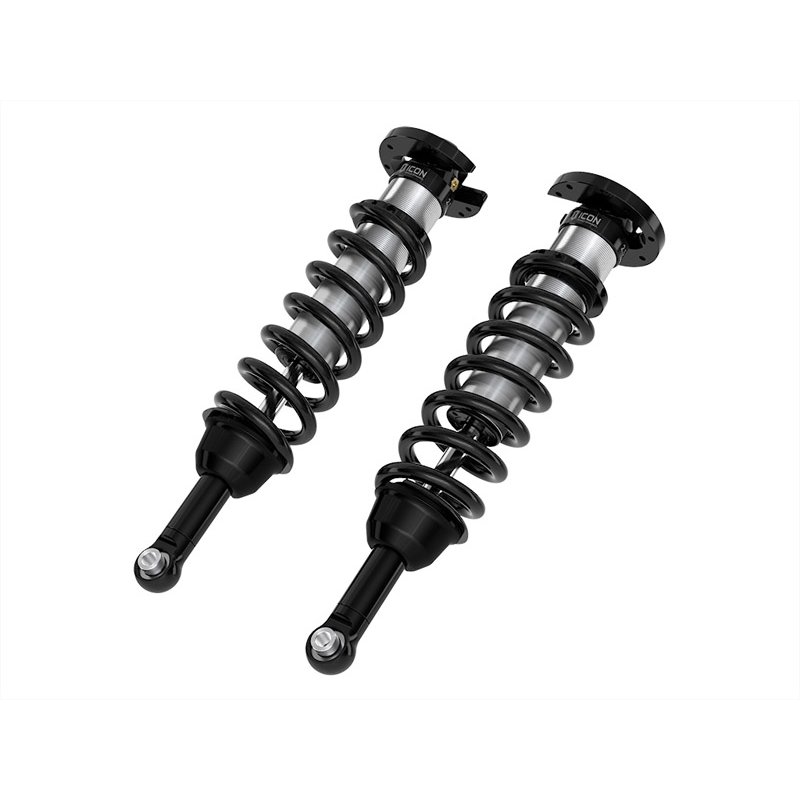

The ICON Vehicle Dynamics 58680 2.5 Series internal reservoir (VS IR) front coilover kit is a significant upgrade for the Toyota Tacoma. These adjustable coilovers allow 1.25-3" of lift height adjustment over stock, enabling larger and more aggressive wheel and tire combinations. The large 2.5" shock body provides increased piston surface area over stock components. Vehicle-specific shock length and valving, combined with an ICON front differential drop (4WD only), maximize wheel travel and improve ride quality. Built from CNC machined 6061 aircraft-grade aluminum with CAD-plated corrosion-resistant shock bodies and 7/8" diameter shafts, these shocks are fully rebuildable and re-tunable. ICON engineered coil springs and FK rod end bearings complete the assembly.

Specifications

• Brand: ICON Vehicle Dynamics
• Part Number: 58680 (See Application Section)
• Fitment: Toyota Tacoma L4 2.4L Turbo
• Body Diameter: 2.5"
• Reservoir: Internal (IR)
• Damping Type: Oil
• Material: 6061 Aluminum / Steel
• Shaft: 7/8" (0.875"), CAD plated corrosion resistant
• Springs: Included (ICON engineered linear, black)
• Lift Range: 1.25" to 3" adjustable
• Fully rebuildable and re-tunable
• Installation: bolt-on installation
• Condition: New
• Sold and shipped by GBP Performance
