Bilstein | B8 8100 Bypass Shock Absorber Rear Right - GX460 / GX470 / 4Runner 2003-2023

Bilstein – B8 8100 Rear Right Bypass Shock Absorber

Description

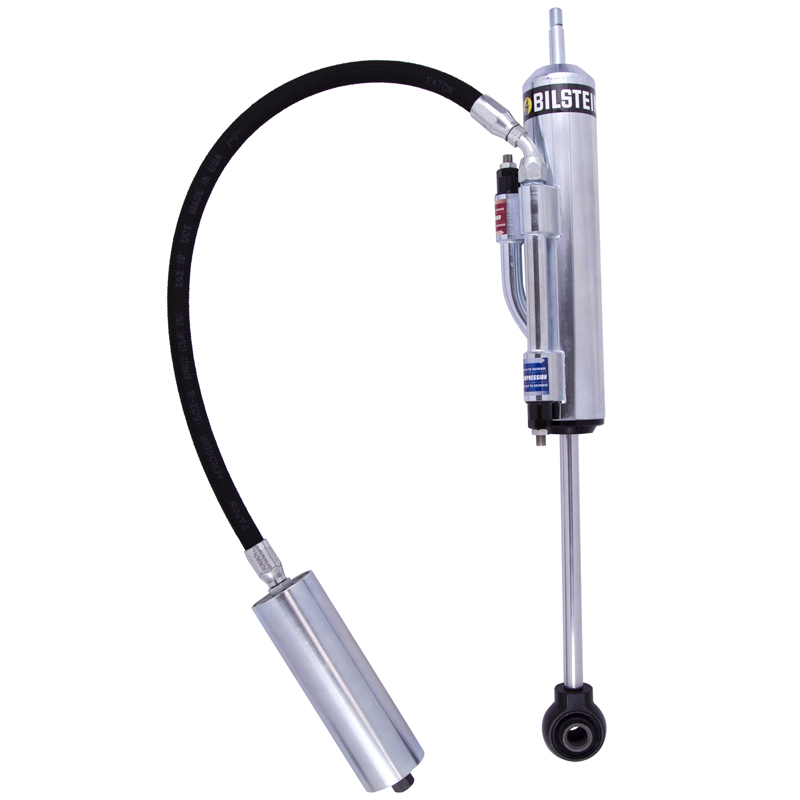

The Bilstein B8 8100 (Bypass) is a direct-fit, position-sensitive shock absorber for light trucks and SUVs. Motorsports-inspired, it uses an externally adjustable dual-tube bypass design. The "Incremental Flow" adjusters allow finite, incremental changes for rebound and compression. The bottom hose remote reservoir exit port delivers increased compression control throughout the full cycle. The anodized aluminum remote reservoir mount is included for bolt-on installation. Maximum performance and exceptional off-road control.

Specifications

• Part Number: 25-284591
• Series: B8 8100 (Bypass) | Position: Rear Right
• Internal Design: Monotube | Bypass body (non-coilover)
• Body Diameter: 60mm | Finish: Zinc Plated
• Damping: Double Adjustable (compression + rebound)

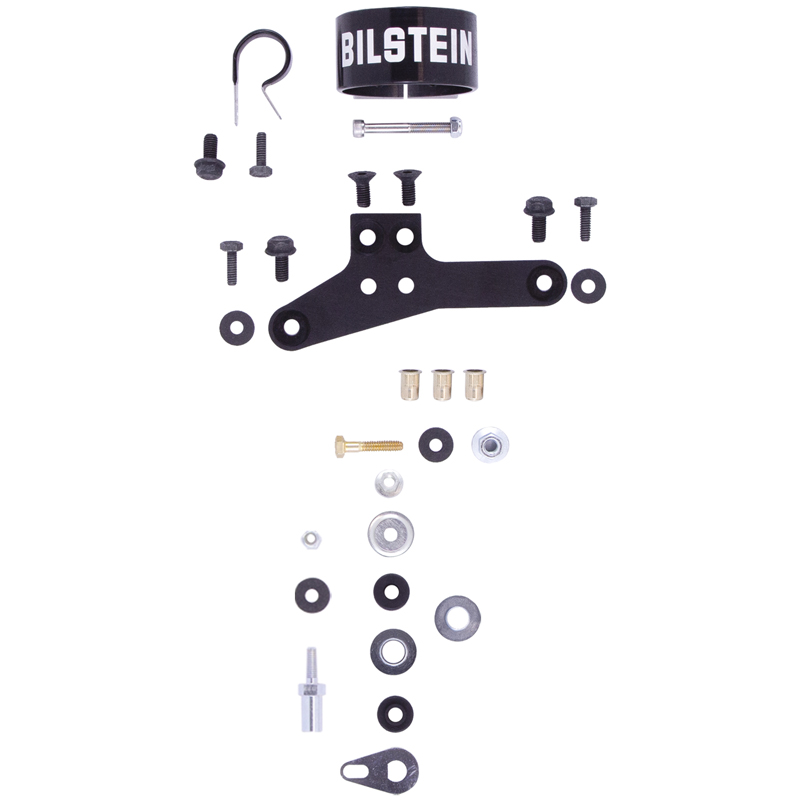

• Remote reservoir included (anodized aluminum mount)
• Collapsed Length: 374.0mm (14.72 in)
• Extended Length: 612.0mm (24.09 in)
• Lower Mount: Eye 19.3mm | Upper Mount: Stem
• Compatibility: 0.5-2.5" rear lift depending on trim (See Application Section)
• Condition: New | Sold and shipped by GBP Performance
