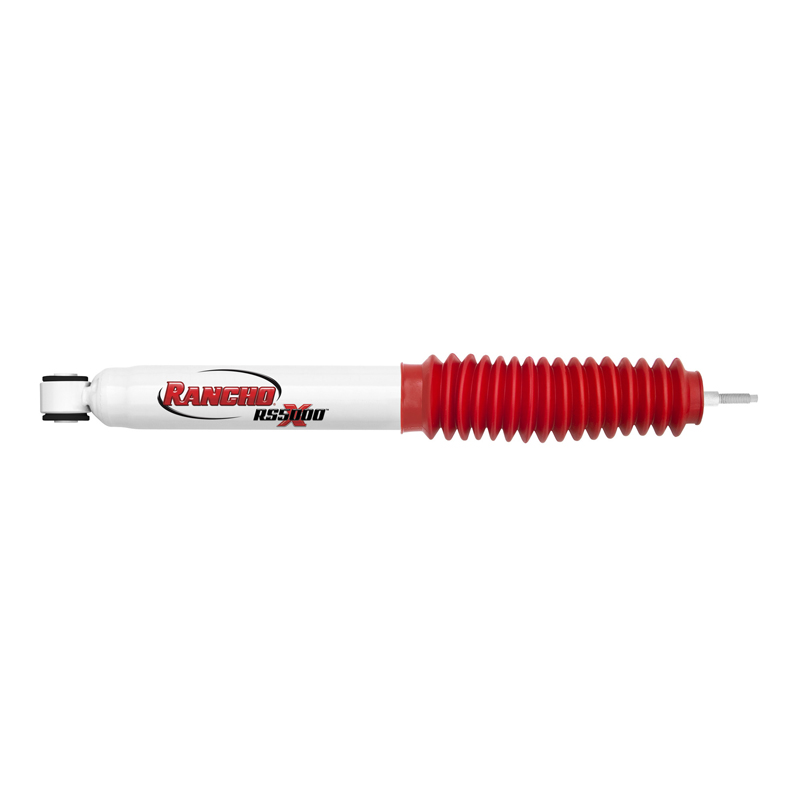

Rancho | RS5000X Suspension Shock Absorber - Frontier 2.4L / 2.5L / 3.3L 2000-2004

Rancho - Suspension Shock Absorber

Description

Featuring a unique, exclusive valving system and advanced compression functionality, Rancho® RS5000™X shocks deliver improved overall on- and off-road handling and performance.

Characteristics

• Lower Mount Code: LS23
• Upper Mount Code: S4
• Dust Shield Included: Yes
• Includes Bump Stop: No
• Internal Rebound Bumper: No
• Hydraulic Lockout: No
• Part Description: Shock Absorber
• Adjustable Damping: No
• Finish: Painted
• Grade Type: Performance
• Shock Absorber Bore Size: 30 MM
• Body Diameter: 1.751
• Compressed Length: 9 IN
• Extended Length: 13.84 IN
• Gas Charged: Yes
• Lower Mount Type: Loop Bushing and Sleeve Mount - 12MM Sleeve ID X 1.1/4" Sleeve OAL
• Parts Pack(s): P01134
• Travel Length: 4.84 IN
• Upper Mount Type: Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch

Attributs

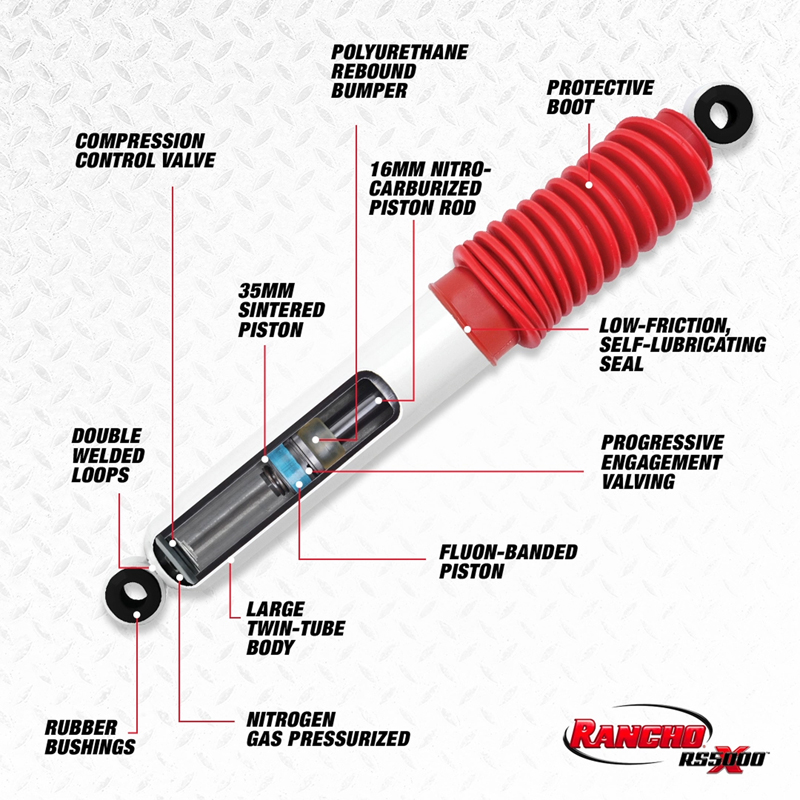

• IMPROVED HANDLING AND PERFORMANCE -- Cross Tuned technology featuring exclusive rebound valving system and advanced compression phase improves overall handling and performance on and off road
• MINIMIZES ROUGH RIDE -- Exclusive Progressive Engagement Valving is custom-tuned for each vehicle to help reduce initial impacts at low speeds and minimizes a rough ride
• STRONG AND DURABLE -- Features a 16mm nitro-carburized piston rod to resist scuffs & corrosion, double-welded loops at stress areas, 35mm sintered iron piston for enhanced structural integrity and polyvinyl protective boot
• HANDLES EXTREME TEMPERATURE CHANGES -- Large twin-tube body filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248°F
• SMOOTH PERFORMANCE -- Polyurethane rebound bumper and rubber bushings help absorb ride harshness while the fluon-banded piston enhances responsiveness to changing road conditions for an overall smoother ride
• REDUCES FADE -- Nitrogen gas pressurized to 150 PSI to minimize air-to-oil mixture to reduce damping performance fade and foaming
• MAINTAINS VEHICLE CONTROL -- Compression Control Valve is custom-tuned for each vehicle to regulate fluid transfer to absorb impacts without disc flutter and help maintain shock motion control
• BUILT TO LAST -- Low-friction, self-lubricating seal retains gas and oil for quicker rebound and smoother compression while the application-specific piston delivers heightened control of shock motion due to the expanded piston area
• BUY WITH CONFIDENCE -- Comes with Rancho’s Limited Lifetime Warranty

Note:
