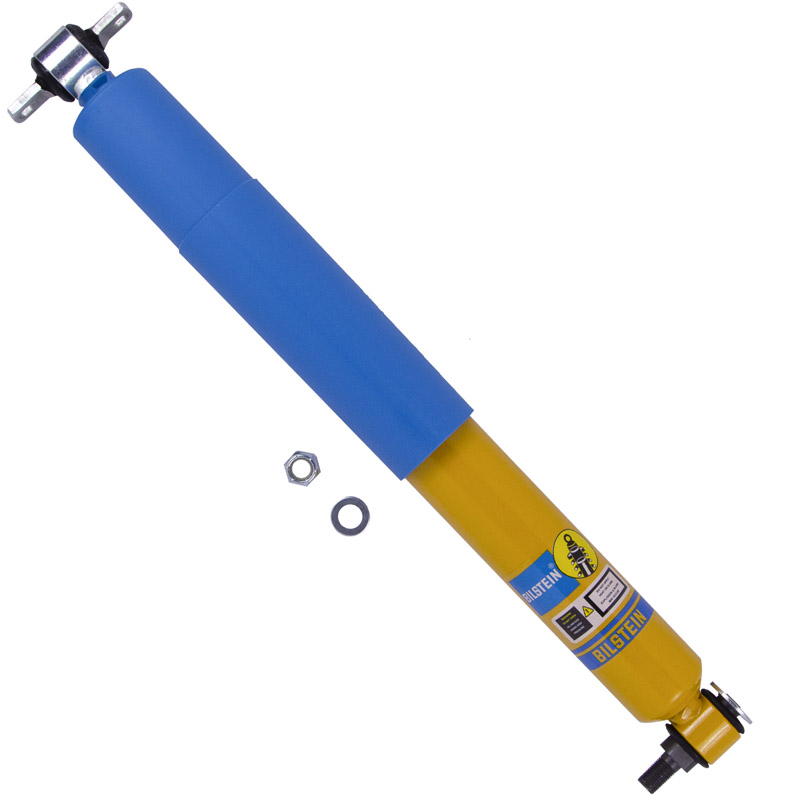

Bilstein | AK Series - Suspension Shock Absorber - Monte Carlo / GTO 1968-1988

Bilstein – AK Series

Description

The Bilstein AK Series shock absorber (ref. 24-291699) is a 46mm monotube shock designed for motorsports applications requiring OE mounting components. Featuring steel spring valve discs and a linear piston, it delivers consistent, fade-free performance. Race-winning valve settings for optimum weight transfer, feel, and grip. Upper Bar Pin mount, lower Cantilever mount. Yellow paint, blue straight boot. Compatible with Chevrolet Monte Carlo and Pontiac GTO. (See Application Section)

Specifications

• Reference: 24-291699
• Brand: Bilstein
• Series: AK Series
• Type: 46mm Monotube Shock Absorber
• Upper Mount: Bar Pin
• Lower Mount: Cantilever
• Collapsed Length: 333.0mm (13.11 in)
• Extended Length: 515.0mm (20.28 in)
• Compression @0.26m/s: 630 N | @0.52m/s: 1035 N
• Rebound @0.26m/s: 1130 N | @0.52m/s: 2135 N
• Boot Included: Blue Straight
• Finish: Yellow Paint
• Condition: New
• Sold and shipped by GBP Performance
