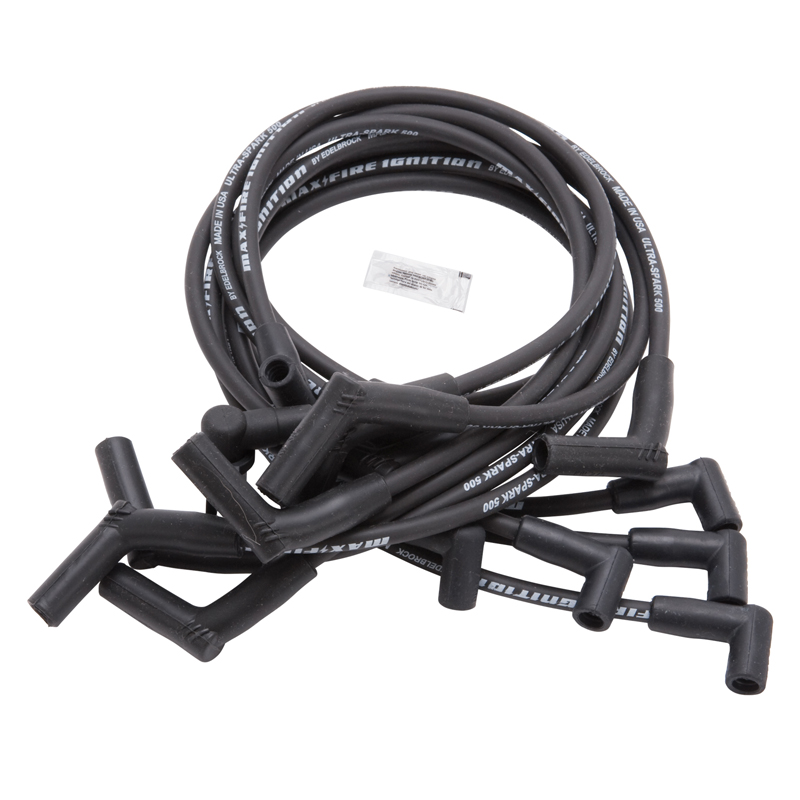

Edelbrock | Spark Plug Wire Set - Mustang 4.9L 1984-1995

Edelbrock - Spark Plug Wire Set

Description

The Edelbrock #22704 Max-Fire Ultra-Spark 500 Performance's Spark plug wires are manufactured from highest quality materials to help deliver maximum voltage ensuring the ultimate performance. These wires have an extremely high EMI/RFI suppression along with a very low resistance to help deliver the most spark possible. They feature a heavy duty 8.5mm diameter silicone jacket to protect the Kevlar spiral wound core from heat, moisture and chemicals. Ultra-Spark 500 is a great choice for replacing OEM wires and are value priced. They feature high quality leads that deliver 500 ohms of EMI/RFI noise suppression with low resistance. They are ideal for daily drivers and for budget builds, offering the best combination of value and performance. See application chart for engine or vehicle specific kits.

Characteristics

• Outside Diameter: 8.5 MM
• Distributor Coil End Terminal Type: HEI
• Distributor Coil End Boot Type: HEI
• Wire 3 Length: 24.0 IN
• Wire 6 Length: 33.0 IN
• Spark Plug End Boot Degree: 90
• Spark Plug End Terminal Type: Standard
• Resistance: 500
• Distributor Coil End Boot Degree: 90
• Wire 2 Length: 23.0 IN
• Wire 7 Length: 33.0 IN
• Coil Wire Length: 16.0 IN
• RGL: WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
• Wire Separators Included: No
• Coil End Boot Color: Black
• Spark Plug End Boot Quantity Angled: 8
• Insulation Color: White
• Insulation Material: Inner Insulation
• Spark Plug End Boot Color: Black
• Spark Plug Wire Resistance: 500
• Insulation Outside Diameter: 0.23 IN
• Wire 1 Length: 23.0 IN
• Wire 4 Length: 27.0 IN
• Wire 5 Length: 33.0 IN
• Wire 8 Length: 39.0 IN
• Core Material: Magnetic Kevlar Core
• Noise Suppression Type: No
• Spark Plug Boot Material: Compact Silicone
• Universal Or Specific Fit: Specific
