Garrett | GTX3071R Gen II 54mm Supercore

Garrett | GTX3071R Gen II 54mm Supercore

Supercore

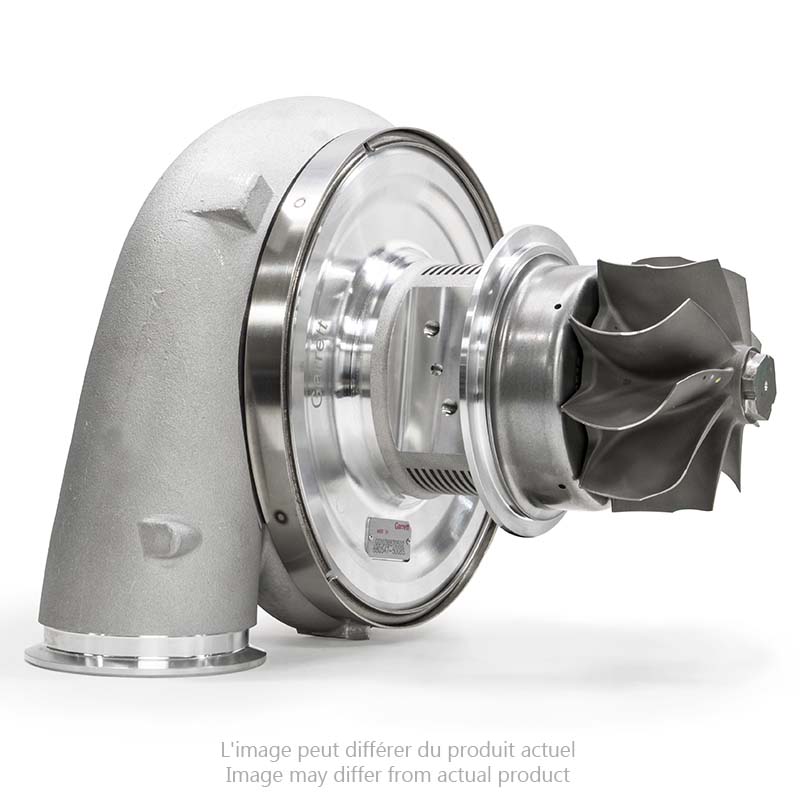

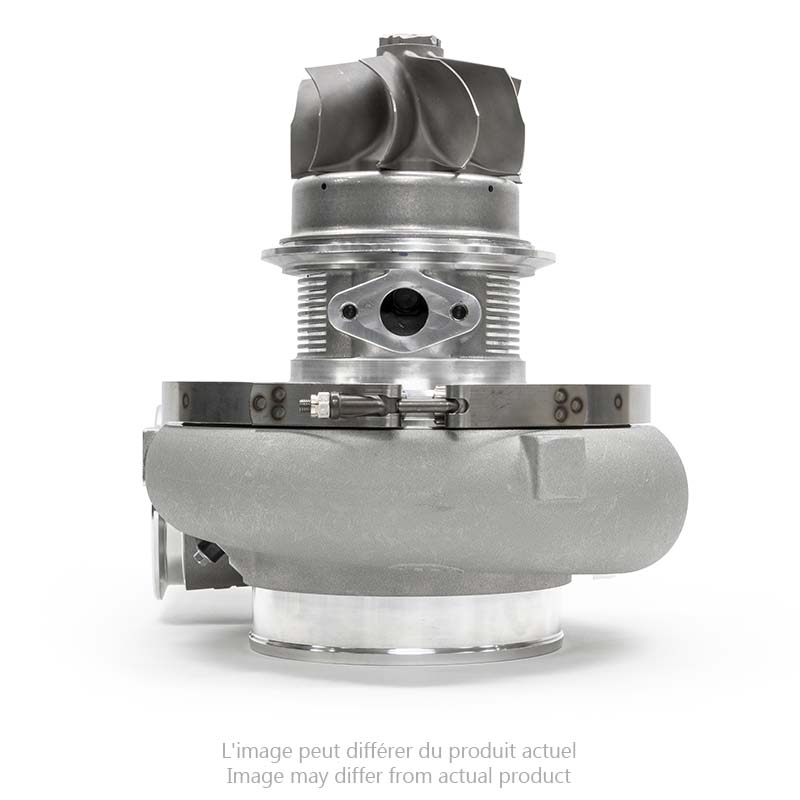

Supercore refers to a rotating assembly with compressor housing attached. Gasket kit included. Turbine housing not included.

Garrett GTX Series

Garrett GTX Series turbochargers are designed specifically for the hard-core enthusiast who wants optimal performance. The forged fully-machined billet aluminum compressor wheels feature next generation aerodynamics that provides a larger horsepower range and maximize boost response. Ported shroud compressor housings increase surge resistance and provide reliable, continuous power throughout the power band.

A dual ceramic ball bearing cartridge prolongs the lifespan and improves shaft balance. The water cooled CHRA keeps housing temperatures to a minimum. The turbine wheel is constructed from Inconel, a super alloy that maintains strength during prolonged exposure to high exhaust gas temperatures.

Turbine kits are offered in open volute and twin scroll, and a variety of A/R and flange configurations. GTX Series turbochargers are used by today’s top motorsports teams and are ready to boost you to the podium or wherever your destination may be.

Gen II Products Updated Features

• Gen II compressor aerodynamics for increased horsepower range (GTX28/30/35/47/50/55)
• Fully machined speed sensor port for data acquisition (GTX28/30/35/47/50/55)
• Lightweight aluminum backplate for weight reduction (GTX47/50/55)

Features

• Part Type: Supercore
• Serie: GTX30 Gen II
• Horsepower Range: 340-675
• Displacement Range: 1.8L-3.0L
• Turbo Rotation: Standard
• Turbo Wheel Bearing: Ceramic Dual Ball Bearing
• Compressor Inducer: 54mm
• Compressor Exducer: 71mm
• Compressor Trim: 58
• Compressor A/R: 0.60
• Turbine Inducer: 60mm
• Turbine Exducer: 55mm
• Turbine Trim: 84

Note:
