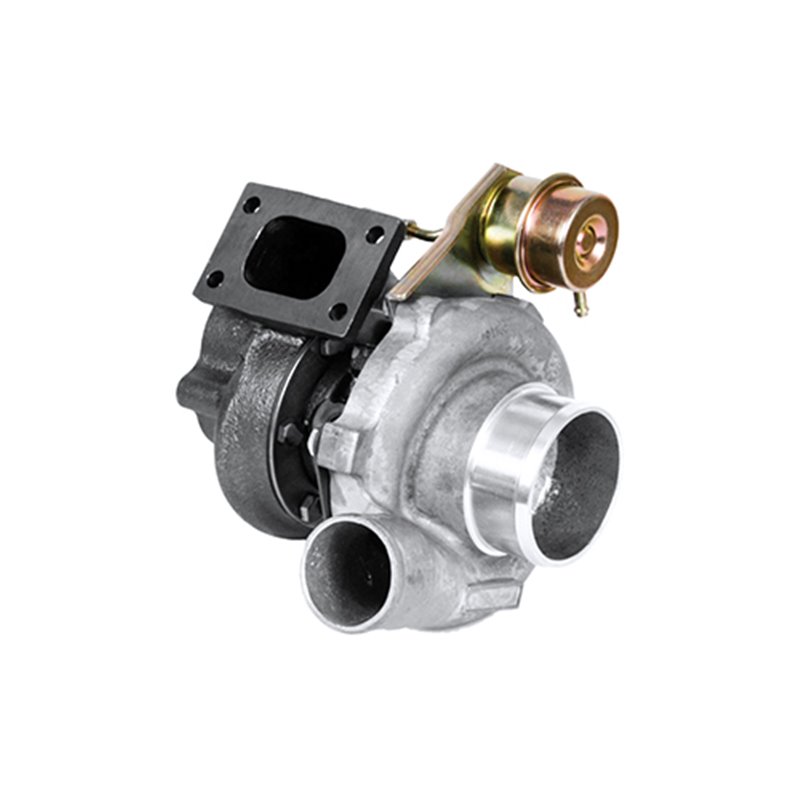

Garrett | GT2860RS 47mm Full Turbo - 0.64 A/R

Garrett | GT2860RS 47mm Full Turbo - 0.64 A/R

Full Turbo

Supercore and turbine housing are fully assembled and calibrated by Garrett with a 0.5 Bar actuator. The assembly and calibration make it a Turbo. Only offered with internally wastegated turbine housings. Gasket kit is included.

Garrett GT Series

Garrett GT Series is the name that pioneered turbo technology and boosted drag racing and road racing teams to break hundreds of world records. The GT Series lineup is offered in both journal and ball bearing options, with sizes ranging from GT2052 to GT3582.

The cast compressor wheels feature original GT Series aerodynamics and provide maximum durability and longevity. Internally wastegated turbine housing options are available in all GT Series sizes.

Turbine kits are offered in open volute and twin scroll, and a variety of A/R and flange configurations. For any performance need, GT Series turbochargers have you covered.

Features

• Part Type: Full Turbo
• Serie: GT28
• Horsepower Range: 250-360
• Displacement Range: 1.8L-3.0L
• Turbo Rotation: Standard
• Turbo Wheel Bearing: Ceramic Dual Ball Bearing
• Compressor Inducer: 47mm
• Compressor Exducer: 60mm
• Compressor Trim: 61
• Compressor A/R: 0.60
• Turbine Inducer: 54mm
• Turbine Exducer: 47mm
• Turbine Trim: 76
• Turbine A/R: 0.64
• Turbine Inlet: T25
• Turbine Outlet: V-Band
• Turbine Wastegate: Internal
• Turbine Divided: No
