Description

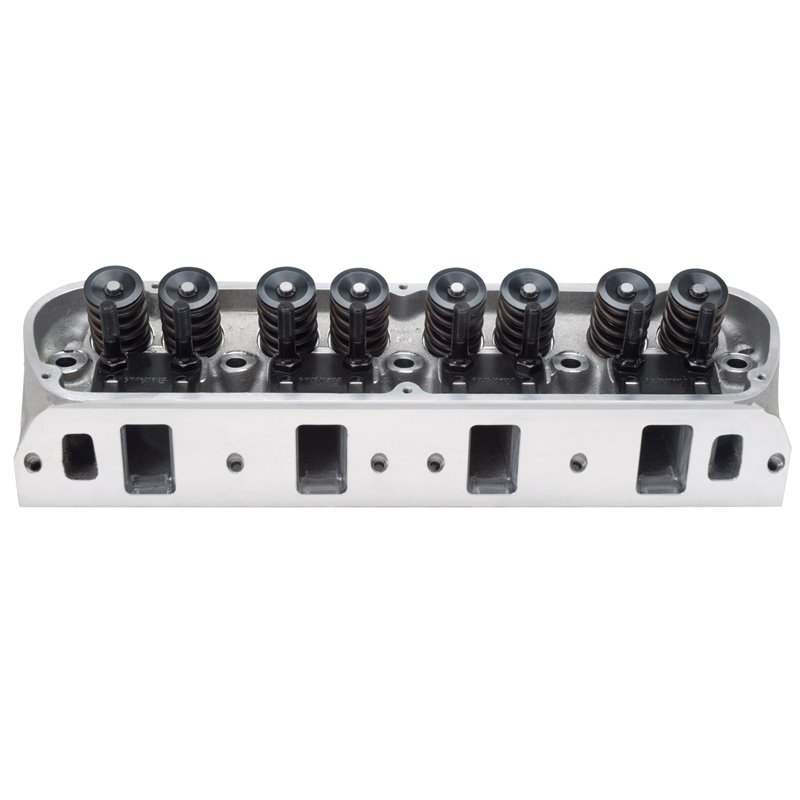

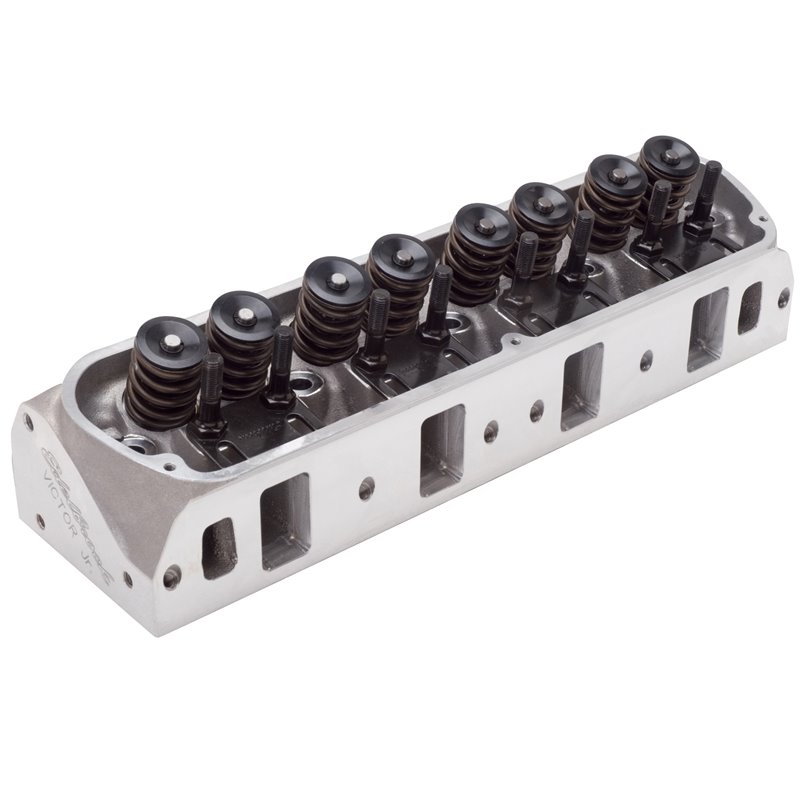

The Edelbrock 77189 Victor Jr. Small Block Ford cylinder head offers high horsepower potential on competition level engines and are compatible with OE valve train and pistons for bolt-on convenience., VICTOR JR. 20deg210cc FEATURES:, 500+ horsepower potential out-of-the-box using stock valve train geometry, High-flowing 210cc intake ports and .130" raised 75cc exhaust ports, Available with 60cc or 70cc combustion chambers, 70cc combustion chambers are ideal for turbocharged and supercharged applications, CNC gasket-matched port entries/exits with blended valve bowls, Spark plug holes and valves are in the stock location, Valve cover rail raised .150", A relief in the head allows most roller lifters to be changed without removing the head



Caracteristics

• Exhaust Port Location: +.125
• Exhaust Runner Volume: 75
• Series: Victor Jr.
• Material: Aluminum
• Family: Victor Jr.
• Quantity: Sold Individually
• Valve Stem Diameter: 0.3438
• Camshaft Type: Hydraulic Roller

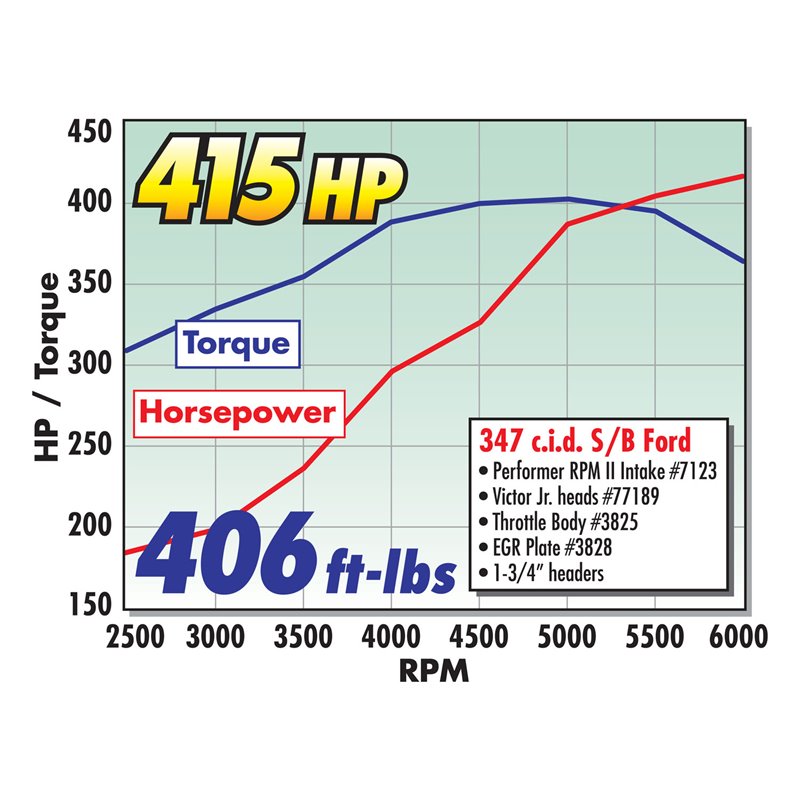

• Horsepower: 350-550
• Seat Material: Ductile Iron
• Retainer Included: Yes
• Grade Type: Performance
• Construction Type: Complete
• Push Rod Diameter: (Suggested) 0.3125
• Valve Included: Yes
• Deck Thickness: 0.625

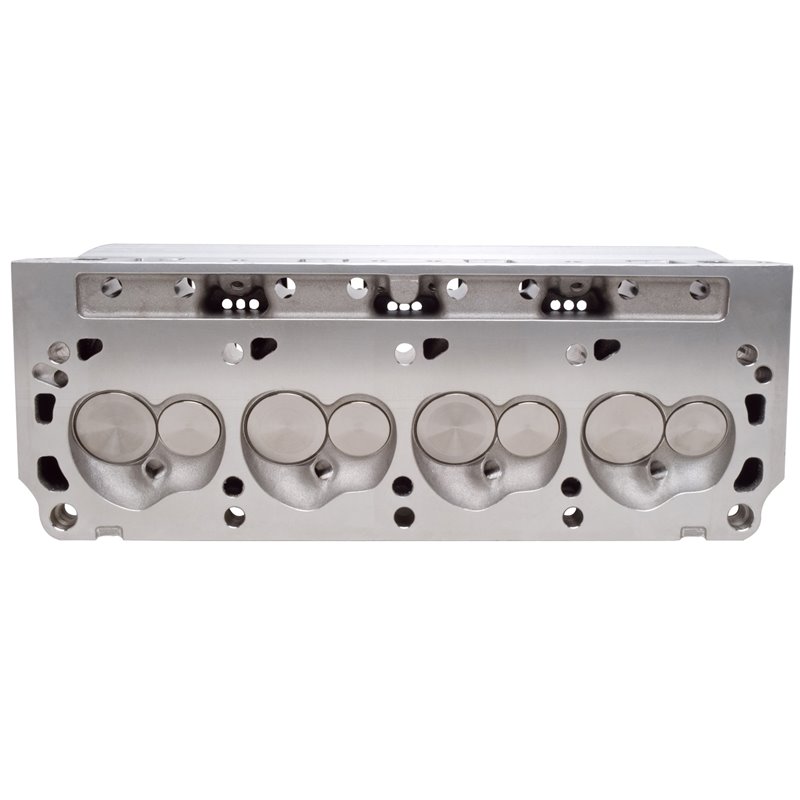

• Combustion Chamber Volume: 60
• Intake Runner Volume: 210
• Intake Valve Diameter: 2.05
• Exhaust Valve Diameter: 1.60
• Valve Spring Diameter: 1.55
• Valve Spring Maximum Lift: 0.650
• Valve Angle: 20
• Rocker Stud Diameter: 0.4375
• Guide Plates Included: Yes
• Head Casting Number: N/A
• Guide Plate Material: Hardened Steel
• Seat Angle: Exhaust 45 deg/Intake 45
• EGR Port: No
• Valve Springs Included: Yes
• CNC Ported: No
• Guide Material: Manganese Bronze
