Edelbrock | Engine Cylinder Head

Edelbrock - Engine Cylinder Head



Description

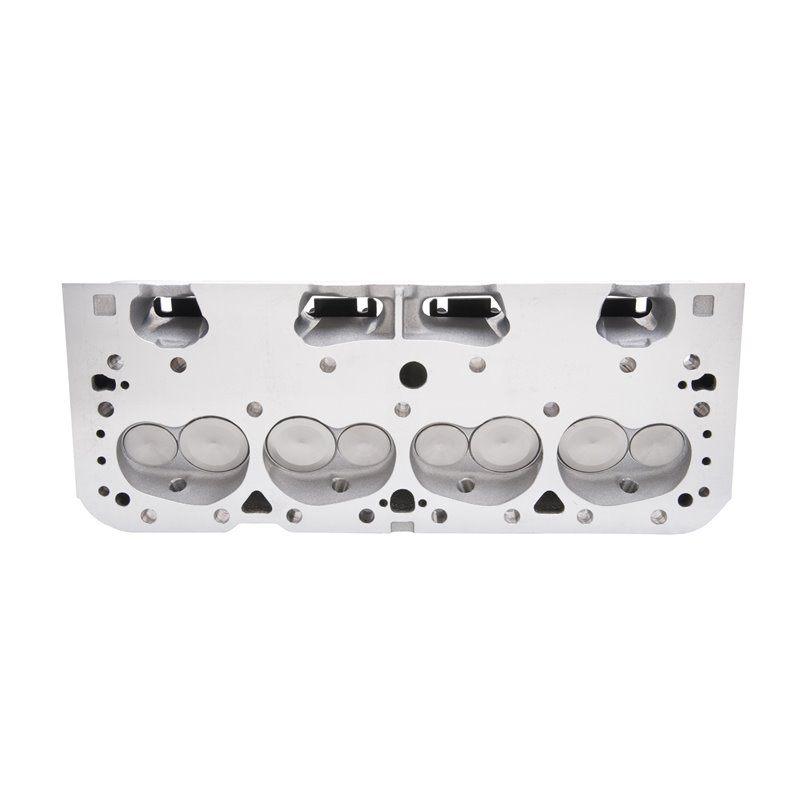

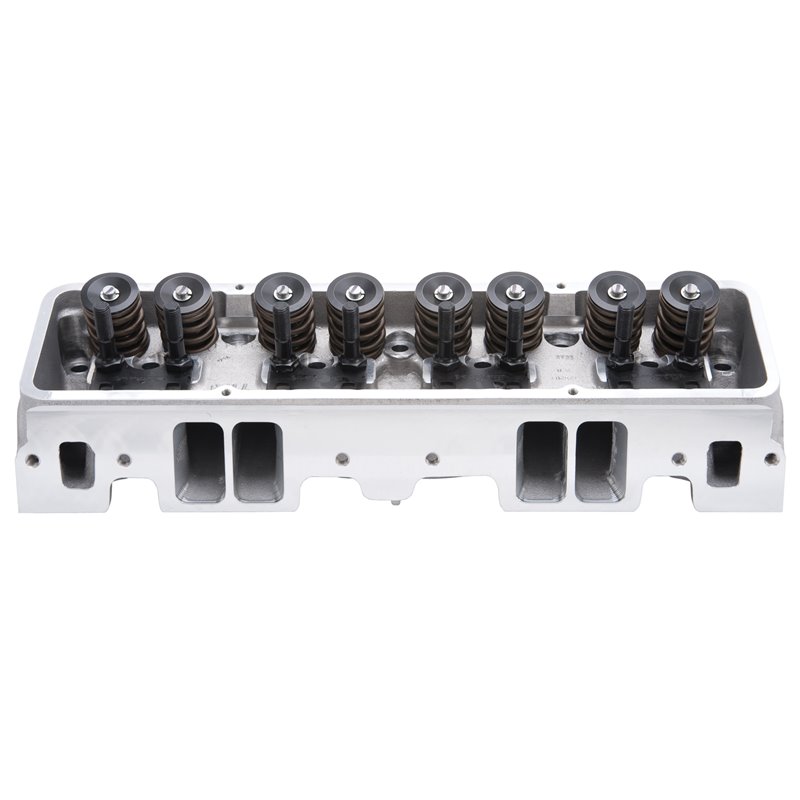

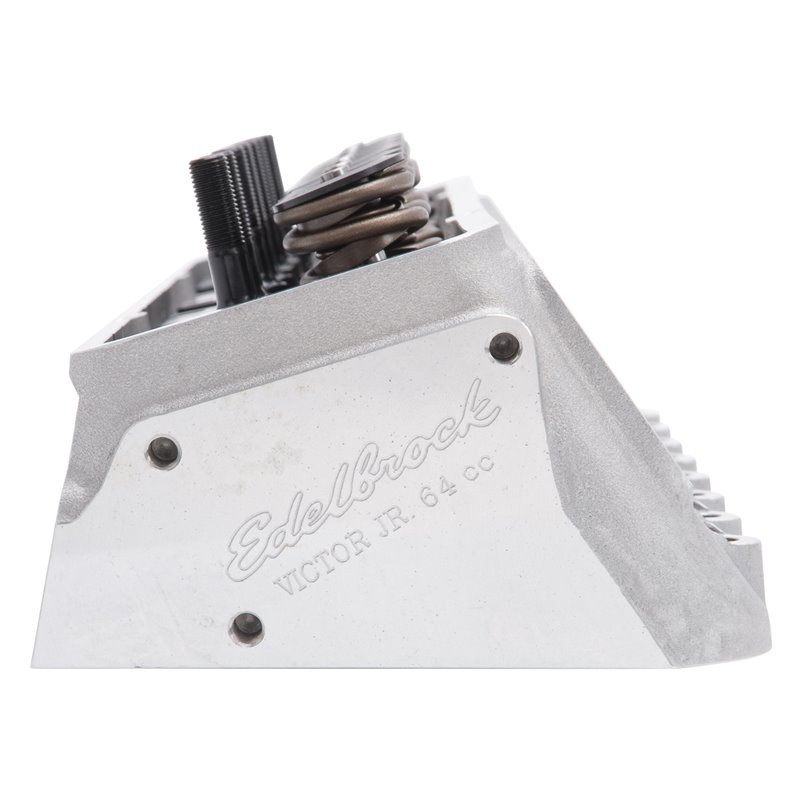

The Edelbrock part #77589 Small Block Chevy Victor Jr. 215cc cylinder head is an affordable version that will still allow for maximum power when used in competition and ultra high-performance's street applications. This cylinder head has the potential of 530-580 hp out-of-the-box, for a cost effective, race-winning set-up. These cylinder head features angled spark plug holes and accept standard 23deg valvetrain hardware. The 77589 cylinder head has a 64cc combustion chamber and come with springs for hydraulic roller camshafts. The 64cc chambers yield about 12.5:1 compression with a 12cc domed piston in a 350 V8.



Caracteristics

• Exhaust Port Location: +.125
• Exhaust Runner Volume: 85
• Series: Victor Jr.
• Material: Aluminum
• Family: Victor Jr.
• Quantity: Sold Individually
• Valve Stem Diameter: 0.3438
• Camshaft Type: Hydraulic Roller
• Horsepower: 450-550
• Seat Material: Ductile Iron
• Retainer Included: Yes
• Grade Type: Performance
• Construction Type: Complete
• Push Rod Diameter: (Suggested) 0.5625
• Rotor Center Bore Inside Diameter: Angled
• Valve Included: Yes
• Deck Thickness: 0.5625
• Combustion Chamber Volume: 64
• Intake Runner Volume: 215
• Intake Valve Diameter: 2.08
• Exhaust Valve Diameter: 1.60
• Valve Spring Diameter: 1.55
• Valve Spring Maximum Lift: 0.650
• Valve Angle: 23
• Rocker Stud Diameter: 0.4375
• Guide Plates Included: Yes
• Head Casting Number: N/A
• Guide Plate Material: Hardened Steel
• Seat Angle: Exhaust 45 deg/Intake 45
• EGR Port: No
• Valve Springs Included: Yes
• CNC Ported: No
• Guide Material: Manganese Bronze
