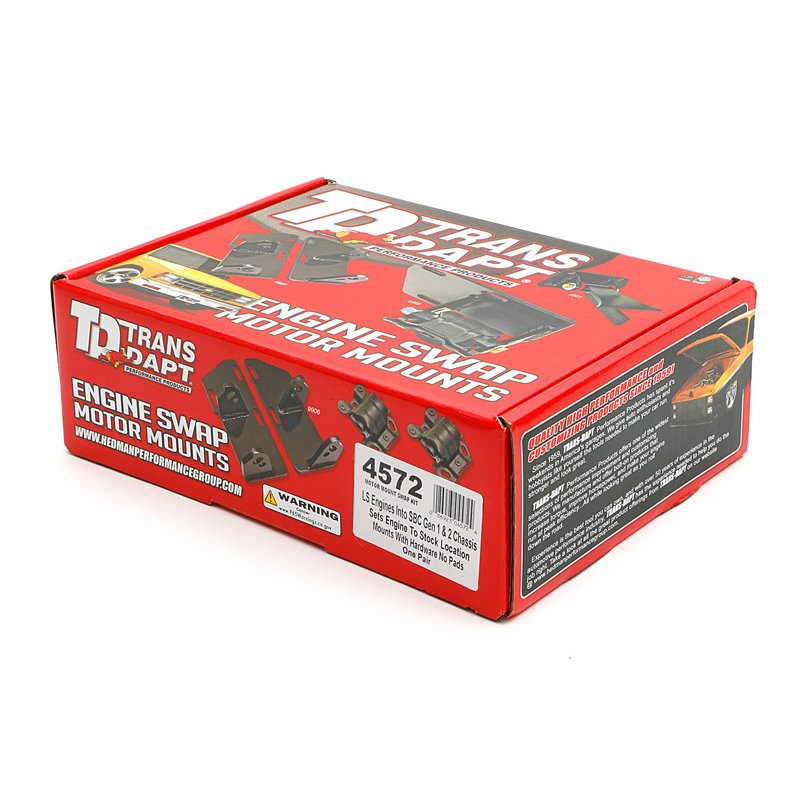

Trans-Dapt | GM LS ENGINE into SB CHEVY CHASSIS (Factory location)-Motor Mount Plates Only

Trans-Dapt - Engine Mount Bracket

Characteristics

• Additional Details: The engine sits in factory chassis location
• Air Conditioning: Yes
• Air Conditioning Notes: A passenger car A/C compressor is required. Truck A/C compressors will not work.
• Bracket Finish: Black Paint
• Bracket Included: Yes
• Contents: Frame Mounts and Mount Hardware. No Pads included. Use 4592 for full kit with pads.
• Dampening Type: Solid Steel
• Engine: Chevy LS Series
• Finish: Temporary Black Shipping Paint. This coating is not intended To Be Final Finish.
• Finish Type: Temporary Black Shipping Paint
• Installation Notes: The use of motor mount shims may be required to lift engine off crossmember. We recommend Trans-Dapt #4125 shims
• Kit Type: without PADS
• Mounting Hardware Included: Yes
• Product Details: Chevy LS Series 4.8, 5.3, 6.0L V8 into a vehicle set up for a Chevy SB V8.
• Uses Mount Pad #: Trans-Dapt #9525 or 4238
• Vehicle Family: Factory SB Chevy Chassis
• Wheel Drive Type: 2WD
• Additional Details: Sets engine 1 in. Forward. Not for use with clam-shell mounts (1974 or later)
• Bracket Finish: Black Paint
• Bracket Included: Yes
• Bushing Color: Red
• Bushing Material: Polyurethane
• Contents: Frame Mount Plates, POLYURETHANE Pads and mounting hardware.
• Dampening Type: Pad
• Engine: Chevy LS Series
• Finish: Temporary Black Shipping Paint. This coating is not intended To Be Final Finish.
• Finish Type: Temporary Black Shipping Paint
• Kit Type: with POLYURETHANE Pads
• Materials: Steel mounting plates, Polyurethane mount pads
• Motor Mount Style: Motor mount plate
• Mounting Hardware Included: Yes
• Positions: 1 in. Forward
• Product Details: For installing a Chevy LS Series engine into a vehicle that is set up for a Chevy SB V8. Locates engine 1 in. FORWARD of the stock SB Chevy location.
• Product Info: Polyurethane material holds up far longer than rubber, and has a life expectancy of 8-10 years
• Quantity: Sold as a kit.
• Uses Mount Pad #: Trans-Dapt #4238
• Vehicle Family: Factory SB Chevy Chassis
• Wheel Drive Type: 2WD
