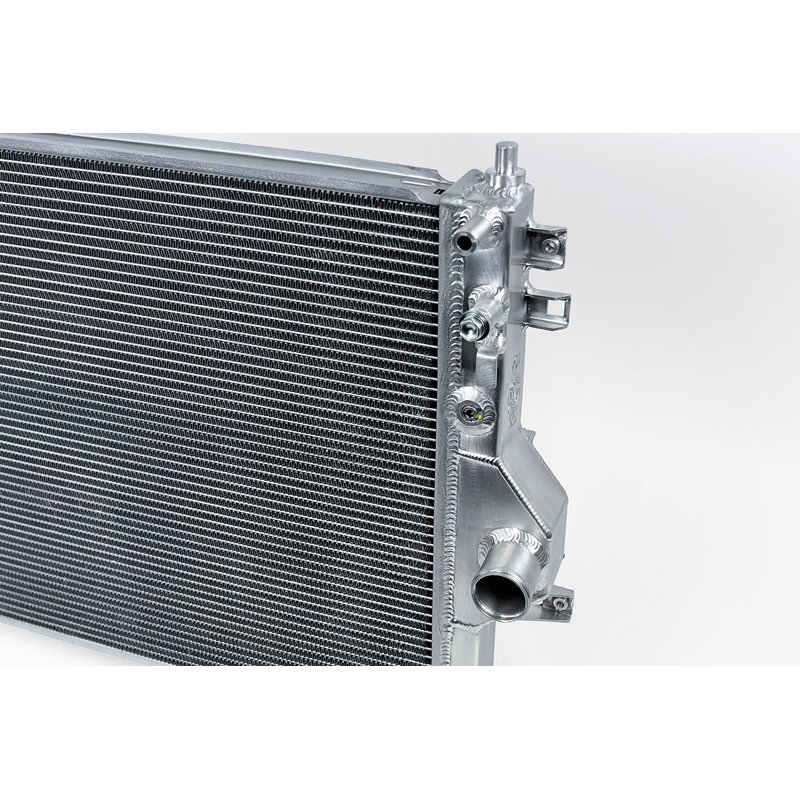

CSF | High-Performance All-Aluminum Radiator - GR Corolla 1.6T 2023-2024

CSF - Radiator

Description

CSF is well known for making the best Toyota cooling systems in the world. With years of feedback from Customers, Race Teams, and Development Partners, CSF has the more experience with Toyota cooling systems than any other company in the world. With more and more people pushing the limits of the GR Corolla / GR Yaris, the factory radiator has started showing its limitations. Bigger turbos cranking out more power create a lot more heat that needs to be dissipated. Furthermore, the intercooler is mounted directly in front of the radiator, so all the heat shed by that system runs through it. In racing applications this can be detrimental to engine coolant temperatures and risk sending your GR Corolla / GR Yaris into limp mode.

Characteristics

• Coolant Hose Inlet Connection Type: OE Type Connection
• Coolant Hose Outlet Connection Type: OE Type Connection
• Core Height: 624mm
• Core Material: Aluminum
• Core Row Quantity: 2
• Core Thickness: 42mm
• Core Width: 388.5mm
• Down Flow Or Cross Flow Type: Cross Flow
• Finish/Color: Satin
• Frame Included: No
• Grade Type: Performance
• Inlet Connector Type: Slip On
• Inlet Diameter: 35mm
• Inlet Location: Middle Right
• Installation Type: Drop-In Fit Installation
• Internal Engine Oil Cooler: No
• Internal Transmission Oil Cooler: No
• Mounting Hardware Included: No
• Mounting Type: Mounts with OE Hardware
• Outlet Connector Type: Slip On
• Outlet Diameter: 35mm
• Outlet Location: Middle Left
• Radiator Cap Included: No
• Tank Material: Aluminum
• Thermostat Included: No

Attributs

• 2-Row, 42mm Ultra-High-Performance Core
• Cooling Tubes with CSF's Exclusive B-Tube Technology
• New 5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
• CNC Machined Mounting Brackets and OEM Style Inlet/Outlet
• Pre-plugged 1/8th NPT temperature sensor port on right side tank
• Pre-installed foam strips on top and bottom end plates for increased sealing
• Recessed the lower
• End tanks deigned with additional clearance for the CSF x Jackson Racing Intercooler or other aftermarket intercoolers with larger inlet and outlet pipes
• 100% All Aluminum TIG-Welded Construction
• Hand Brushed Satin Finish
• True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications
• Individually Leak and Pressure Tested
• 2-Year Limited Warranty

Note:
