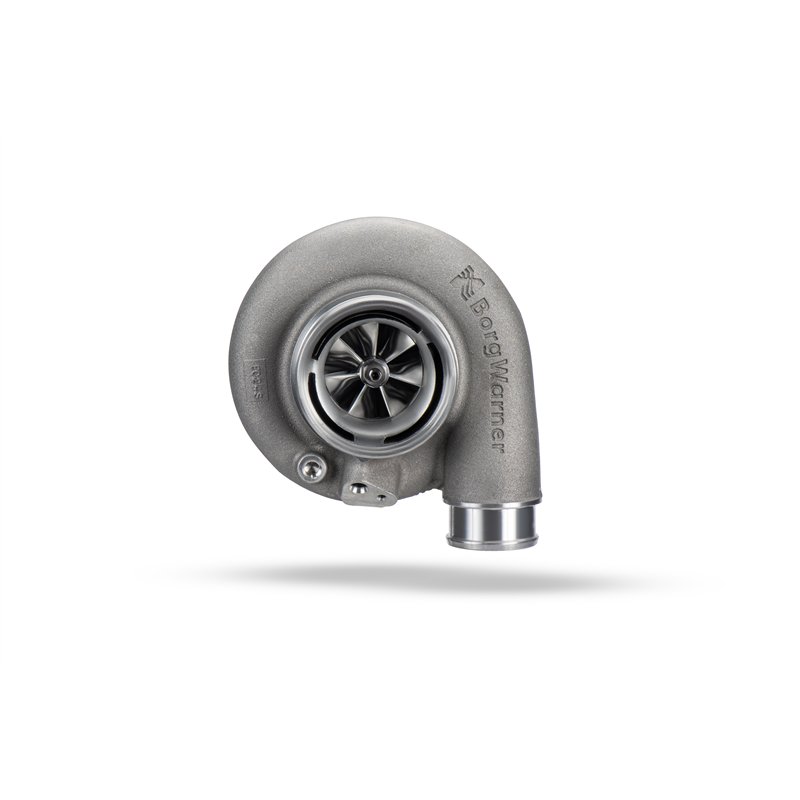

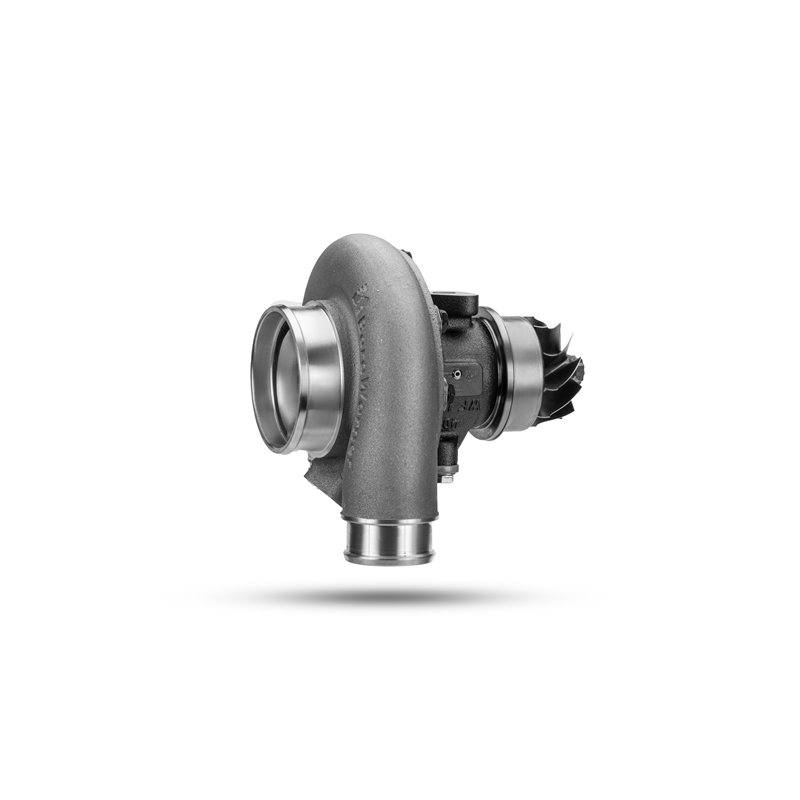

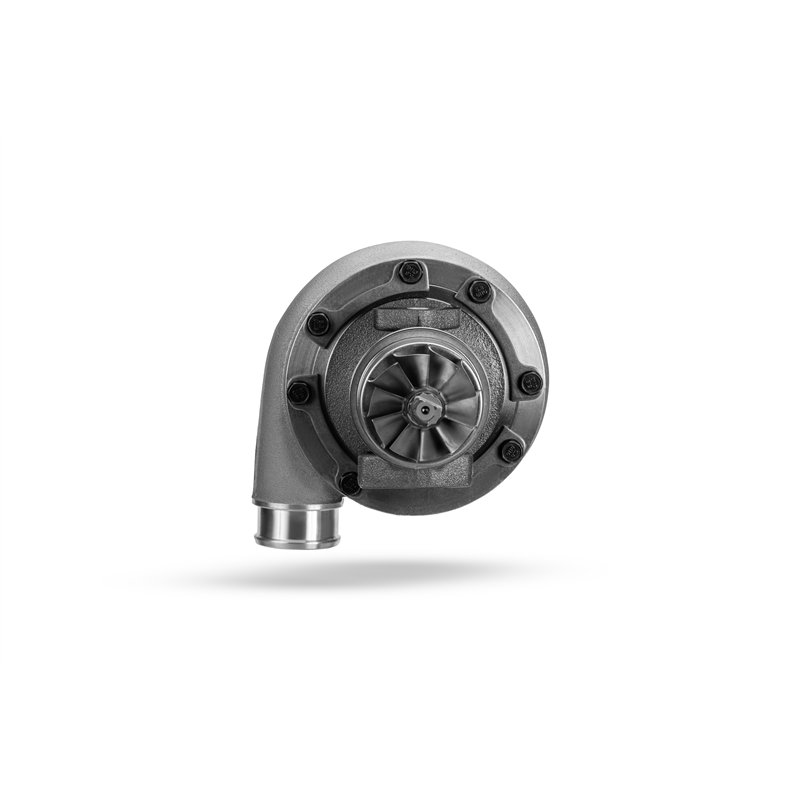

BorgWarner | AirWerks S200SX-E Supercore 57mm

AirWerks S200SX-E Supercore 57mm

Introducing SX-E high-performance journal bearing turbochargers and supercores from BorgWarner's AirWerks series! AirWerks products utilize journal bearing systems with Inconel 317c turbine wheels which are a great match for performance gasoline and diesel engines. The "E" within the product name denotes the enhanced features and characteristics (vs. SX) which include the upgraded aluminum Forged Milled Compressor Wheel which BorgWarner coined as FMW technology.

Some competitors offer billet compressor wheels, but BorgWarner raised the industry standard by using a forging which is stronger than billet and cast aluminum. SX-E is proudly Made in USA at BorgWarner's factory located in Arden, NC! This S200 SX-E is sized just right for single turbo applications making 300 HP to 650 HP or 600 HP to 1,300 HP in twin turbo configurations! SX-E offers great value and performance without sacrificing quality!

Key Benefits

• Supports 300–650 HP single-turbo or 600–1,300 HP twin-turbo (gasoline engines)
• Inconel 713C turbine wheel
• Twin hydrodynamic journal bearing system
• Forged milled aluminum compressor with extended tip
• Integrated boost port
• Integrated speed sensor port (customer can drill out if using)
• Backed by a 1-Year Limited Warranty

Specifications

Turbine housing options for 70mm turbine wheel (sold separately)

• T4 Twin Scroll 0.83 A/R — P/N 177191
• T4 Twin Scroll 1.00 A/R — P/N 177193
• T4 Twin Scroll 1.09 A/R — P/N 177196
• T4 Twin Scroll 1.15 A/R — P/N 177192
• T4 Twin Scroll 1.22 A/R — P/N 177194
• T4 Twin Scroll 1.27 A/R — P/N 178331
• Sold separately:  Speed sensor, turbine outlet v-band clamp, and drain port fitting.

Important Notes

• Turbine housings are sold separately and above requires external wastegate which are not included. Turbine housing inlet volute opening is sized as T3, but the connection has a T4 bolt pattern.
• Need to make a repair? View core assemblies, just the cartridge, which can be purchased for quick repairs.  This is the best method to make a repair as they come pre-balanced with new wheels which avoids the need for special rebuild tools (check that your end-housings are reusable).
• Not sure which size turbo you need?  Visit BorgWarner's Match Bot to which will help you properly pick the best turbo for your application and goals.
