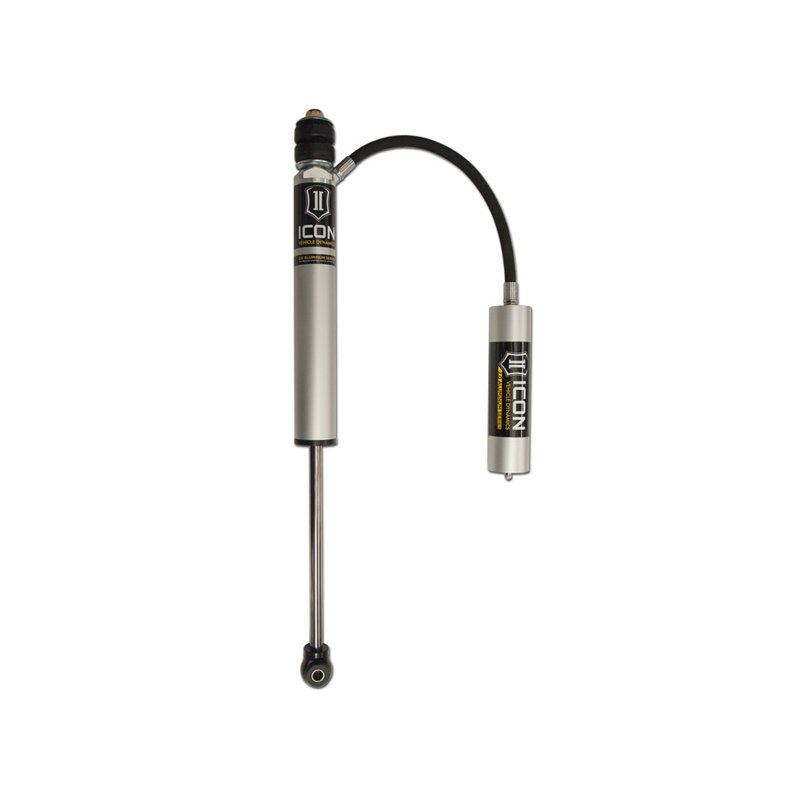

ICON | 4.5" FRONT 2.0 VS RR - Wrangler (JK) 3.6L / 3.8L 2007-2018

ICON - Suspension Shock Absorber

Description

ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off road situations, consider the ICON V.S. 2.5 Series shock to handle extra abuse and punishment your suspension will need to endure.

Caractéristiques

• 10526: Digressive
• 10526: Linear
• 10527: No
• 10528: No
• 10529: No
• 10530: Passive
• 10535: 4.5 IN
• 1183: .625 IN
• 1385: Gray
• 17: Black
• 17: Gray
• 17: Silver
• 200: Anodized
• 2329: Aluminum
• 30: Yes
• 3065: 2 IN
• 3085: Single Tube
• 3390: Performance
• 408: CENTER OF EYELET
• 409: Shoulder of Stem
• 48: EYELET
• 49: Stem
• 50: NO
• 51: Yes
• 5126: Gray
• 52: 2 IN
• 621: Aluminum
• 7233: No
• 8703: No
• 9444: No
• 9476: Yes
• 9621: No
• 9783: No
• 9792: No
• 9801: 1.75 IN
• 9908: Yes
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
• Add-On Part: 611058 - 07-18 JK FRONT RESI MOUNT KIT 2.0/2.5 SINGLE
• Add-On Part: 614700 - 2.0 SHOCK BOOT KIT (EACH)
• Adjustable Damping: No
• Bore Diameter: 1.75 IN
• Bushing Color: Black
• Bushing Included: yes
• Bushing Material: Polyurethane
• Bushing Material: Rubber
• Coil Over Springs Included: NO
• Configuration: Performance
• Cylinder Finish: Anodized
• Damping Type: Oil
• Dust Boot Included: No
• Dust Shield: NO
• External Reservoir: Yes
• Material: Aluminum
• Material: Steel
• Quantity: 1
• Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
• Service Parts: 254101G - 1/2 GALLON ICON PERFORMANCE SHOCK OIL
• Shaft Diameter: 0.625 IN
• Shaft Material: Chrome
• Suspension Type: Spring

Attributs

• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Nitrogen charged monotube design with remote reservoir
• One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• 5/8” chrome plated hardened steel shaft resists corrosion and pits
• 6061 aluminum rod end, top cap, and internals ensure strength and durability
• Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment
• Application-specific reservoir mounting hardware
• 6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
• Nitrile rubber top out bumper for noise free operation
• 100% rebuildable
• 100% revalveable
