ICON | DRIVER REAR 3.0 ZETA RXT RR CDEV - F-150 3.5T / 5.2L 2021-2025

ICON - Suspension Shock Absorber

Description

ICON Vehicle Dynamics is known for its extensive research and development put into every product, the revolutionary outcome of this research is what sets ICON apart from the off-road industry standard. The Ford F-150 Raptor is a unique production truck, designed & built, to bridge the gap between a standard street “pickup truck” and an off-road pre-runner. Since the F-150 Raptor’s release ICON Vehicle Dynamics’ engineers have pushed this vehicle to extremes in order to develop the most comprehensive suspension components on the market. From the brutal deserts of Baja, to the deep snow of Michigan’s U.P., to the wooded trails of the East coast, ICON suspension systems have been put to the test and consistently perform beyond expectation. Unable to leave “well-enough” alone, ICON is once again aiming to raise the bar in Raptor performance with the introduction of the RXT Rear 3.0 Remote Reservoir Bypass Shock for the 2021-2025 Gen3 F-150 Raptor.

Caractéristiques

• 10526: Digressive
• 10526: Linear
• 10526: Position Sensitive
• 10526: Velocity Sensitive
• 10527: Yes
• 10528: No
• 10529: No
• 10530: Active
• 10531: Ceramic Coated
• 10535: 1 IN
• 11167: 0 IN
• 11241: .475 IN
• 11242: .475 IN
• 11243: 1.46 IN
• 11244: 1.46 IN
• 11332: 3
• 11333: External
• 11334: 21.5 IN
• 11335: .5 IN
• 1183: 1 IN
• 1385: Gray
• 17: Black
• 17: Gray
• 17: Silver
• 200: Ceramic Coated
• 2329: Steel
• 26: Telescopic
• 2974: 12.5 IN
• 2975: 3 IN
• 30: Yes
• 3065: 3 IN
• 3085: Single Tube
• 3390: Performance
• 408: Center of Eyelet
• 409: Center of Eyelet
• 48: Loop (Eyelet) Bearing
• 49: Loop (Eyelet) Bearing
• 50: yes
• 51: Yes
• 5126: Gray
• 52: 3 IN
• 621: Steel
• 7233: Yes
• 8703: Yes
• 9388: Polyurethane
• 9444: Yes
• 9476: Yes
• 9747: Electronic
• 9747: Manual
• 9783: No
• 9792: No
• 9801: 2.75 IN
• 9908: No
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
• Add-On Part: 93500 - 15-23 F150 & 17-22 FSD IIC INSTALL KIT
• Add-On Part: 95003 - 21-25 F-150 RAPTOR FRONT 3.0 VS RR CDEV COILOVER KIT
• Add-On Part: 95020 - 21-25 F-150 RAPTOR SOLENOID MOUNT KIT
• Add-On Part: 95206R - 21-25 F-150 RAPTOR PASSENGER REAR 3.0 ZETA RR CDEV
• Add-On Part: 95230 - 21-25 F-150 RAPTOR TRIPLE RATE REAR COIL SPRING KIT
• Add-On Part: 95231 - 21-25 F-150 RAPTOR TRIPLE RATE OVERLAND REAR COIL SPRING KIT
• Adjustable Damping: Yes
• Adjustable: Yes
• Bore Diameter: 2.75 IN
• Damping Type: Oil
• Dust Shield: Yes
• External Reservoir: Yes
• Material: Aluminum
• Material: Steel
• Reservoir Type: Remote
• Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
• Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
• Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
• Service Parts: 302005 - 3.0 ICON REBUILD KIT (ALL)
• Shaft Diameter: 1 IN
• Shaft Material: Chrome
• Suspension Type: Spring

Attributs

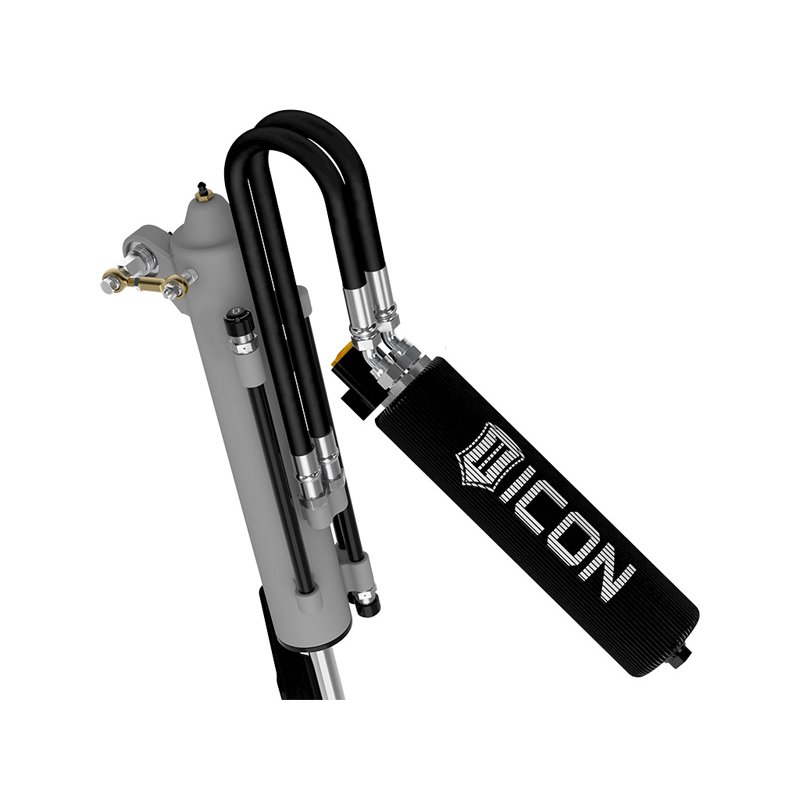

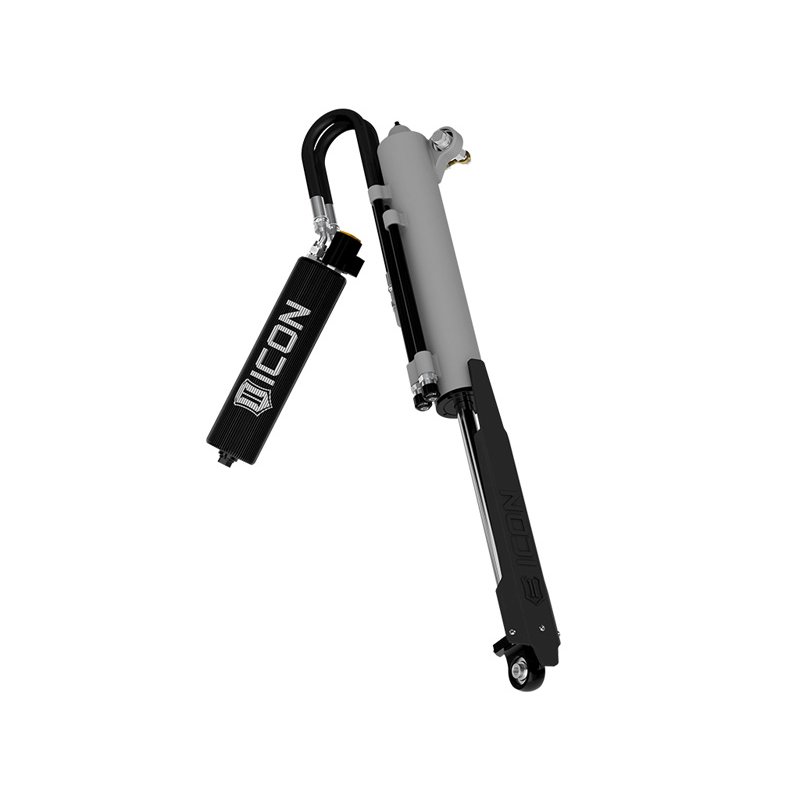

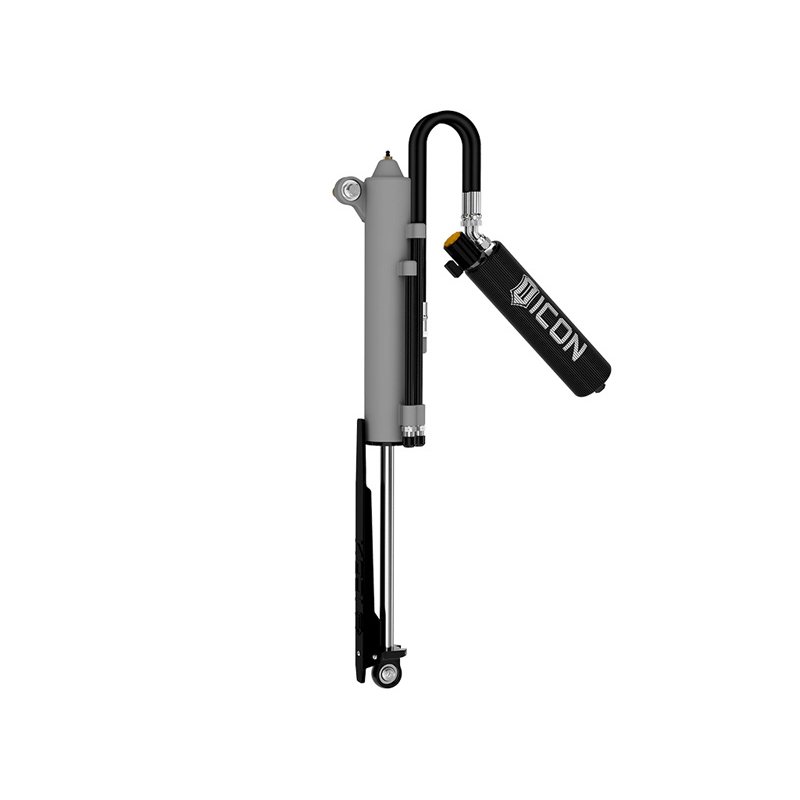

• 3.0 RXT 3-tube bypass rear shock with 3.0 remote reservoir
• Unique side-mounted upper eyelet allows for increased travel while utilizing factory mounting location
• Application specific shock length designed to be paired with ICON rear coil springs provides up to 17" of rear wheel travel
• Recirculating Dual Hose Reservoir (Patent Pending) keeps shock temperatures low by pumping heat to the reservoir for increased dissipation

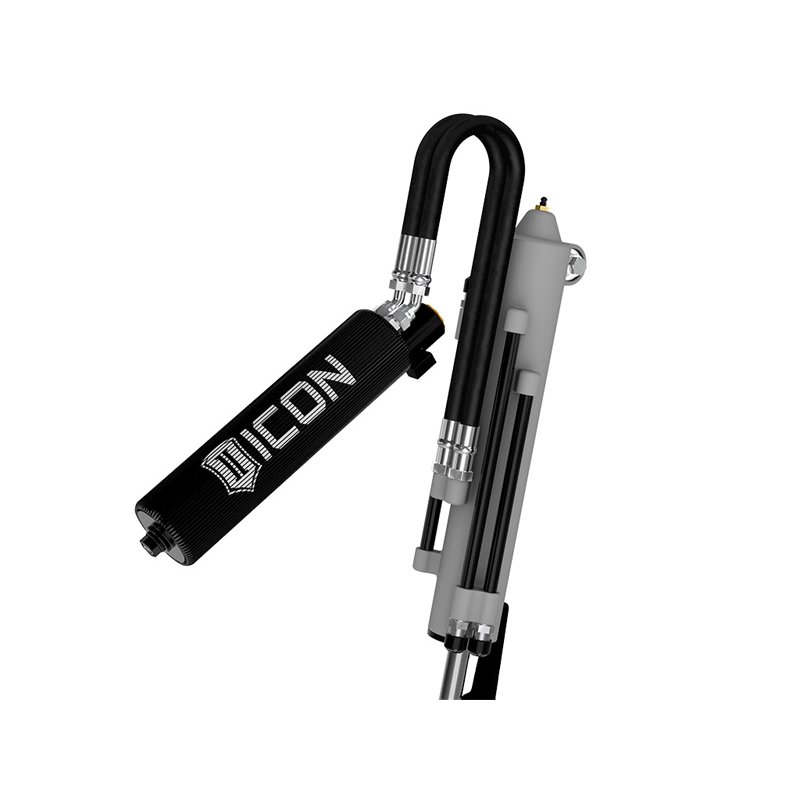

• 12" finned aluminum reservoirs provide generous oil volume and increased surface area for enhanced cooling properties and consistent damping
• Anti-Wobble Link (Patent Pending) keeps bypass tubes clear of wheel and tire

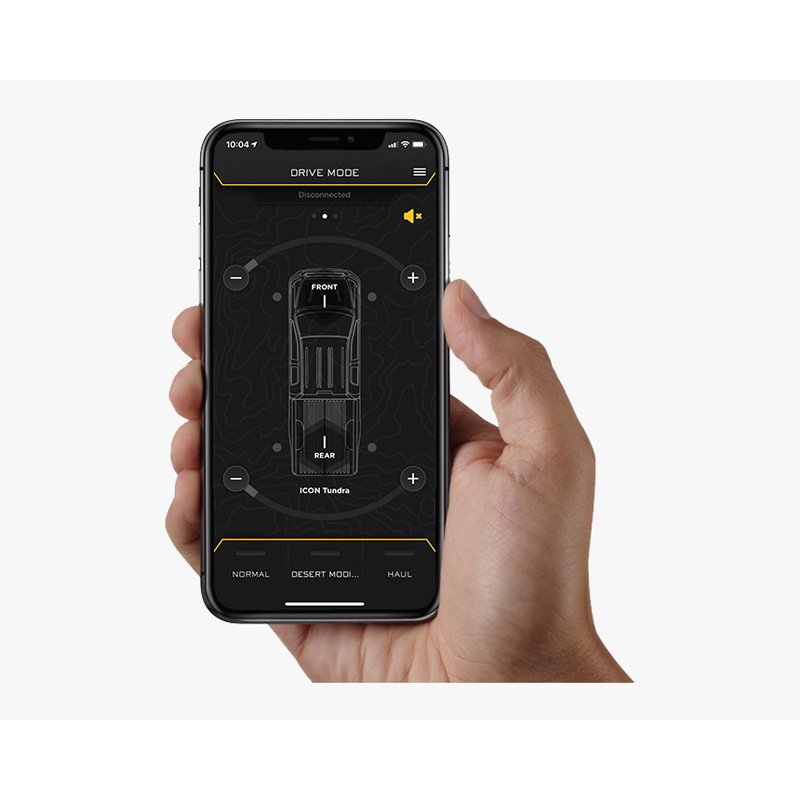

• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC) independently from bypass valve settings

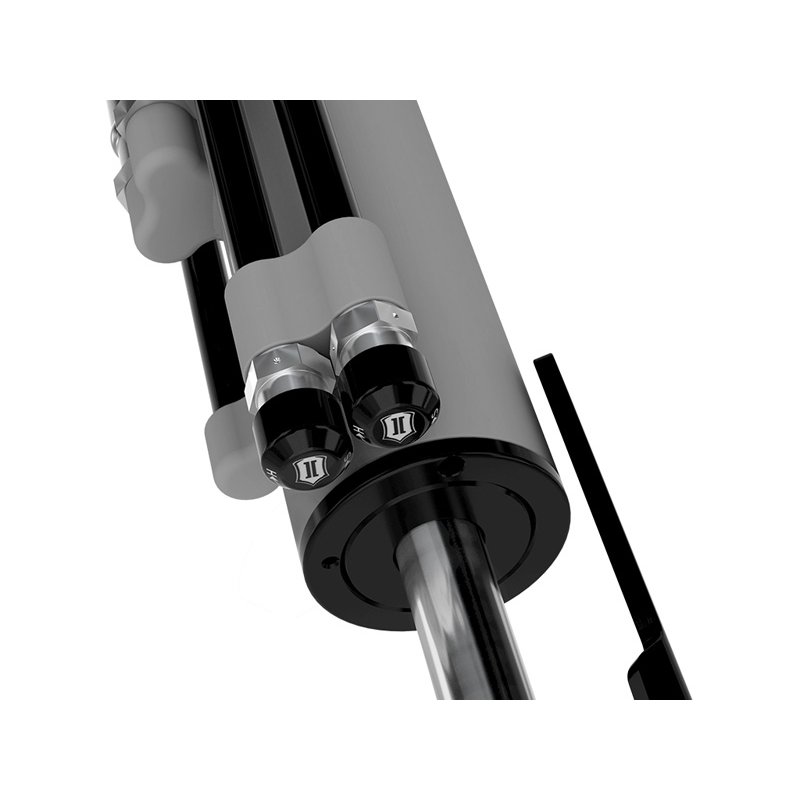

• Bypass valves feature easy-to-adjust detented adjustment knobs in quarter turn increments for quick adjustability without the use of tools
• High resolution bypass valves designed for noticeable fine tune adjustments in rebound and compression
• High flow CNC machined welded bypass blocks designed to increase fluid flow for enhanced performance & high definition tuning
• Replaceable bypass tubes that can easily be replaced if damaged
• Direct bolt in to OEM location with bypass adjustment knobs easily accessible for tuning adjustment
• Special engineered damped valve seats for quiet and precise operation without the standard bypass loud “clicking” noise you will find with other brands
• Cerakoted cylinder finish with hard anodized aluminum bypass tubes
• Protective shin guard protects shaft from debris strikes to maintain smooth sealing surface and increase service intervals
