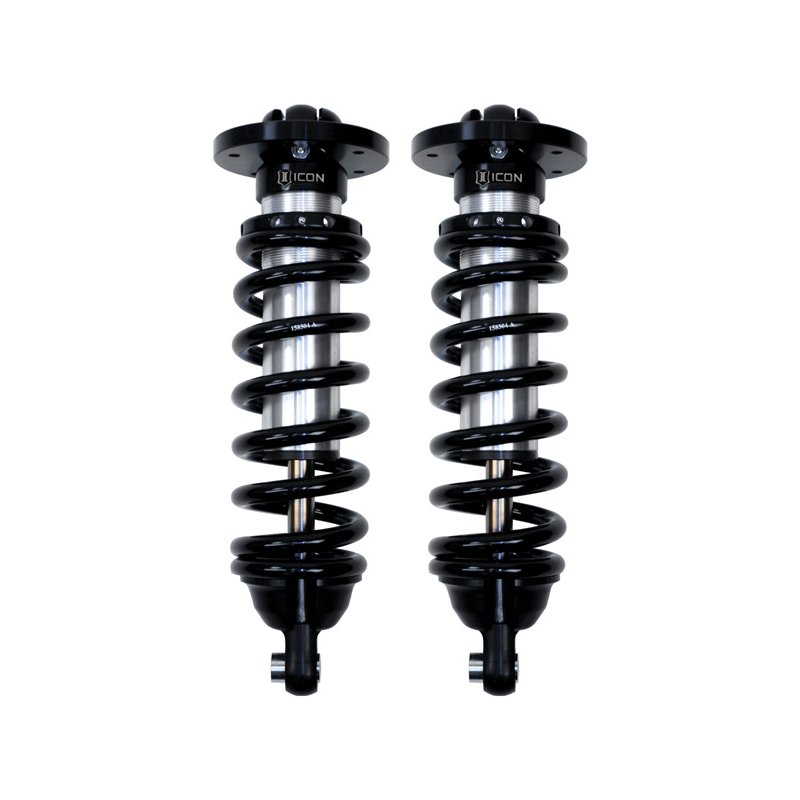

ICON | EXT TRAVEL 2.5 VS IR COILOVER KIT - Titan 5.6L 2004-2015

ICON - Coilover Set

Description

These 0 - 3 Inch Adjustable Coil-over shocks will increase the handling and ride quality of your Nissan Titan or Armada. They are preset with 2 inches of lift out of the box to level out your vehicle and give clearance of 33 Inch Tall Tires. These extended versions give you addtional 1" of down travel and are to be used with an aftermarket uniball upper control arm.

Caractéristiques

• 10107: 650
• 10527: No
• 10528: Yes
• 10530: Passive
• 10535: 3 IN
• 2064: Steel
• 2329: Steel
• 306: Yes
• 3085: Single Tube
• 3096: Black
• 3390: Performance
• 7233: No
• 8703: No
• 9783: No
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
• Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
• Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
• Adjustable Damping: NO
• Body Diameter: 2.5 IN
• Coil Over Springs Included: Yes
• Compressed Length: 12.15 IN
• Cylinder Color: Silver
• Cylinder Finish: Cadmium Plated
• Damping Type: Oil
• Extended Length: 17.11 IN
• Gas Charged: yes
• Lower Mount Type: Eyelet
• Material: Aluminum
• Material: Steel
• Maximum Lift: 3 IN
• Minimum Lift: 0 IN
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5” Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5” Backspace / 0mm Offset
• Remote Reservoir: NO
• Reservoir Style: Internal
• Self-Leveling: No
• Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
• Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
• Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
• Service Parts: 252004 - ECONOMY NEEDLE CHARGING TOOL
• Service Parts: 252010 - 2.5 IFP REBUILD KIT
• Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
• Service Parts: 257303 - 7/8 SHAFT 9.25 OAL, 5.00 TRAVEL
• Service Parts: 611019 - COILOVER HARDWARE KIT PAIR
• Service Parts: 611067 - TACOMA/FJ/4RNR LOWER CO BRG/SPCR KIT
• Shaft Diameter: 0.875 IN
• Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
• Shock Absorber Rod End Measuring Point: Center of Eylet
• Spring Rate Type: Linear
• Travel Length: 4.96 IN
• Upper Mount Type: Mounting Plate
• Valving Type: Digressive

Attributs

• Adjustable ride height from 0" - 3"
• Race shock piston with flutter stack compression valving
• Cad-plated threaded body / Optional Extreme Weather Plating
• Billet aluminum upper mount
• 5/8" PTFE-lined spherical bearing
• Completely re-buildable and re-valvable shock
• 2.5" shock diameter to prevent overheating
• Chrome-silicon spring
• 250 PSI nitrogen-charged internal reservoir
