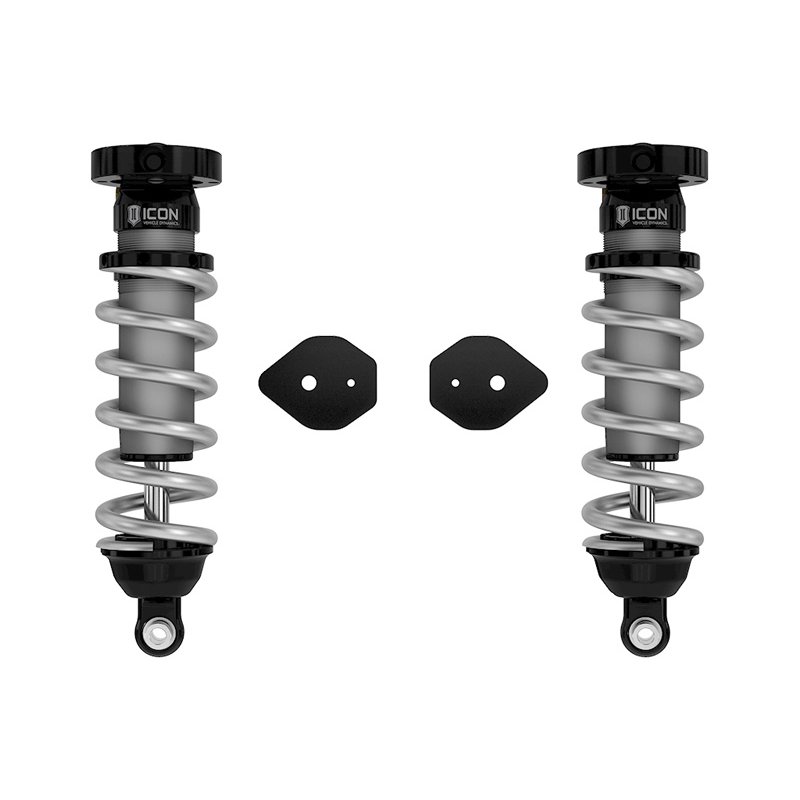

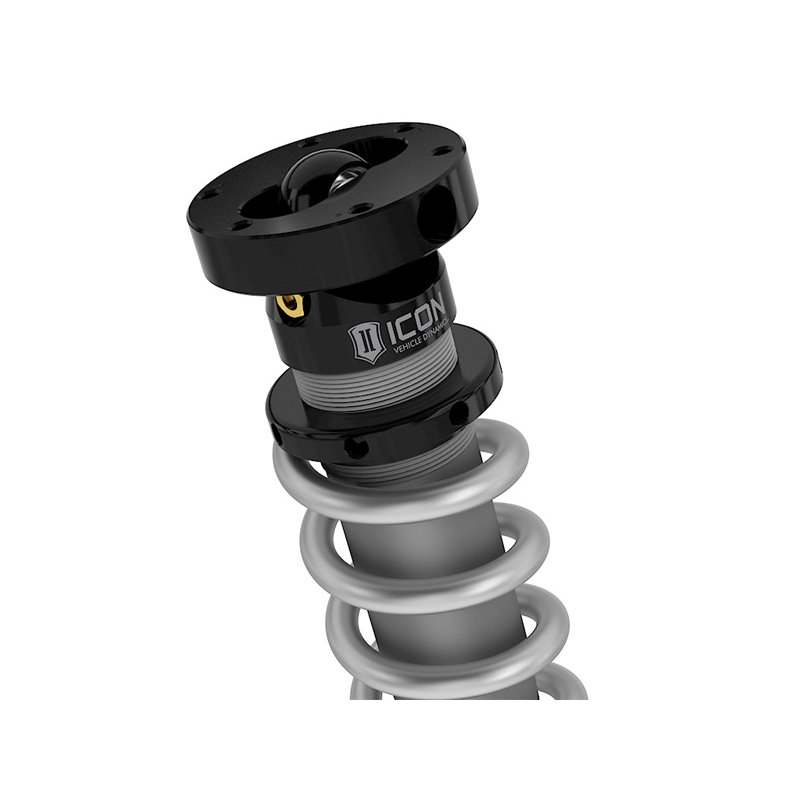

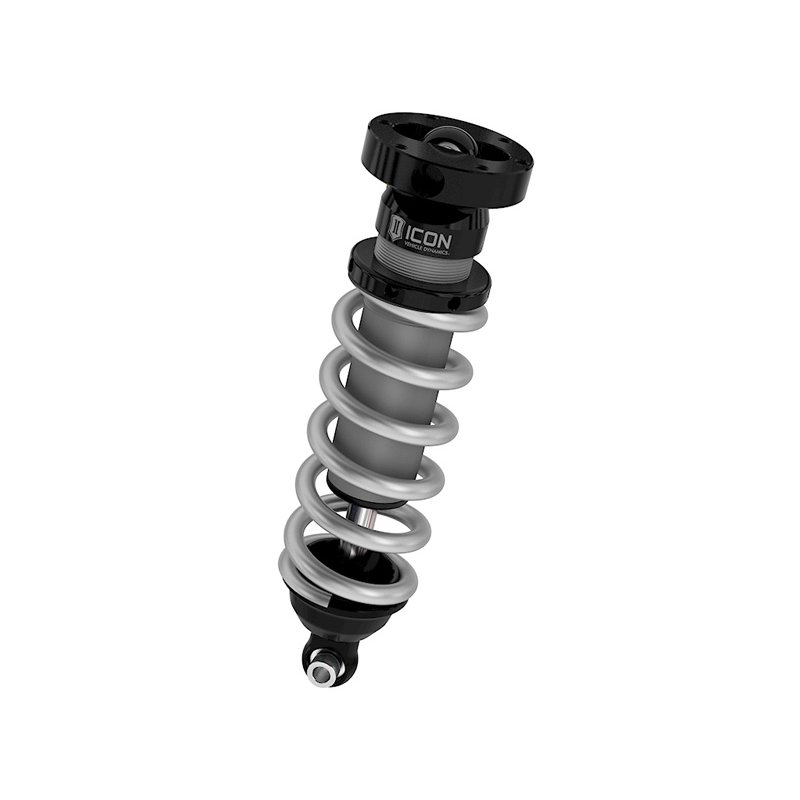

ICON | FRONT 2.5 VS IR COILOVER KIT - Frontier / Pathfinder / Xterra 2005-2025

ICON - Coilover Set

Description

ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2005-2025 Nissan Frontier, 2005-2015 Nissan Xterra, or 2005-2012 Nissan Pathfinder. These adjustable coilovers allow up 1-3” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving, their large 2.5” shock body with increased piston surface area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. When paired with ICON 2.0 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience.

Caractéristiques

• 10107: 500
• 10527: No
• 10528: Yes
• 10530: Passive
• 10535: 3 IN
• 2064: Steel
• 2329: Steel
• 306: Yes
• 3085: Single Tube
• 3096: Black
• 3390: Performance
• 7233: No
• 8703: No
• 9476: No
• 9783: Yes
• Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
• Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
• Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
• Adjustable Damping: No
• Body Diameter: 2.5 IN
• Coil Over Springs Included: Yes
• Compressed Length: 12.52 IN
• Cylinder Color: Silver
• Cylinder Finish: Cadmium Plated
• Damping Type: Oil
• Dust Shield: No
• Extended Length: 16.58 IN
• Gas Charged: Yes
• Lower Mount Type: Eyelet
• Material: Aluminum
• Material: Steel
• Maximum Lift: 3 IN
• Minimum Lift: 1.25 IN
• OEM Wheels & Tires Fitment: Yes
• Reservoir Style: Internal
• Self-Leveling: No
• Shaft Diameter: 0.875 IN
• Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
• Shock Absorber Rod End Measuring Point: Center of Eyelet
• Spring Rate Type: Linear
• Travel Length: 4.06 IN
• Upper Mount Type: Mounting Plate
• Valving Type: Digressive

Attributs

• Vehicle specific tuned for superior shock damping, vehicle control, and improved ride quality over stock
• Vehicle specific shock length yields maximum wheel travel
• Height-adjustable coilovers offer 1-3" of lift height adjustment over stock
• 2.5" diameter shock bodies with internal reservoirs for consistent performance
• ICON engineered coil springs
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
• FK rod end bearings for extended longevity and minimal deflection
• Fully rebuildable and re-tunable
