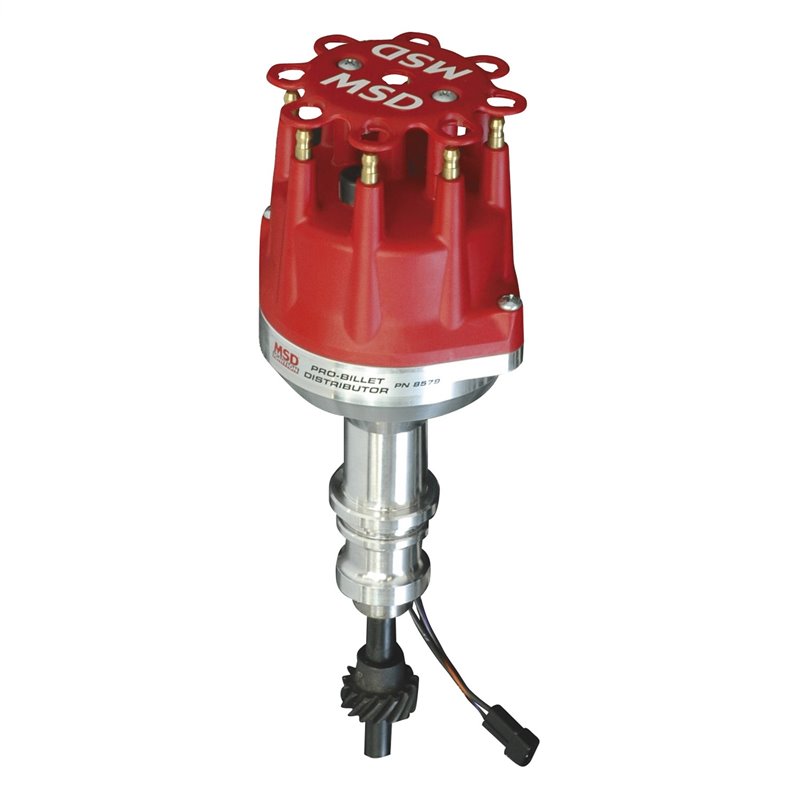

MSD | Pro-Billet Small Diameter Distributor - Mustang 4.7L 1964-1985

Name: MSD | Pro-Billet Small Diameter Distributor - Mustang 4.7L 1964-1985
Brand: MSD Ignition
SKU: 8579
Price: 581.21 CAD
Availability: InStock

Part #: 8579

Pro-Billet™ Small Diameter Distributor; Incl. Cap/Race Rotor; Use w/MSD 6/7/8/10 Series Ignition; Iron Gear; Red;

LIVRAISON GRATUITE

CAD $581,21 CAD $774,94 Économisez 25% - BLACK FRIDAY

FIÈREMENT CANADIEN
GARANTIE DU MEILLEUR PRIX
COMPATIBILITÉ GARANTI

MSD Ignition - Pro-Billet Small Diameter Distributor

Description

MSD engineers fit all of their high performance distributor experience into a special compact housing designed to be less obtrusive for Ford engines. The diameter of the special cap and housing are 5/8 inch smaller than stock Ford distributors providing extra room in front of the engine. The new MSD cap features spark plug style terminals and is firmly screwed down to the housing. The distributor relies on MSD's race proven magnetic pick-up and precision reluctor to deliver accurate trigger signals to the MSD ignition throughout high rpm. The reluctor assembly is turned by a hardened steel shaft which rides in a sealed ball bearing for high rpm stability and endurance. Mounted to the top of this shaft is a fully adjustable mechanical advance assembly. The rate at which the chromoly assembly advances the timing is easily controlled by changing the supplied advance springs and stop bushing for total advance.

Caractéristiques

Distributor Type: Magneto
Engine Make/Size: Ford 289-302

Attributs

Billet housing 5/8 in. smaller dia. than stock Ford distributors
Must Be Used w/An MSD Ignition Control
Supplied w/small dia. cap w/HEI style terminals; race and rotor
Will accept PN[8441] Cap-A-Dapt
Nylon pads ensure smooth operation of the advance weights
Advance weight pins are staked and tig welded to the plate
Mech. advance assem. can be locked out for crank trigger systems
Advance plate and weights are fine blanked from chrome moly steel
QPQ coated for friction reduction
QPQ coated polished steel shaft; guided by sealed ball bearings
Maintenance-free magnetic pickup and precision reluctor
Creates stable trigger signals throughout the rpm range

Noter:

Livraison GRATUITE / FREE Delivery

Ford

1963 300 Base V8 4.7L SEE NOTE1
1966-1968 Bronco Base V8 4.7L SEE NOTE1
1968 Bronco Roadster / Wagon V8 4.7L SEE NOTE1
1969-1974 Bronco Base V8 5.0L SEE NOTE1
1972-1974 Bronco Base V8 5.0L SEE NOTE1
1975-1993 Bronco Custom V8 5.0L SEE NOTE1
1977-1993 Bronco Custom V8 5.0L SEE NOTE1
1980-1993 Bronco Custom V8 5.0L SEE NOTE1
1985-1996 Bronco Eddie Bauer V8 5.0L SEE NOTE1
1975 Bronco Northland / Ranger V8 5.0L SEE NOTE1
1980-1981 Bronco Ranger XLT V8 5.0L SEE NOTE1
1969 Bronco Roadster V8 5.0L SEE NOTE1
1975-1977 Bronco Sport V8 5.0L SEE NOTE1
1968-1973 Bronco Wagon V8 5.0L SEE NOTE1
1990-1996 Bronco XL V8 5.0L SEE NOTE1
1982-1983 Bronco XLS V8 5.0L SEE NOTE1
1984-1996 Bronco XLT V8 5.0L SEE NOTE1
1992-1996 Bronco XLT V8 5.0L SEE NOTE1
1994-1996 Bronco XLT V8 5.0L SEE NOTE1
1982-1993 Bronco XLT Lariat V8 5.0L SEE NOTE1
1983-1993 Bronco XLT Lariat V8 5.0L SEE NOTE1
1992 Bronco XLT Nite V8 5.0L SEE NOTE1
1995-1996 Bronco XLT Sport V8 5.0L SEE NOTE1
1963-1967 Country Sedan Base V8 4.7L SEE NOTE1
1968-1972 Country Sedan Base V8 5.0L SEE NOTE1
1969-1972 Country Sedan Base V8 5.0L SEE NOTE1
1971-1972 Country Sedan Base V8 5.0L SEE NOTE1
1963-1967 Country Squire Base V8 4.7L SEE NOTE1
1968-1991 Country Squire Base V8 5.0L SEE NOTE1
1972-1991 Country Squire Base V8 5.0L SEE NOTE1
1987-1991 Country Squire Base / LX V8 5.0L SEE NOTE1
1965-1967 Custom Base V8 4.7L SEE NOTE1
1968-1972 Custom Base V8 5.0L SEE NOTE1
1964-1967 Custom 500 Base V8 4.7L SEE NOTE1
1968-1972 Custom 500 Base V8 5.0L SEE NOTE1
1969-1982 E-100 Econoline Base V8 5.0L SEE NOTE1
1975-1982 E-100 Econoline Base / Chateau V8 5.0L SEE NOTE1
1979-1982 E-100 Econoline Base / Chateau V8 5.0L SEE NOTE1
1969-1974 E-100 Econoline Club Wagon V8 5.0L SEE NOTE1
1975-1983 E-100 Econoline Custom V8 5.0L SEE NOTE1
1979-1983 E-100 Econoline Custom V8 5.0L SEE NOTE1
1975 E-100 Econoline Northland V8 5.0L SEE NOTE1
1983 E-100 Econoline XL V8 5.0L SEE NOTE1
1979-1982 E-100 Econoline Club Wagon Base / Chateau V8 5.0L SEE NOTE1
1979-1983 E-100 Econoline Club Wagon Custom V8 5.0L SEE NOTE1
1983 E-100 Econoline Club Wagon XL V8 5.0L SEE NOTE1
1969-1974 E-200 Econoline Base / Club Wagon V8 5.0L SEE NOTE1
1971-1972 E-200 Econoline Chateau Wagon V8 5.0L SEE NOTE1
1970-1974 E-200 Econoline Custom Wagon V8 5.0L SEE NOTE1
1969-1974 E-300 Econoline Base / Club Wagon V8 5.0L SEE NOTE1
1970-1974 E-300 Econoline Chateau Wagon V8 5.0L SEE NOTE1
1971-1972 E-300 Econoline Custom Wagon V8 5.0L SEE NOTE1
1969-1983 F-100 Base V8 5.0L SEE NOTE1
1974-1983 F-100 Base V8 5.0L SEE NOTE1
1976-1983 F-100 Base V8 5.0L SEE NOTE1
1978-1983 F-100 Base V8 5.0L SEE NOTE1
1975-1982 F-100 Custom V8 5.0L SEE NOTE1
1975-1978 F-100 Northland V8 5.0L SEE NOTE1
1975-1981 F-100 Ranger / Ranger XLT V8 5.0L SEE NOTE1
1978-1981 F-100 Ranger Lariat V8 5.0L SEE NOTE1
1982-1983 F-100 XL / XLS / XLT Lariat V8 5.0L SEE NOTE1
1977 F-100 XLT V8 5.0L SEE NOTE1
1976-1986 F-150 Base V8 5.0L SEE NOTE1
1978-1986 F-150 Base V8 5.0L SEE NOTE1
1983-1986 F-150 Base V8 5.0L SEE NOTE1
1975-1992 F-150 Custom V8 5.0L SEE NOTE1
1982-1992 F-150 Custom / XLT Lariat V8 5.0L SEE NOTE1
1987-1992 F-150 Custom V8 5.0L SEE NOTE1
1995-1996 F-150 Eddie Bauer / Special V8 5.0L SEE NOTE1
1975-1978 F-150 Northland V8 5.0L SEE NOTE1
1975-1981 F-150 Ranger / Ranger XLT V8 5.0L SEE NOTE1
1978-1981 F-150 Ranger Lariat V8 5.0L SEE NOTE1
1982-1996 F-150 XL V8 5.0L SEE NOTE1
1982-1983 F-150 XLS V8 5.0L SEE NOTE1
1977-1996 F-150 XLT V8 5.0L SEE NOTE1
1983-1996 F-150 XLT V8 5.0L SEE NOTE1
1984-1996 F-150 XLT V8 5.0L SEE NOTE1
1993-1996 F-150 XLT V8 5.0L SEE NOTE1
1985-1992 F-150 XLT Lariat V8 5.0L SEE NOTE1
1963-1967 Fairlane 500 / Base V8 4.7L SEE NOTE1
1966-1967 Fairlane 500XL V8 4.7L SEE NOTE1
1968-1970 Fairlane 500 V8 5.0L SEE NOTE1
1968-1969 Fairlane Base V8 5.0L SEE NOTE1
1978-1979 Fairmont Base / Futura V8 5.0L SEE NOTE1
1964-1968 Falcon Base / Futura V8 4.7L SEE NOTE1
1964-1965 Falcon Futura Sprint V8 4.7L SEE NOTE1
1968-1970 Falcon Base / Futura V8 5.0L SEE NOTE1
1965 Falcon Sedan Delivery Base V8 4.7L SEE NOTE1
1963 Ford 300 Base V8 4.7L SEE NOTE1
1963-1967 Galaxie Base V8 4.7L SEE NOTE1
1963-1967 Galaxie 500 Base V8 4.7L SEE NOTE1
1963 Galaxie 500 Sunliner / Victoria V8 4.7L SEE NOTE1
1964-1966 Galaxie 500 XL V8 4.7L SEE NOTE1
1968-1972 Galaxie 500 Base V8 5.0L SEE NOTE1
1968-1970 Galaxie 500 XL V8 5.0L SEE NOTE1
1972-1974 Gran Torino Base / Sport / Squire V8 5.0L SEE NOTE1
1973-1974 Gran Torino Brougham V8 5.0L SEE NOTE1
1974 Gran Torino Elite V8 5.0L SEE NOTE1
1975-1980 Granada Base / Ghia V8 5.0L SEE NOTE1
1978-1980 Granada ESS V8 5.0L SEE NOTE1
1965-1967 LTD Base V8 4.7L SEE NOTE1
1968-1985 LTD Base V8 5.0L SEE NOTE1
1972-1985 LTD Base / Brougham V8 5.0L SEE NOTE1
1977-1985 LTD Base V8 5.0L SEE NOTE1
1982-1985 LTD Base V8 5.0L SEE NOTE1
1984-1985 LTD Base / Brougham V8 5.0L SEE NOTE1
1970-1985 LTD Brougham V8 5.0L SEE NOTE1
1979-1986 LTD Country Squire V8 5.0L SEE NOTE1
1986 LTD Country Squire LX / Crown Victoria LX V8 5.0L SEE NOTE1
1980-1986 LTD Crown Victoria V8 5.0L SEE NOTE1
1977-1979 LTD Landau V8 5.0L SEE NOTE1
1985 LTD LX Brougham V8 5.0L SEE NOTE1
1980-1982 LTD S V8 5.0L SEE NOTE1
1987-1991 LTD Crown Victoria Base / LX / S V8 5.0L SEE NOTE1
1977-1979 LTD II Base / S V8 5.0L SEE NOTE1
1977-1978 LTD II Brougham V8 5.0L SEE NOTE1
1979 LTD II Landau V8 5.0L SEE NOTE1
1971-1977 Maverick Base V8 5.0L SEE NOTE1
1975-1977 Maverick Grabber V8 5.0L SEE NOTE1
1964-1968 Mustang Base V8 4.7L SEE NOTE1
1968-1979 Mustang Base V8 4.9L SEE NOTE1
1973-1979 Mustang Base V8 4.9L SEE NOTE1
1975-1979 Mustang Base / Ghia V8 4.9L SEE NOTE1
1982 Mustang GL / GLX V8 4.9L SEE NOTE1
1970-1973 Mustang Grande V8 4.9L SEE NOTE1
1982-1985 Mustang GT V8 4.9L SEE NOTE1
1984 Mustang GT-350 20th Anniversary V8 4.9L SEE NOTE1
1982-1984 Mustang L V8 4.9L SEE NOTE1
1984-1985 Mustang LX V8 4.9L SEE NOTE1
1970-1978 Mustang Mach 1 V8 4.9L SEE NOTE1
1973-1978 Mustang Mach 1 V8 4.9L SEE NOTE1
1975-1978 Mustang Mach 1 V8 4.9L SEE NOTE1
1963-1967 Ranch Wagon Base V8 4.7L SEE NOTE1
1968-1972 Ranch Wagon Base V8 5.0L SEE NOTE1
1965-1967 Ranchero Base V8 4.7L SEE NOTE1
1970-1979 Ranchero 500 / Squire V8 5.0L SEE NOTE1
1974-1979 Ranchero 500 / GT / Squire V8 5.0L SEE NOTE1
1977-1979 Ranchero 500 / GT / Squire V8 5.0L SEE NOTE1
1968-1971 Ranchero Base V8 5.0L SEE NOTE1
1968-1979 Ranchero GT V8 5.0L SEE NOTE1
1977-1992 Thunderbird Base V8 5.0L SEE NOTE1
1981-1992 Thunderbird Base V8 5.0L SEE NOTE1
1983-1992 Thunderbird Base V8 5.0L SEE NOTE1
1988-1992 Thunderbird Base V8 5.0L SEE NOTE1
1991-1992 Thunderbird Base V8 5.0L SEE NOTE1
1978 Thunderbird Diamond Jubilee V8 5.0L SEE NOTE1
1984-1986 Thunderbird Elan V8 5.0L SEE NOTE1
1984-1985 Thunderbird Fila V8 5.0L SEE NOTE1
1979-1983 Thunderbird Heritage V8 5.0L SEE NOTE1
1981-1983 Thunderbird Heritage V8 5.0L SEE NOTE1
1983-1993 Thunderbird LX V8 5.0L SEE NOTE1
1988-1993 Thunderbird LX V8 5.0L SEE NOTE1
1991-1993 Thunderbird LX V8 5.0L SEE NOTE1
1980 Thunderbird Silver Anniversary V8 5.0L SEE NOTE1
1983-1988 Thunderbird Sport V8 5.0L SEE NOTE1
1978-1981 Thunderbird Town Landau V8 5.0L SEE NOTE1
1971 Torino 500 V8 5.0L SEE NOTE1
1968-1974 Torino Base V8 5.0L SEE NOTE1
1970-1971 Torino Brougham V8 5.0L SEE NOTE1
1968-1971 Torino GT V8 5.0L SEE NOTE1
1969-1971 Torino Squire V8 5.0L SEE NOTE1

Mercury

1964-1967 Caliente Base V8 4.7L SEE NOTE1
1984 Capri RS V8 5.0L SEE NOTE1
1964-1967 Comet Base V8 4.7L SEE NOTE1
1967 Commuter Base V8 4.7L SEE NOTE1
1967-1968 Cougar Base V8 4.7L SEE NOTE1
1967 Cougar XR-7 V8 4.7L SEE NOTE1
1964-1967 Cyclone Base V8 4.7L SEE NOTE1
1964-1967 Villager Base V8 4.7L SEE NOTE1
1966-1967 Voyager Base V8 4.7L SEE NOTE1

Note 1: Not Legal For Sale Or Use On Pollution Controlled Vehicles

Marque: MSD Ignition

Référence: 8579

UPC: 85132085798
