Hedman | Long-Tube Headers for '80-96 Ford 2WD/4WD F150 Trucks & Broncos with 302 (5.0L)

Hedman - Exhaust Header

Description

Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing Ford truck headers decades. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your exhaust system to bolt up to these Ford 5.0L headers, even if it is not perfectly aligned with the header collectors.

These uncoated, LONG-TUBE headers fit 1980-96 Ford 1/2, 3/4 and 1 ton, 4WD Trucks, and 2WD or 4WD Broncos with a 5.0L (302W) engine. The long, smooth-flowing 1-1/2 in. tube design provides superb exhaust flow to let your Ford truck or Bronco's 5.0L engine breathe easy, and produce more horsepower and torque. They fit automatic transmissions only. Not designed for use with manual transmissions.

These headers are uncoated, and ship from the factory with a temporary black paint that will burn off when submitted to normal operating temperatures. For protection against the element and lower underhood temperatures, these headers are also available with a silver or black ceramic-metallic finish.

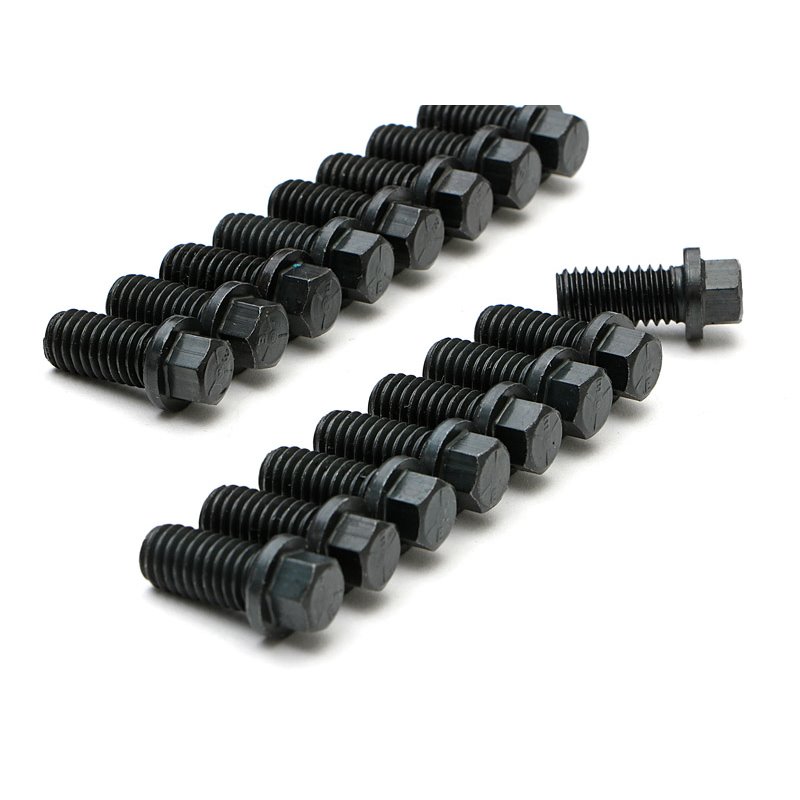

Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.

Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty.

Caractéristiques

• Air Conditioning: Yes
• Automatic Transmission - Column: Yes
• Automatic Transmission - Floor: Yes
• Bolts/Studs Included: Yes
• Catalytic Converter(s) Included: No
• Collector Attachment: 3 in.
• Collector Bolts Included: Yes
• Collector Diameter: 3 in.
• Collector Size: 3 in.
• Collector Style: BALL and SOCKET Style (Gasketless)
• Contents: headers, gaskets (when applicable), 3-bolt exhaust adapters, hardware
• Crossover Pipe Included: No
• Cylinder Head Port Shape: Square
• Cylinder Head: Stock Profile Heads
• Emissions Notes: EO# D167-27 (click here for covered vehicles in document on ARB.CA.GOV website)
• Engine Version: Ford Windsor Block (W)
• Exhaust System Dia: 2-1/2 in.
• Finish Type: UNCOATED Mild Steel! Shipped with Temporary Paint.
• Finish: Uncoated
• Flange Style: Standard
• Flange Thickness: 1/4 in. with 5/16 in. collector ring flange.
• Gasket Or Seal Included: Yes
• Header Construction: MILD STEEL- Standard-Duty
• Header Fasteners Included: Yes
• Header Finish: Uncoated
• Header Material: Mild Steel
• Header Port Shape: Square
• Header Style: Long Tube
• Installation Hardware Included: Yes
• Key Feature: 50 State Legal
• Manual Transmission - Column: No
• Manual Transmission - Floor: No
• Material: Mild Steel
• Motor Mounts Included: No
• Mounting Hardware Included: Yes
• Notes: 80-96 Ford F150, F250, F350, Bronco; 2-4WD 302 5.0L
• Package Contents: Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware
• Port Shape: Square
• Power Steering: Yes
• Primary Tube Diameter (in): 1.50 in.
• Primary Tube Gauge: 16g
• Quantity: Sold as a pair.
• Reducer Outlet Size: 2-1/2 in.
• Reducers Included: Yes
• Replacement Gasket: 27340
• Replacement Head Flange Gasket: 27340
• Tube Design: Standard
• Tube Diameter: 1-1/2 in.
• Tube Length: Long Tubes
• Tube Material Thickness: 16g
• Tube Size: 1-1/2 in.
• Tube Style: Long Tubes
• Tuned: No
• Variations: 89356, 89358
• Weld-Up: No
• with A.I.R. System: No
• with EGR: No
• Y-Pipe Included: No

Attributs

• Handcrafted, Mild Steel Construction.
• Long Tube Header Design Provides Excellent Top-End Horsepower and Torque.
• Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
• Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
• Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
• Proud To Say, Made In The USA, Since 1954!
