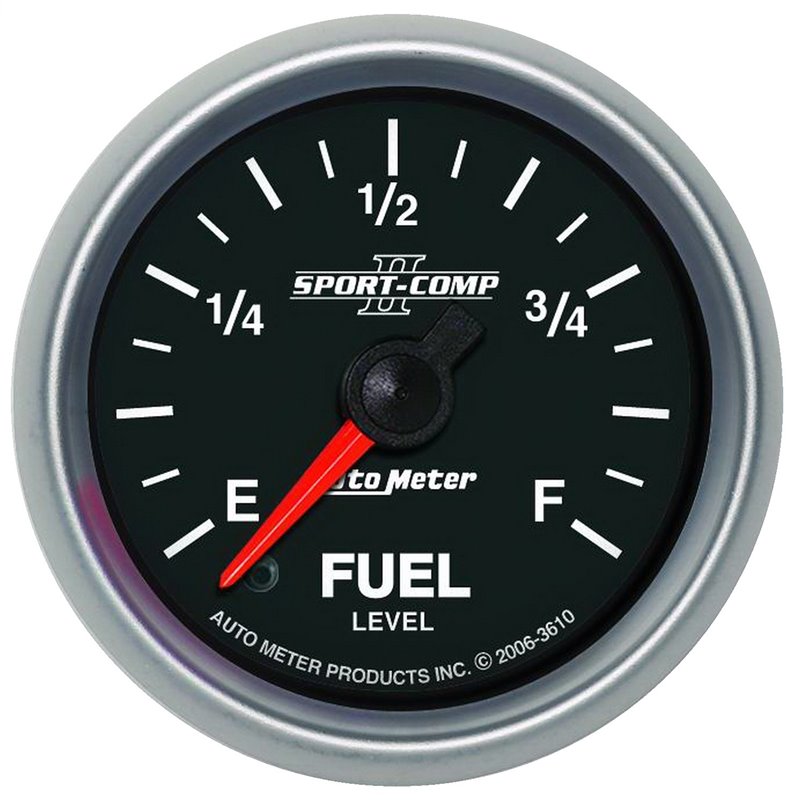

AutoMeter | GAUGE FUEL LEVEL 2 1/16in. 0-280O PROGRAMMABLE SPORT-COMP II

AutoMeter - Fuel Level Gauge



Description

Traditionally, paring the proper fuel level level gauge to the application could be a more difficult task than it needed to be. The AutoMeter Digital Stepper Motor Fuel Level Gauge drastically simplifies the process with it's easily configurable resistance range. With 7 common configurations stored in memory from the factory, the vast majority of all applications are covered. In the instance your fuel level sender is not included in these preconfigured ranges, an innovative custom calibration mode allows any sending unit that operates between 0 and 280 ohms, empty or full, to be easily paired. Our "snapshot" programming method will allow you to capture the empty and full readings and the gauge does the rest. No matter your application, there simply isn't an easier solution for fuel level monitoring available on the market. A direct plug in wiring harness is included for ease of installation.



Caractéristiques

• Analog Or Digital: Analog
• Bezel Color: Brushed Aluminum
• Bezel Style: Super Bezel
• Block Adapter Included: No
• Bulb Technology: LED
• Electric Or Mechanical: Electric
• Face Color: Black
• Fuel Line Adapter Included: No
• Gauge Adapter Included: No
• Gauge Size: 2.0625 in.
• Gauge Size: 52.4mm
• Gauge Type: Fuel Level
• Hole Size: 0.0625 in.
• Hole Size: 52.4mm
• Illuminated: Yes
• Lens: Flat Clear
• Lighting Color: White
• Lighting Type: LED
• Liquid Filled: No
• Mounting Bracket Number: 2230
• Movement Type: Electric Digital Stepper Motor
• Number Color: White
• Outer Bezel Diameter: 2.250 in.
• Pointer Color: Fluorescent Red
• Size: 2.3125 in.
• Sweep: Full
• Voltage: 8-18 V
• Wire Harness Number: 5233



Attributs

• Modern White LED Through-The-Dial Lighting
• 12 And 16V Compatible
• Incl. 20 ft. Wiring Harness
• Incl. Mounting Hardware/Instructions
• User Definable Resistance Between 0-280
• Digital Stepper Motor Provides Unmatched Accuracy
