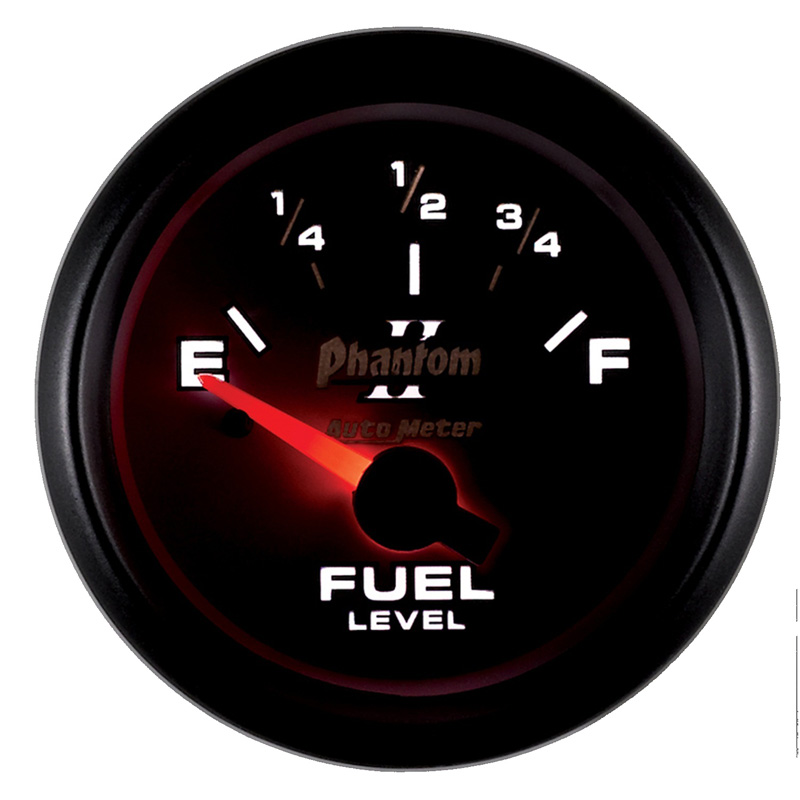

AutoMeter | GAUGE, FUEL LEVEL, 2 1/16", 0OE TO 90OF, ELEC, PHANTOM II

AutoMeter - Fuel Level Gauge

Description

One Of The Most Necessary Gauges In A Dashboard, Autometer Makes It Easy By Offering 5 Different Resistance Range Configuration To Match Your Existing Fuel Sending Unit. Available In 0-90 Ohm (Gm Mid 60S To Mid 90S), 0-30 Ohm (Early Gm), 73-10 Ohm (Pre 90S Ford And Chrysler), 16-158 Ohm (Later Model Fords) And 240-33 Ohm (Aftermarket Senders Such As The Autometer 3262). Our Patented Air Core Meter Movement Receives Extra Dampening To Help Combat The Effects Fuel Slosh In Non-Baffled Tanks.

Attributs

• 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
• Adjustable Scale w/ 7 preset ranges for common vehicle types (73E/10F, 16E/158F, 0E/30F, 0E/90F, 240E/33F, 107.5E/7F, 131E/12F)
• Autometers Race Proven Digital Stepper Motor Electric Instruments Provide Unmatched Accuracy Which Is Further Increased By Utilizing A Self Calibration Sequence During Power Up
• Gauge kit includes 20 ft. wiring harness, mounting hardware, and detailed instructions for installation
• Modern white LED through-the-dial lighting provides clear visibility during nighttime use
• User definable resistance setting programmable anywhere between 0-280 ohms
