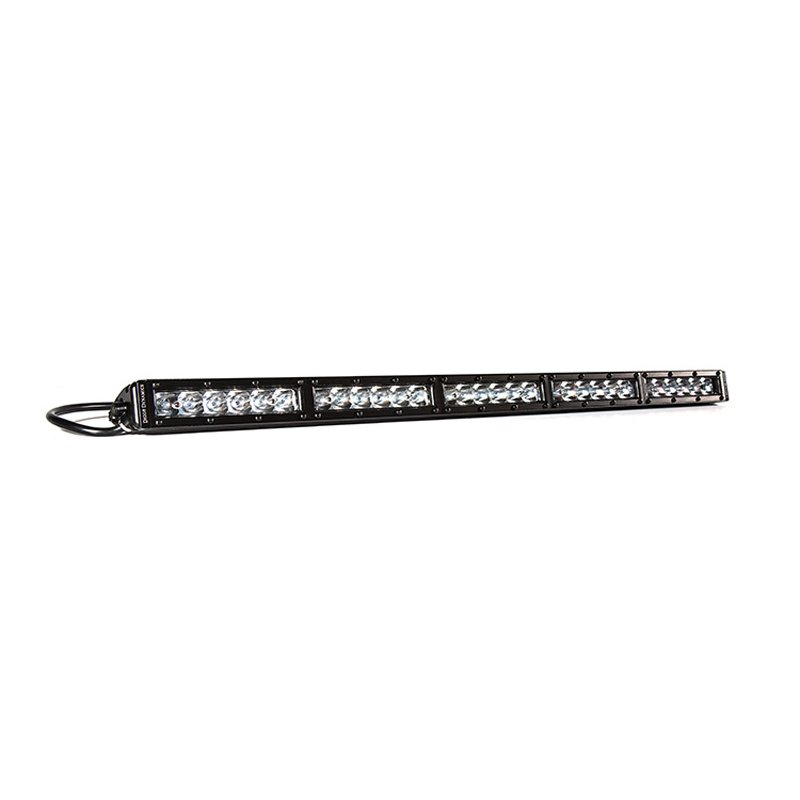

Diode Dynamics | Light bar featuring advanced TIR optics for high efficiency and focus. - Forester 2.0T / 2.5L 2016-2018

Diode Dynamics - Light Bar

Description

Features

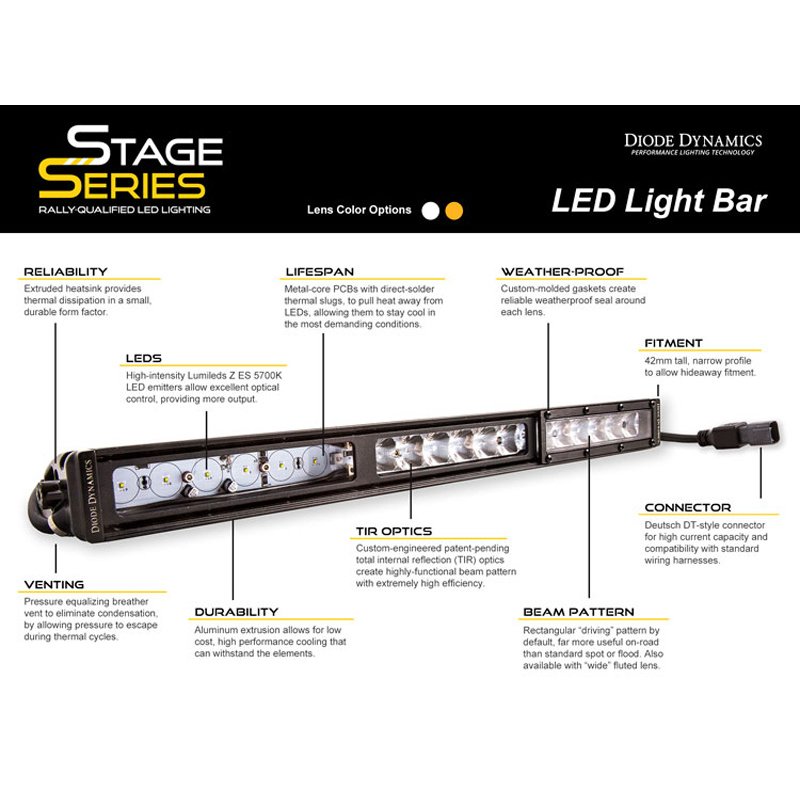

• Advanced TIR optics provide high efficiency and focus
• High-intensity automotive-type LEDs with pure white color
• Available in Driving Flood or Combo beam patterns
• Slim 42mm housing for low-profile fitment
• Durable matte powdercoated extrusion

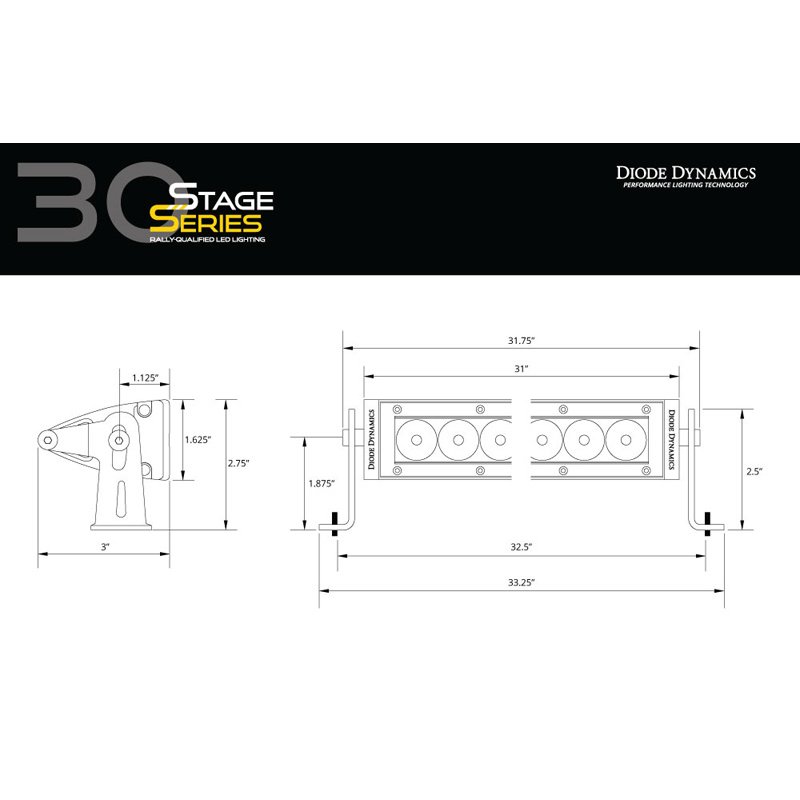

Compact. The lightbar is based on a narrow-profile extruded housing to allow fitment in small and tight areas. At less than 42mm tall they'll fit in many places a traditional dual-row light bar won't while cutting total weight as well.

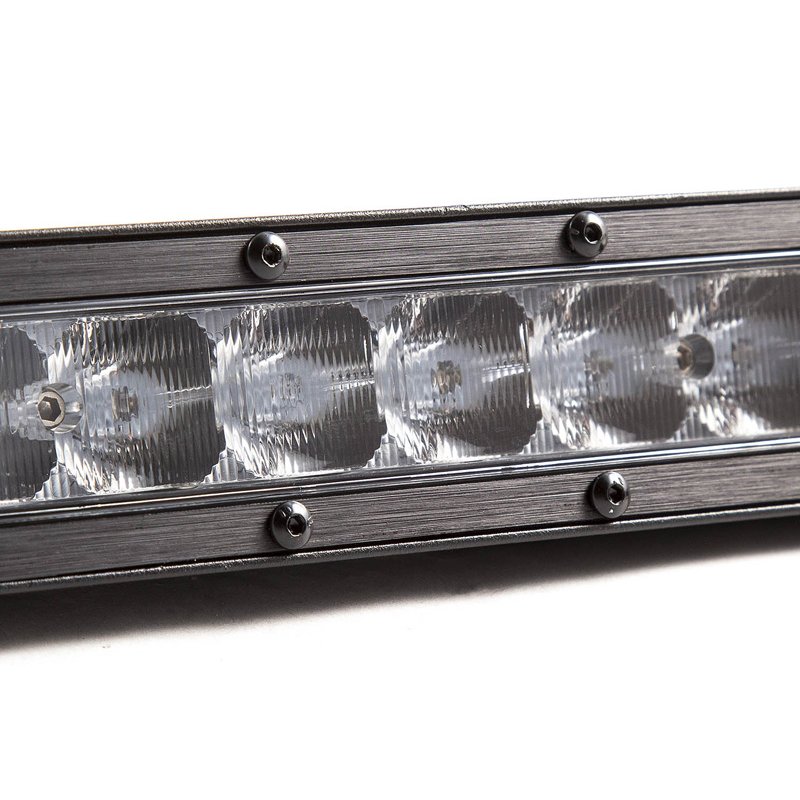

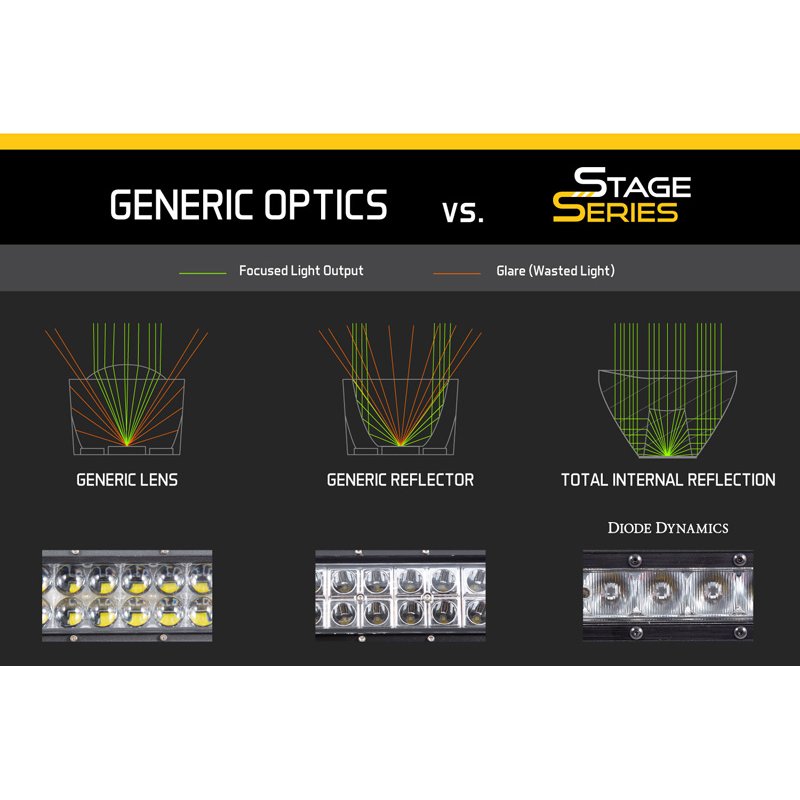

Focused. Thanks to the high-intensity Lumileds LED chips coupled with our U.S. PATENT PENDING total internal reflection (TIR) optic the total intensity is far higher than a standard generic light bar. The TIR optic collects all of the light from the LED and directs it only where you need it drastically reducing glare and improving total efficiency.

Functional Patterns.

The Driving pattern was designed to supplement your high beams. Rather than a simple spot pattern the Stage Series Driving pattern has a rectangular 30x20 degree pattern that is far more useful for directing light downrange at high speeds.

The Flood pattern was designed to provide uniform even illumination and a full 80x50 degree spread of light. Unlike generic flood light optics that are simply a heavily diffused spot our flood optic is a true optically designed spread resulting in the biggest spread in the industry! It is perfect for lighting up anything at low speeds a backup or reverse light or to light up a worksite.

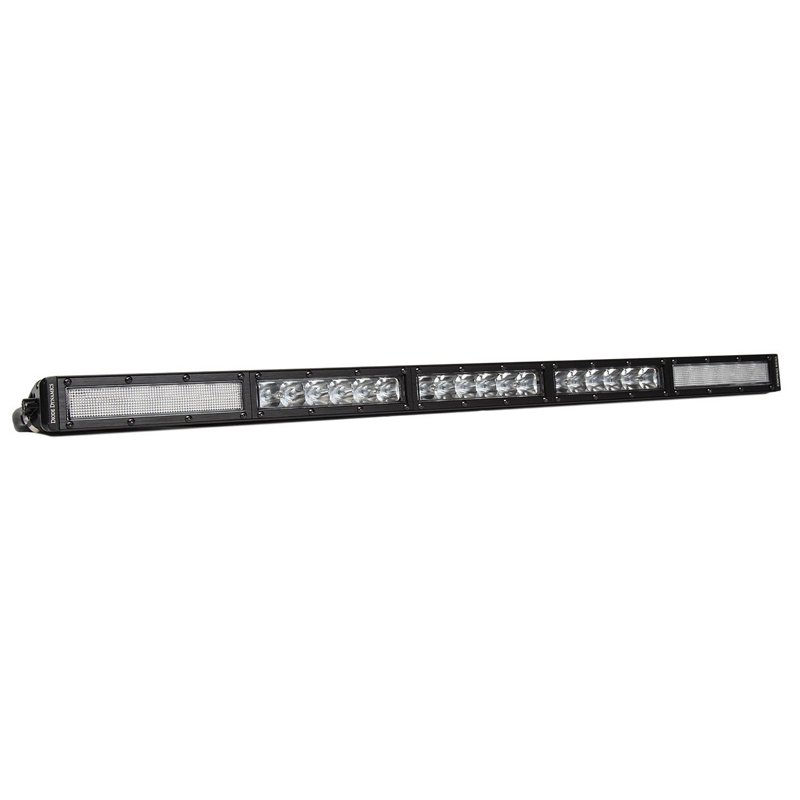

The Combo pattern combines both the Driving and Flood optics. It shines light downrange in a focused rectangular 30x20 degree pattern while also illuminating area around it in a full 80x50 degree spread.

Caractéristiques

• 123: 9-24V
• 1268: No
• 1271: No
• 1277: Rectangle
• 1289: 6 IN
• 1290: 1.625 IN
• 1451: Black
• 2087: 6 IN
• 2563: Polycarbonate
• 2782: Steel
• 29: Pin
• 30: Yes
• 488: No
• 532: Black
• 6452: No
• 9578: Combination
• Add-On: N/A

Attributs

• Advanced TIR optics provide high efficiency and focus
• Durable matte powdercoated extrusion
• High-intensity automotive-type LEDs with pure white color
• Slim 42mm housing for low-profile fitment
