Diode Dynamics | Pod light featuring advanced TIR optics for high efficiency and focus. - F-150 2021-2023

Diode Dynamics - Light Bar Mounting Kit

Description

Overview

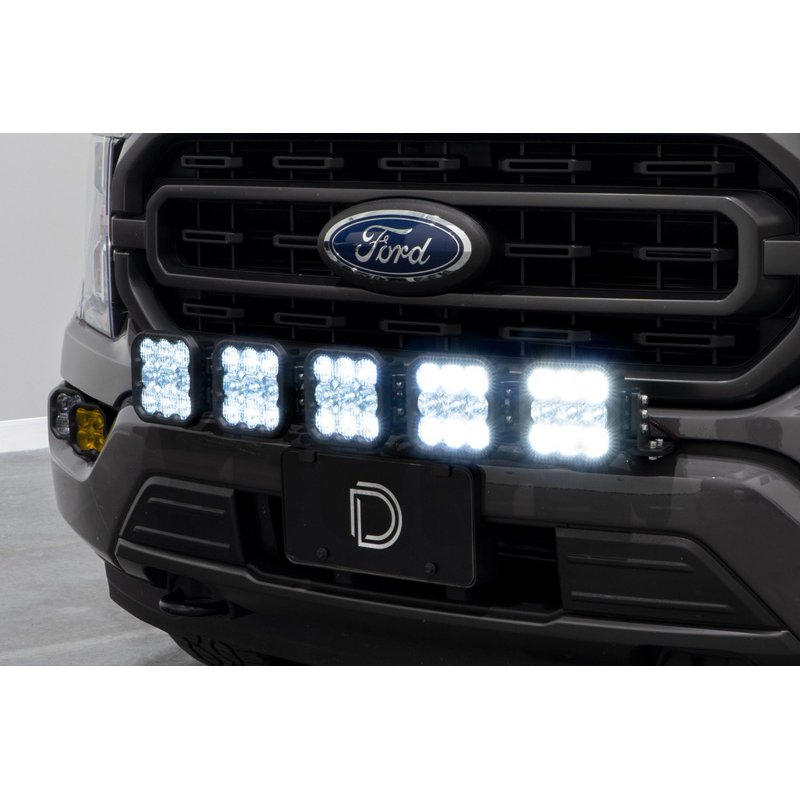

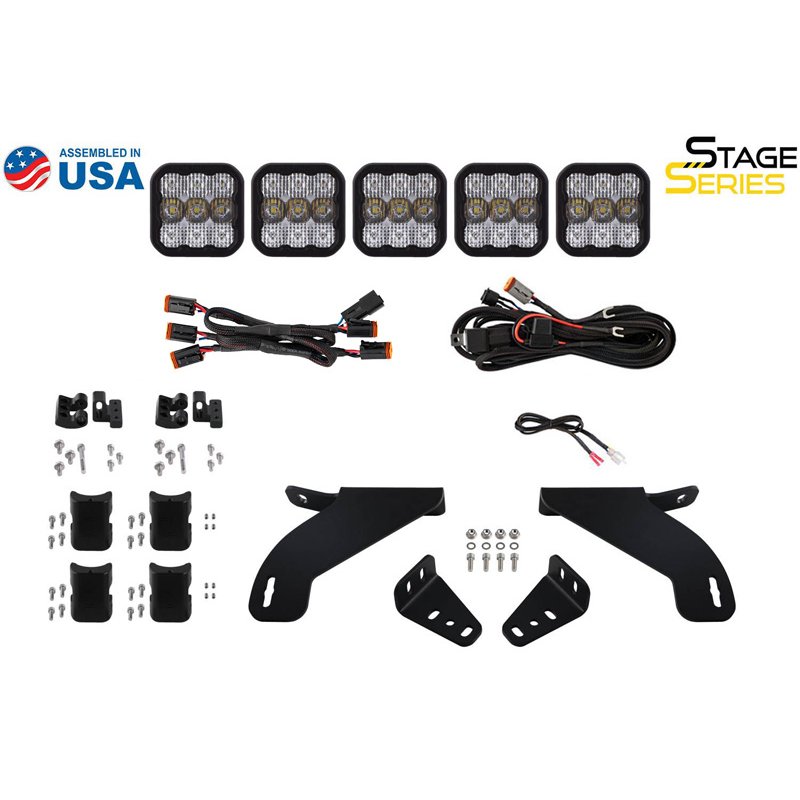

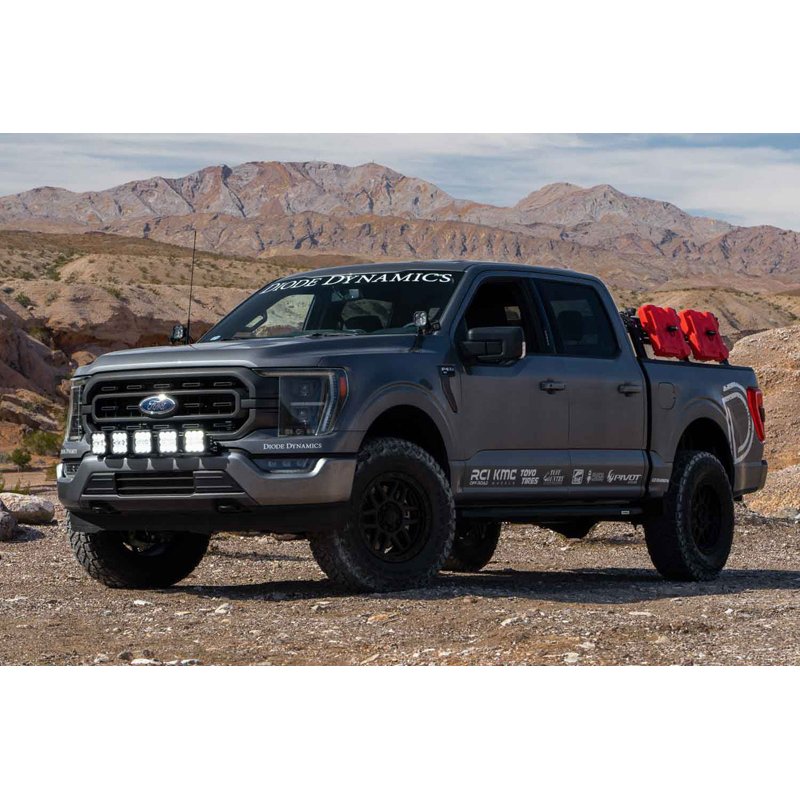

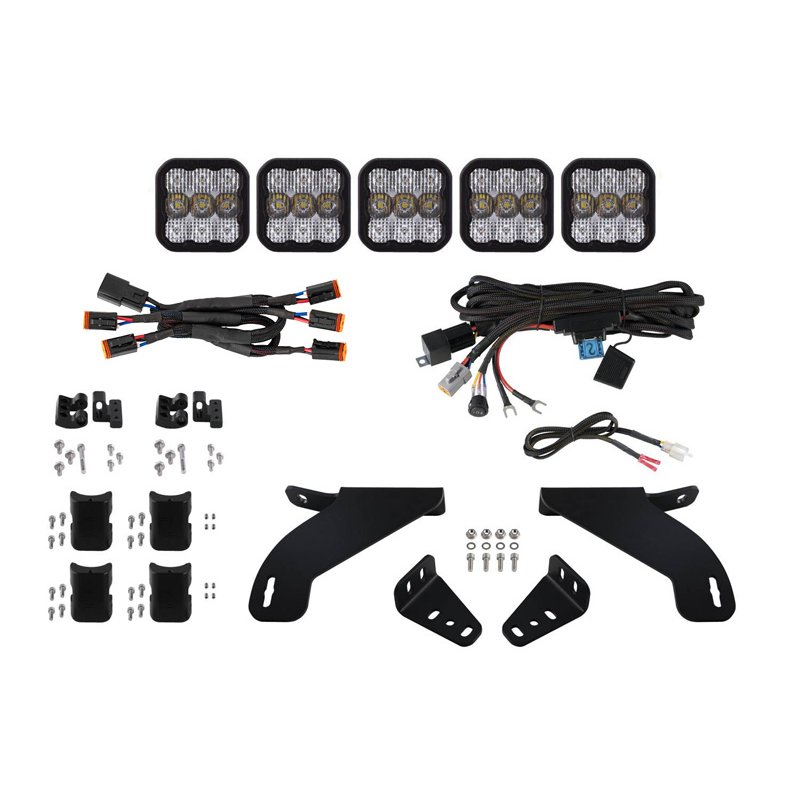

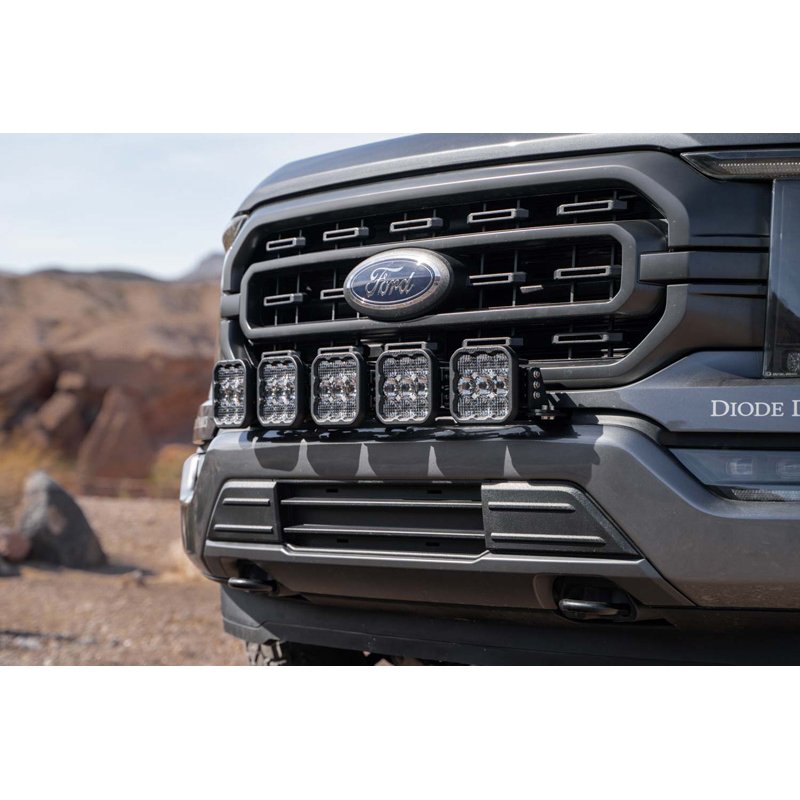

Perfect Fitment. The Grille CrossLink Lightbar Kit compatible with Ford F-150 2021+ from Diode Dynamics allows you to mount five linked SS5 LED pods on the factory grille. These application-specific brackets were CAD-designed to bolt into place using factory mounting points on the grille. No cutting or drilling required!

Designed for Performance. Featuring the highest output intensity of any 5-inch LED pod on the market these lamps have been designed for maximum functionality with patented technology and custom-engineered TIR optics all in a durable package.

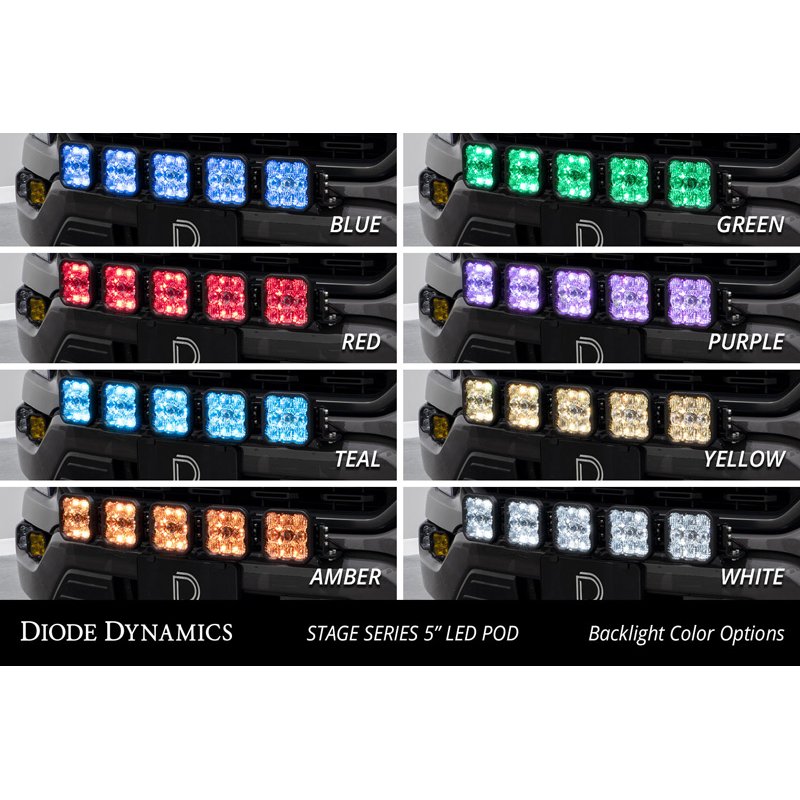

Selectable Backlight. The Stage Series 5inch LED Pods included in the White kit feature a selectable backlight with eight different color options perfect for an extra styling accent or for more visibility when you(TM) re not using the main beam. Selecting your backlight color is easy - simply alternate the power on and off. There(TM) s no complicated programming with a controller! The SS5's backlight fully illuminates the TIR optic providing unique accent lighting that you won't find on other LED pods. NOTE: Due to the yellow lens the Yellow kit is only available with an Amber backlight color.

CrossLink. Our patent-pending CrossLink technology allows you to link up to eight SS5 pods together to create your own lightbar. The single-piece CNC aluminum link provides extreme rigidity but is fully adjustable. This kit was designed for a curved configuration.

Caractéristiques

• 1336: Flat
• 1451: Black
• 1775: No
• 2357: Medium
• 2782: Steel
• 30: Yes
• 3145: Specific
• Add-On: N/A
• Color Temp: 6000K
• Compliance Rating: SAE J575 Durability Test
• Input Power (watts): 90
• Intensity (lux): 75 700 cd
• Measured Output (lumens): 9 600 lm
• Operating Temperature: -40C to 85C (-40F to 185F)
• Operating Voltage: 9-16V

Attributs

• Advanced TIR optics provide high efficiency and focus
• Durable powdercoated aluminum construction
• High-intensity automotive-type LEDs
• Integrated Deutsch-style connector
• Pin-fin heatsink design

Noter:
