Diode Dynamics | Pod light featuring advanced TIR optics for high efficiency and focus. - Dodge / Ford / Subaru 2009-2024

Diode Dynamics - Fog Light Kit

Description

Features

• Advanced TIR optics provide high efficiency and focus
• SAE-compliant road-legal output
• Includes round bezel for factory-style appearance
• Plug and play no modification needed
• Durable powdercoated aluminum extrusion
• Engineered and Assembled in USA

Overview

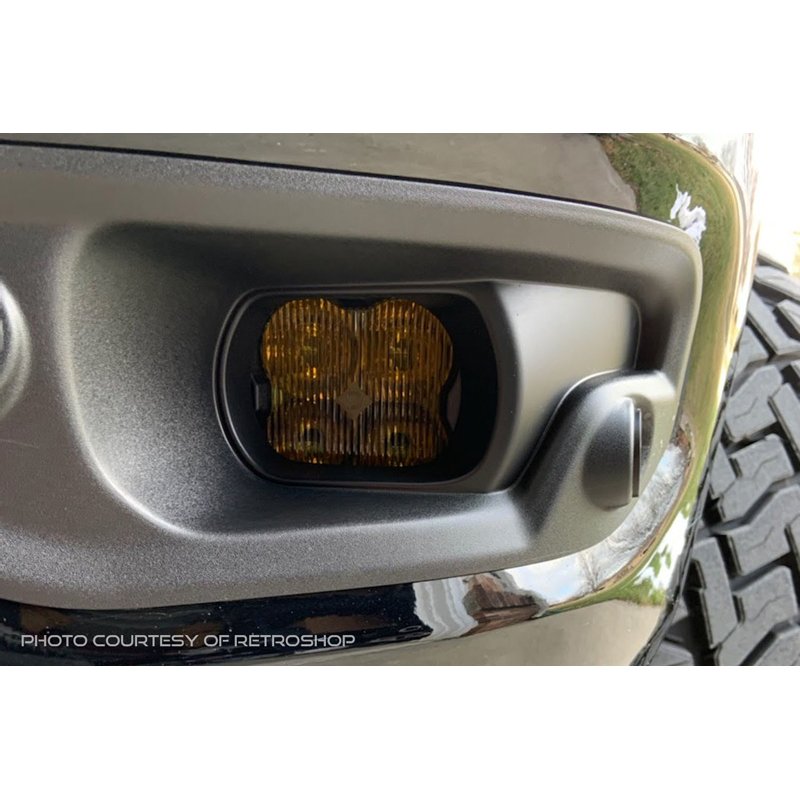

Overview. Upgrade your fog lights with our SS3 Type AS Fog Light Bracket Kit! Featuring higher output intensity than any other 3in light on the market these LED pods have been designed for maximum functionality with custom-engineered TIR optics shining in highly useful beam patterns all in a durable package. With the included round bezel the SS3 Fog Kit has a clean factory-style appearance only much brighter!

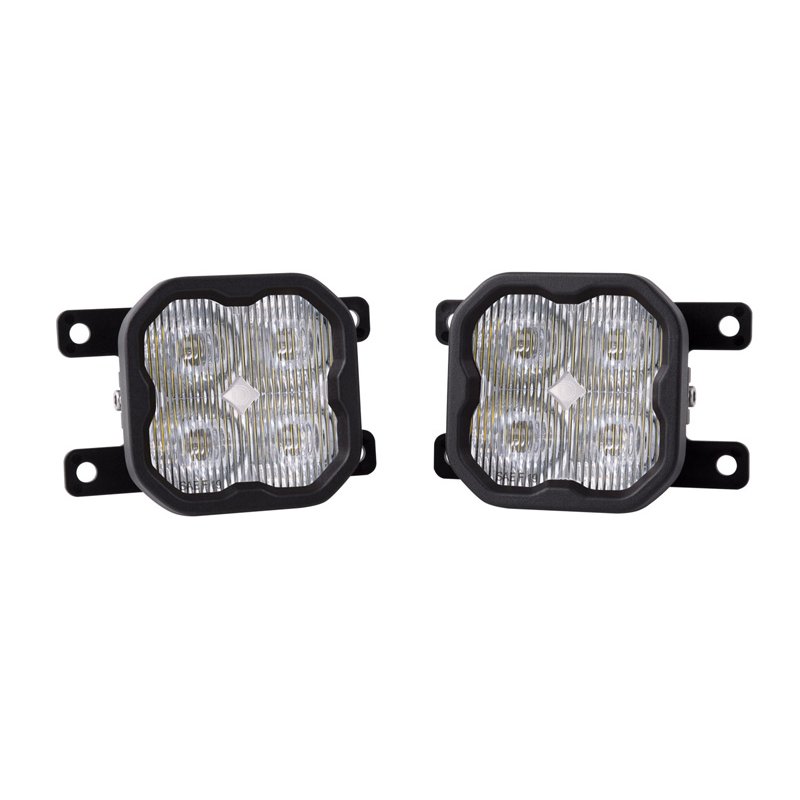

Plug and Play. Thanks to custom-molded brackets the SS3 Fog Light Bracket Kit can be installed on your vehicle in minutes. Simply remove your factory fog light assembly and ours will bolt right in its place! Wire adapters are included with the kit allowing you to connect the lights to your factory bulb sockets - no additional wiring needed!

Backlight Functionality. The Stage Series 3in LED Pod is now available with a distinctive backlight in a brilliant amber color. The SS3's backlight fully illuminates the TIR optic providing a more unique and modern look than the small indicator LEDs found in other products.

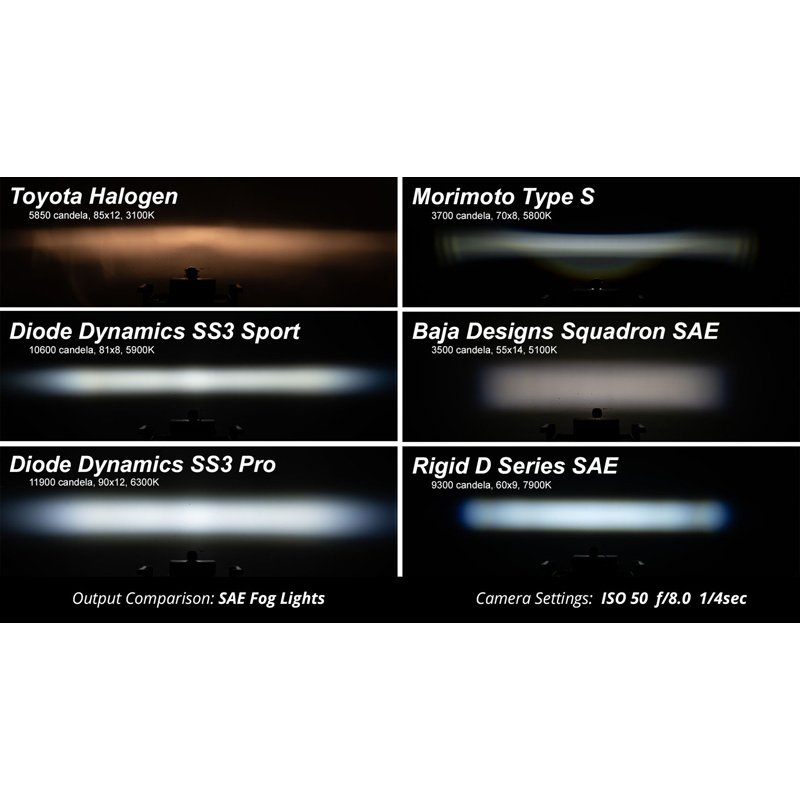

SAE Compliant. When installed as a pair and aimed in accordance with your state's regulations the Driving White pattern meets SAE J581 standard as a Driving/Auxiliary High Beam Light and the Fog pattern meets SAE J583 standard as a Foglamp for legal on-road use.

Caractéristiques

• 123: 9-30V
• 1268: Yes
• 1271: Yes
• 1274: No
• 1276: Clear
• 2202: Black
• 2563: Polycarbonate
• 29: Pin
• 30: Yes
• 3390: Performance
• 357: Aluminum
• 4840: Rectangular
• 4841: Black
• 5121: 0
• 975: 38.5
• Add-On: N/A
• Color Temp: 6000K
• Compliance Rating: SAE J583 Foglamp Beam Pattern
• Input Power (watts): 38.5
• Intensity (lux): 18,000 cd
• Measured Output (lumens): 3,500 lm
• Operating Temperature: -40C to 85C (-40F to 185F)
• Operating Voltage: 9-30V

Attributs

• Advanced TIR optics provide high efficiency and focus
• Durable powdercoated aluminum construction
• High-intensity automotive-type LEDs
• Integrated Deutsch-style connector
• Pin-fin heatsink design
