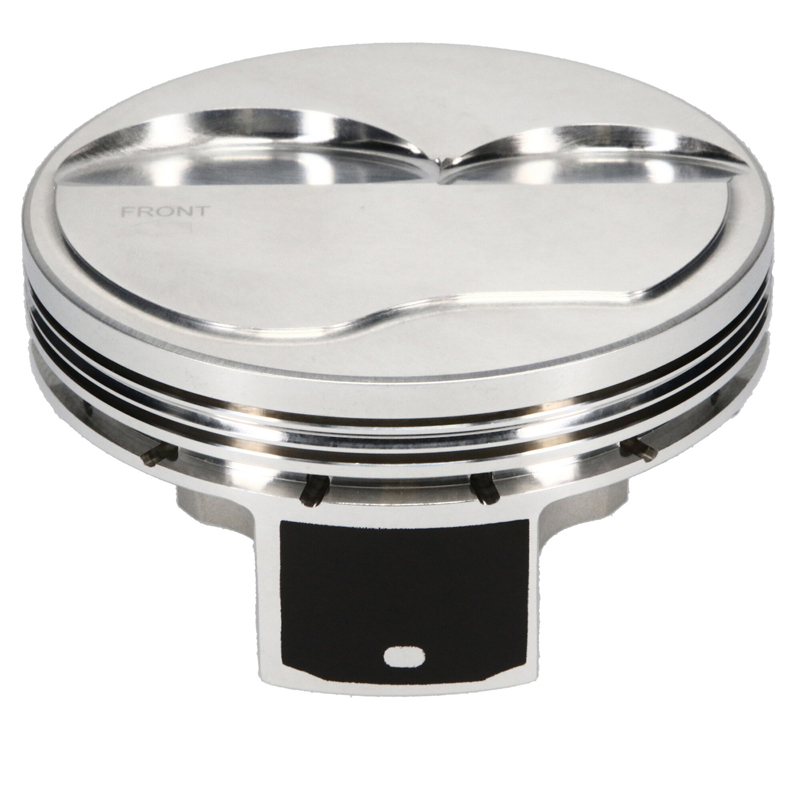

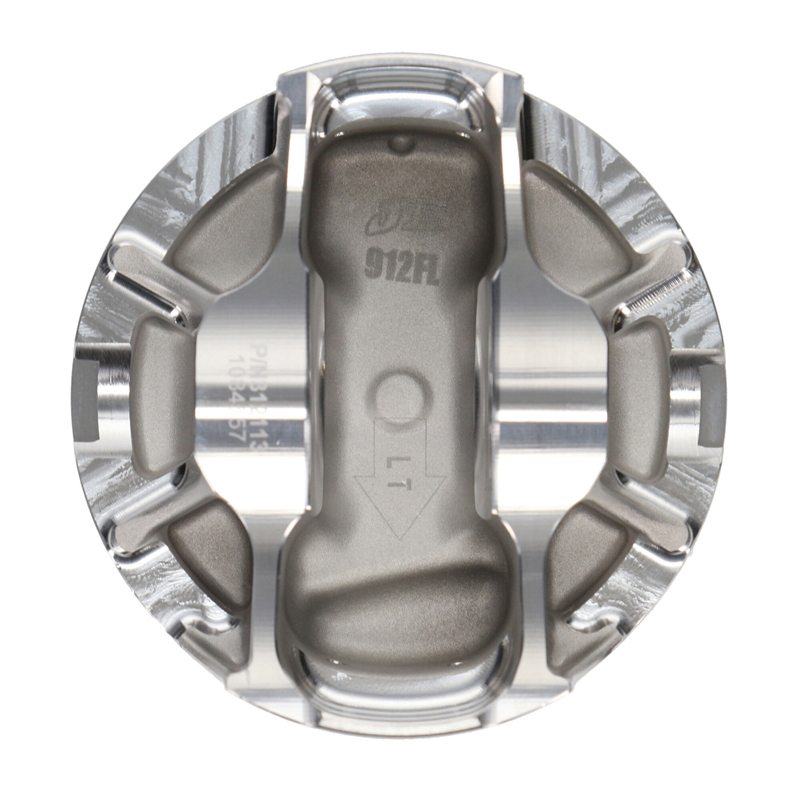

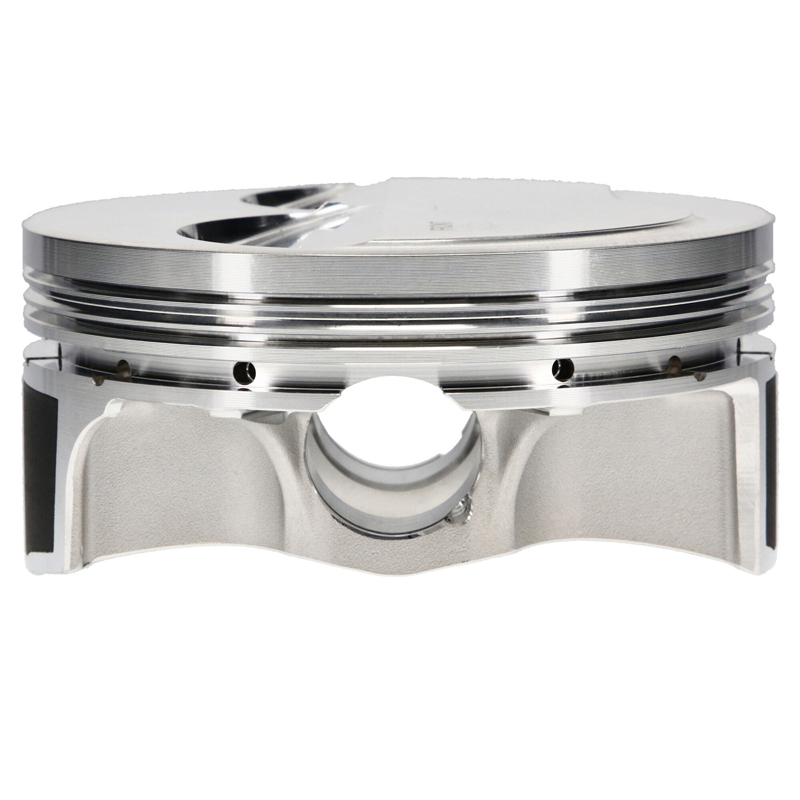

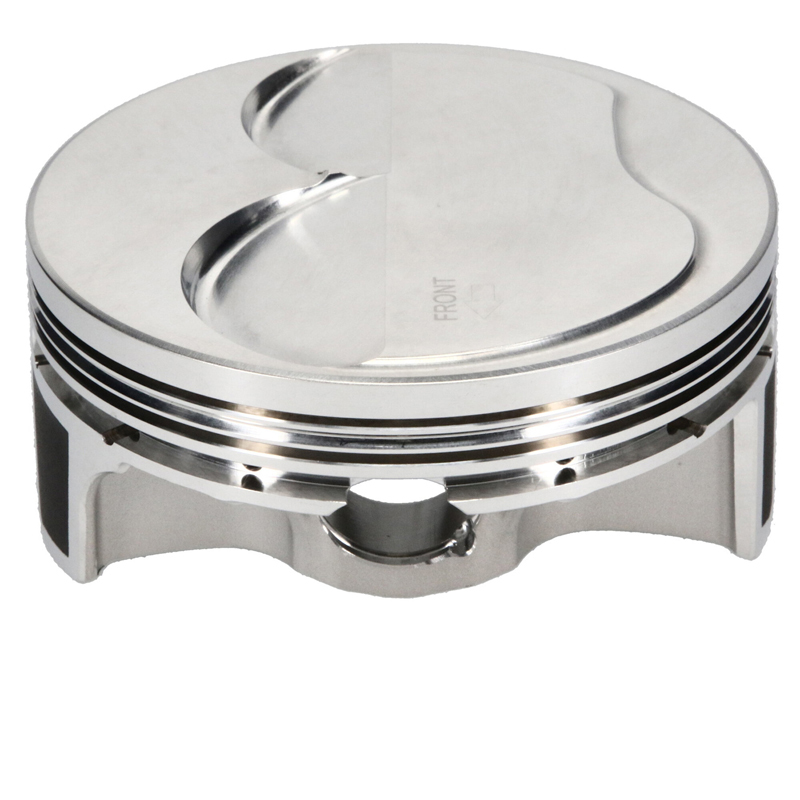

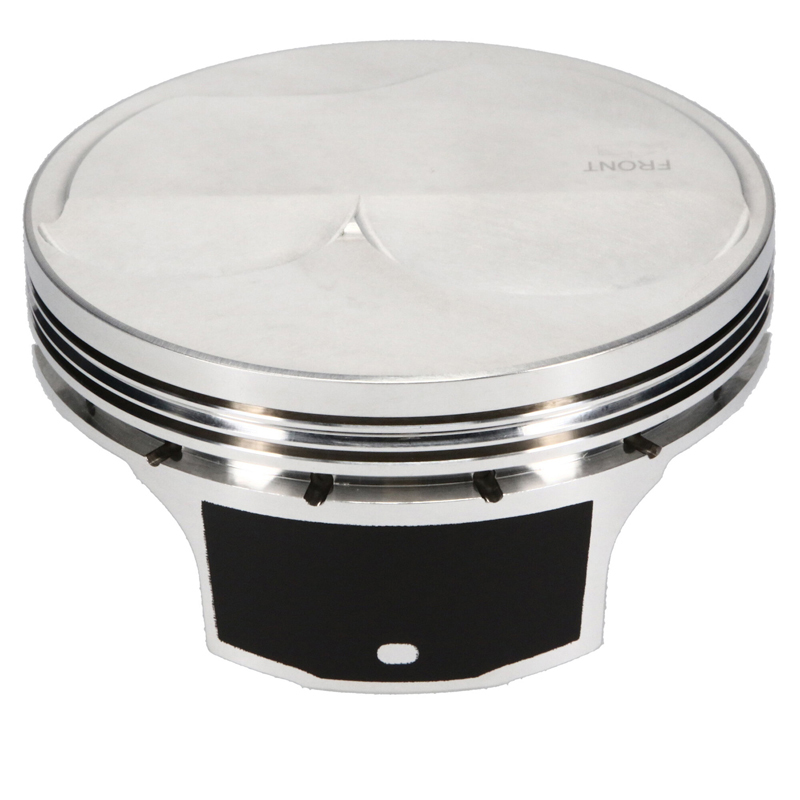

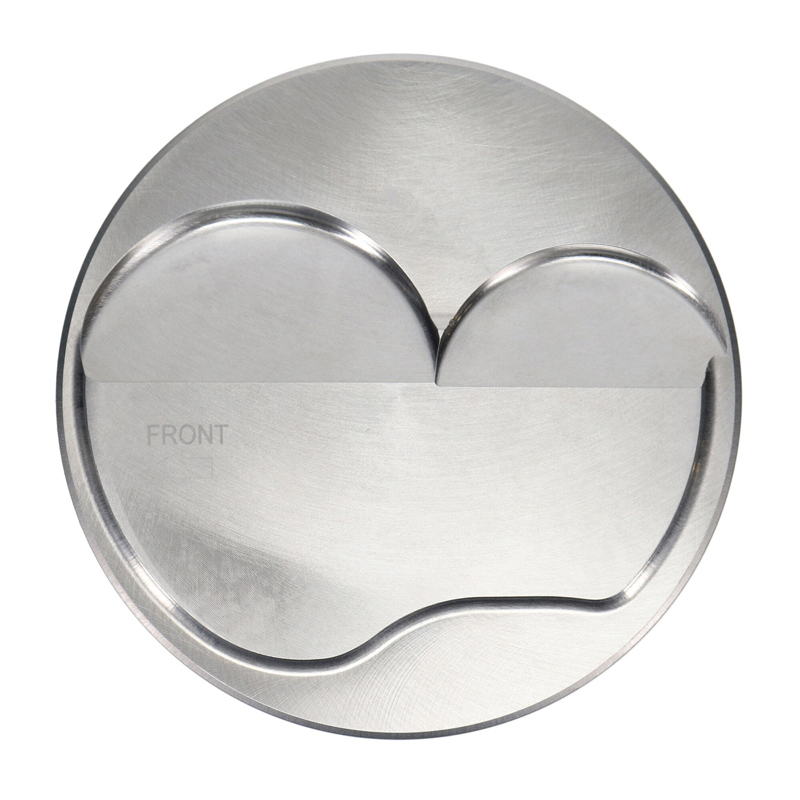

JE Pistons | Piston Set, 2618, Dome, 4.070 Bore, 1.065 CD, 0.927 Pin, Set of 8.

JE Pistons - Engine Piston Set

Description

JE Pistons asymmetrical FSR (Forged Side Relief) piston line incorporates modern forging design with a larger skirt on the major thrust side and smaller, friction-reducing skirt on the minor thrust side. Combined with precision CNC machining, the result is a high-strength, lightweight piston that is extremely durable.

Caractéristiques

• Cylinder Head: GM LS1 15 DEG
• Add-On: JG31F8-4070-0
• Add-On: 927-2250-15-51C
• Add-On: 927-073-MW
• Bore Diameter: 4.070 IN
• Compression Height: 1.065
• Piston Volume: 1.1 CCM
• Piston Avg Wt: 413 GR
• Piston Material: 2618
• Forging Type: FSR
• Piston Head Type: Dome
• Ringset Included: No
• Top Compression Ring Thickness: 0.048
• Second Compression Ring Thickness: 0.06
• Oil Ring Thickness: 0.149
• Piston Pin Outside Diameter: 0.927 IN
• Piston Pin Length: 2.250 IN
• Piston Pin Material: 5115
• Piston Pin Wall Thickness: 0.150 IN
• Product Type: Piston Kits
