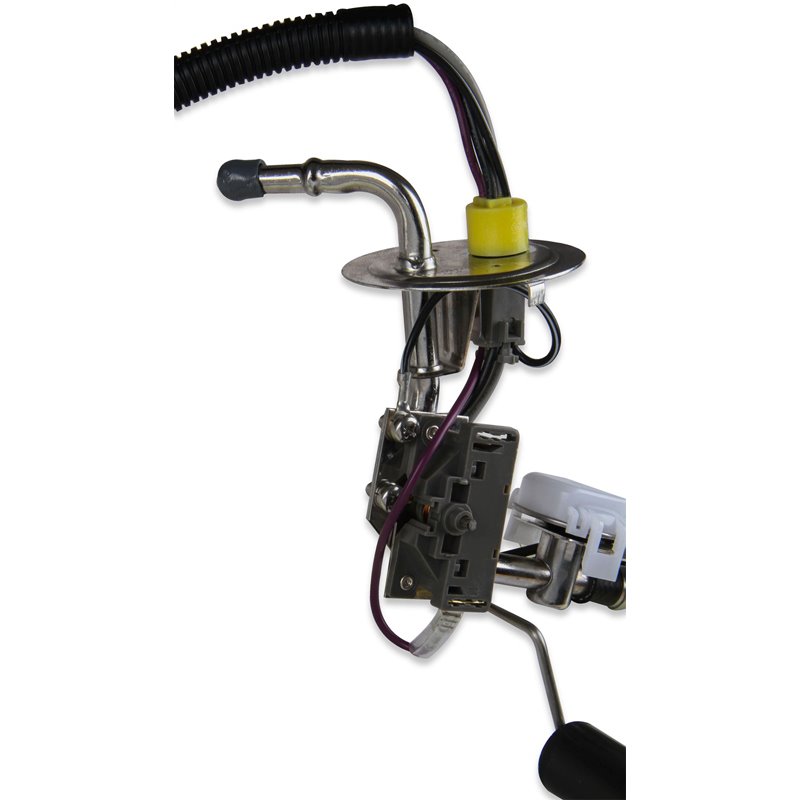

Holley | EFI Fuel Pump Module - Mustang 1964-1970

Holley - Fuel Pump Module Assembly

Description

This in-tank fuel pump module is a high-pressure unit that flows 255 liters per hour (LPH) and is capable of supporting electronic fuel injection (EFI) engines producing up to 550 horsepower A pre-calibrated fuel-level sending unit designed to work with the factory fuel gauge for this application is included This module also features a HydraMat filter which has a unique internal reservoir that keeps fuel available at the pick-up and also provides protection from contaminates Fuel pressure is internally regulated to 58 psi eliminating the added expense and effort of purchasing and installing an external fuel pressure regulator - no separate return line is required because this module returns excess fuel right inside the tank! This 1964-70 Mustang Muscle Car EFI Fuel Pump module was designed as a direct replacement for your factory pick-up and sending unit. There is no need to purchase a custom EFI fuel tank. You can even retain the factory fuel hard line - just connect the outlet of the pump module to the hard line on your vehicle with EFI-rated fuel hose and hose clamps available in the Earls Vapor Guard line. This Muscle Car EFI Module includes a 255 LPH fuel pump and a Holley HydraMat. HydraMat is an amazing patent-pending fuel reservoir system that reduces fuel starvation issues that might otherwise occur while cornering, accelerating, stopping, traversing inclines, and during low fuel conditions. This new kit has all of the extra components to fit all three sizes of Mustang fuel tanks from 1964-1970. You choose which fuel gauge float arm for your factory fuel tank size!Fitment:1964-68 Mustang -16 gallon tank1969 Mustang- 20 gallon tank1970 Mustang- 22 gallon tank1960-1965 Falcon- 16 gallon tank1960-1963 Comet- 16 gallon tank

Attributs

• High Press. 255-lph Unit Capable Of Supporting EFI Engines 550HP
• Incl. Pre-Calibrated Fuel-Level Sending Unit
• Designed To Work w/Factory Fuel Gauge Already In Vehicle
• Incl. HydraMat Fuel Mat w/Internal Reservoir
• Keeps Fuel At The Pickup While Protecting From Contaminates
• Pressure Is Regulated Internally / Preset To 58psi
• Eliminates Added Expense Of External Fuel Pressure Regulator
• That Is Right - This Means No Return Line Needed
• All Return Fuel Is Handled Inside The Tank
