CURT | Xtra Duty Class 5 Trailer Hitch, 2" Receiver

CURT - Xtra Duty Class 5 Trailer Hitch, 2" Receiver

Description

When we came to the limits of towing capacity, we wanted to know what else was out there. What could we discover off the beaten path? So, we kept going. CURT class 5 Xtra Duty hitches begin a class of their own, beyond class 4 and beyond anything the standards dictate. They are designed for the hard road where only full-size pickup trucks, vans and SUVs dare to tread. They are capable of pulling almost any heavy-duty trailer, including toy haulers, dump trailers, logging trailers, small yacht trailers and more (NOTE: Never exceed the lowest weight capacity of any towing component). This particular Xtra Duty class 5 trailer hitch offers a gross trailer weight capacity of 16,000 lbs. and an extra-high tongue weight capacity of 2,400 lbs. It features a 2" x 2" receiver tube opening to accept a ball mount or hitch-mounted accessory, such as a cargo carrier or winch mount. It is designed to be a custom-fit trailer hitch for certain years of the Chevy Express 1500, 2500 or 3500 and GMC Savana 1500, 2500 or 3500 (to verify compatibility with your vehicle, see application info). For a little extra towing power and stability, this class 5 hitch can also be used in combination with a weight distributing hitch. It is rated for 17,000 lbs. WD and 2,400 lbs. WDTW. In our drive to create a more powerful hitch, CURT has not neglected the finer details. Our class 5 trailer hitches are welded with precision and go through multiple stages of cleaning to create a smooth surface that is ready to accept our co-cured finish. To protect them from corrosion, chipping and UV damage, these hitches are immersed in a liquid A-coat and then finished in a high-quality black carbide powder coat. They come with grade-8 mounting hardware for solid installation.

Caractéristiques

• Finish: CARBIDE BLACK POWDER COAT
• Installation Difficulty: Easy
• Installation Time Exact (Minutes): 30
• Main Body Shape: Square
• Receiver Tube Size (Inches): 2 IN
• WC / TW (Pounds): 16,000 LB / 2,400 LB
• WD / WDTW (Pounds): 17,000 LB / 2,400 LB
• Weight Carrying Capacity (Pounds): 16,000 LB
• WC Tongue Weight (Pounds): 2,400 LB
• Weight Distribution (Pounds): 17,000 LB
• WD Tongue Weight (Pounds): 2,400 LB
• Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)

Attributs

• Rated to 16,000 lbs. gross trailer weight and 2,400 lbs. tongue weight
• Compatible with weight distribution hitch (17,000 lbs. WD / 2,400 lbs. WDTW)
• Engineered with a vehicle-specific design for a custom fit

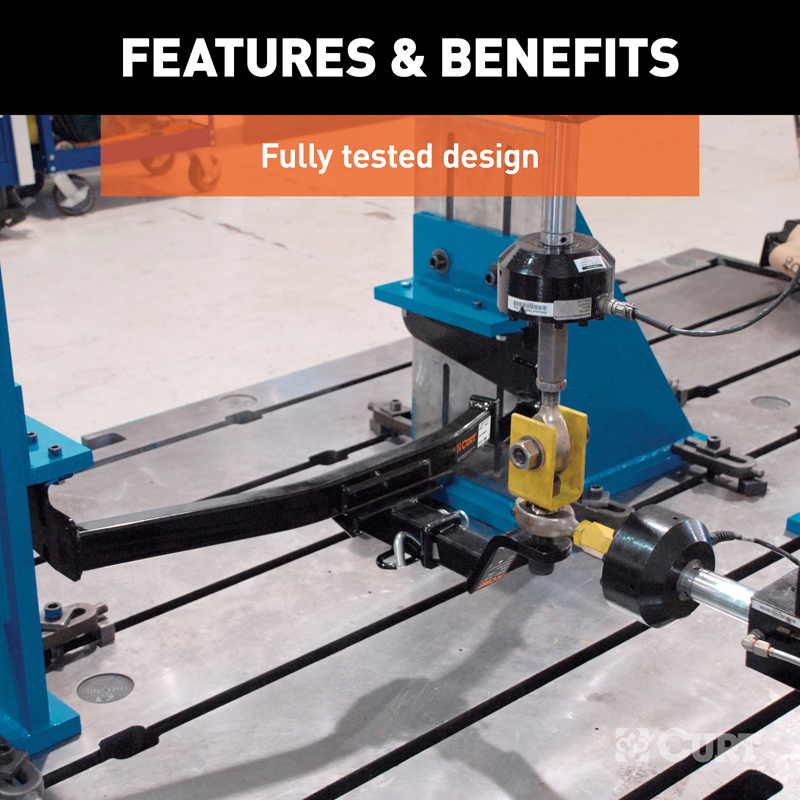

• Tested for safety in accordance with SAE J684
• Precisely welded for superior strength and fit
• Constructed with a large, powerful main body
• Protected by a highly durable carbide powder coat finish
• Co-cured in a rust-resistant liquid A-coat, inside and out
• Features wide safety chain openings for heavy-duty hooks
• Equipped with an open-back receiver for easy cleaning
• Limited lifetime warranty (one-year finish, one-year parts)
• Made in USA (may include imported hardware)
• Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
• Includes strong, grade-8 installation hardware

Fitment Notes

• Drilling Required: No
• Installtion Difficulty: Easy
• Installation Time Exact (Minutes): 30
• Main Body Shape: Square
• Note: Except Cutaway Models
• Receiver Tube Size (Inches): 2 IN
• Visibility: Exposed
• WC / TW (Pounds): 16,000 LB / 2,400 LB
• WD / TW (Pounds): 17,000 LB / 2,400 LB
• Weight Carrying Capacity (Pounds): 16,000 LB
• WC Tongue Weight (Pounds): 2,400 LB
• Weight Distribution (Pounds): 17,000 LB
• WD Tongue Weight (Pounds): 2,400 LB

Cliquez ICI pour voir les instructions
