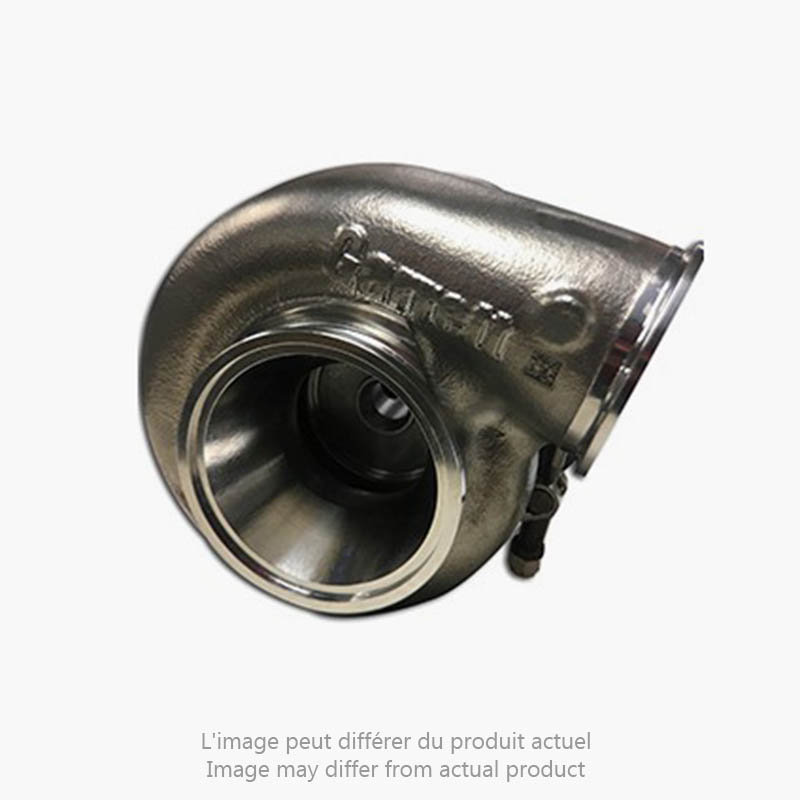

Turbine Kit

Individually packaged turbine exhaust housings. Connections and size vary between models. Gasket kit, bolts, clamps, V-band/s included. Weld flanges are not included.

• Reverse rotation turbine housings are not interchangeable with standard rotation supercores
• GT | GTX | GTX Gen II turbine housings are interchangeable within the frame family. (GT30 | GTX30 | GTX30 Gen II)
• G Series housings are not interchangeable with GT | GTX | GTW
• GTW housings are not interchangeable with GT | GTX | G Series
• Some options may require modifications to the exhaust system to fit
• Always double check before purchasing

Garrett G Series

Garrett G Series turbochargers feature the latest innovations in turbocharger technology. This clean sheet product has our highest performing compressor and turbine aero to date. Countless engineering hours have been spent to create the perfect blend of efficiency and performance in a compact package. Advanced features tailored to meet the demands of hard core competitors making G Series the most powerful turbochargers on the market.

STANDARD AND REVERSE ROTATION turbochargers are offered in the G Series product line up to G35 frame sizes. Reverse rotation turbochargers are mirrored in appearance and rotate counter clockwise. Reverse rotation components are not interchangeable with standard rotation components and housings.

STAINLESS STEEL TURBINE HOUSINGS are offered with all G Series turbochargers. It's high heat tolerance paired with high tincile strength make a robust product that looks and performs to Garrett standards.

INTERNALLY WASTEGATED configurations available for in both standard and reverse rotation. Turbochargers are fully assembled and calibrated with a 1.0 bar actuator.

TWIN PISTON RINGS on both sides of the shaft combined with a new oil deflector help reduce oil leakage from the center housing to the compressor and turbine stage.

BEARING CARTRIDGE new compact cartridge features ceramic ball bearings resulting in less heat transfer to the oil. Steel bearing cages improve the durability of complete assembly.

COMPRESSOR WHEEL forged fully machined with improved aero flows up to 15-30% more air than other Garrett turbos. Lightweight construction and CFD designed and manufactured by Garrett engineers.

Features

• Part Type: Turbine Kit
• Serie: G30
• Turbo Rotation: Reverse
• Turbine Inducer: 60mm
• Turbine Exducer: 55mm
• Turbine Trim: 84
• Turbine A/R: 0.83
• Turbine Inlet: V-Band
• Turbine Outlet: V-Band
• Turbine Wastegate: FreeFloat
• Turbine Divided: No
• Interchangeable Supercore(s): G30-660/G30-770/G30-900
