Edelbrock | Engine Valve Spring Kit - Camaro / Corvette / Monte Carlo / Firebird 1963-1992

keyboard_arrow_left

keyboard_arrow_right

zoom_in

Edelbrock

Edelbrock | Engine Valve Spring Kit - Camaro / Corvette / Monte Carlo / Firebird 1963-1992

Name: Edelbrock | Engine Valve Spring Kit - Camaro / Corvette / Monte Carlo / Firebird 1963-1992
Brand: Edelbrock
SKU: 5703
Price: 112.56 CAD
Availability: InStock

Part #: 5703

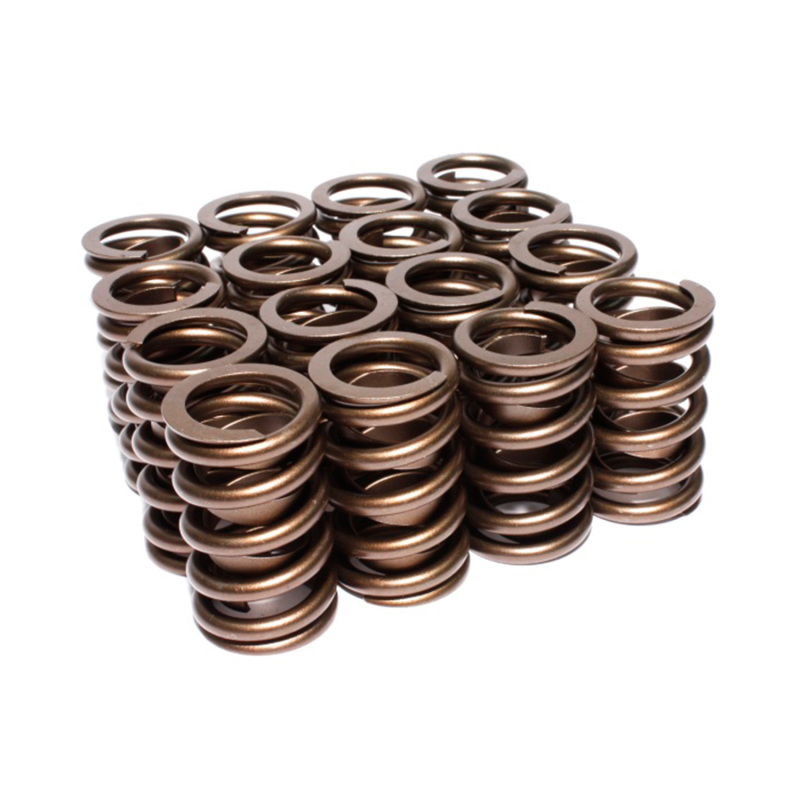

The Edelbrock #5703 Sure Seat Valve Spring for S/B Chevy O.E Cast iron cylinder heads are for use on original equipment heads when installing Edelbrock Performer-Plus, Performer RPM and Torker-Plus camshafts.

LIVRAISON GRATUITE

CAD $112,56 CAD $140,70 Économisez 20% - BLACK FRIDAY

FIÈREMENT CANADIEN
GARANTIE DU MEILLEUR PRIX
COMPATIBILITÉ GARANTI

Edelbrock - Engine Valve Spring Kit

Description

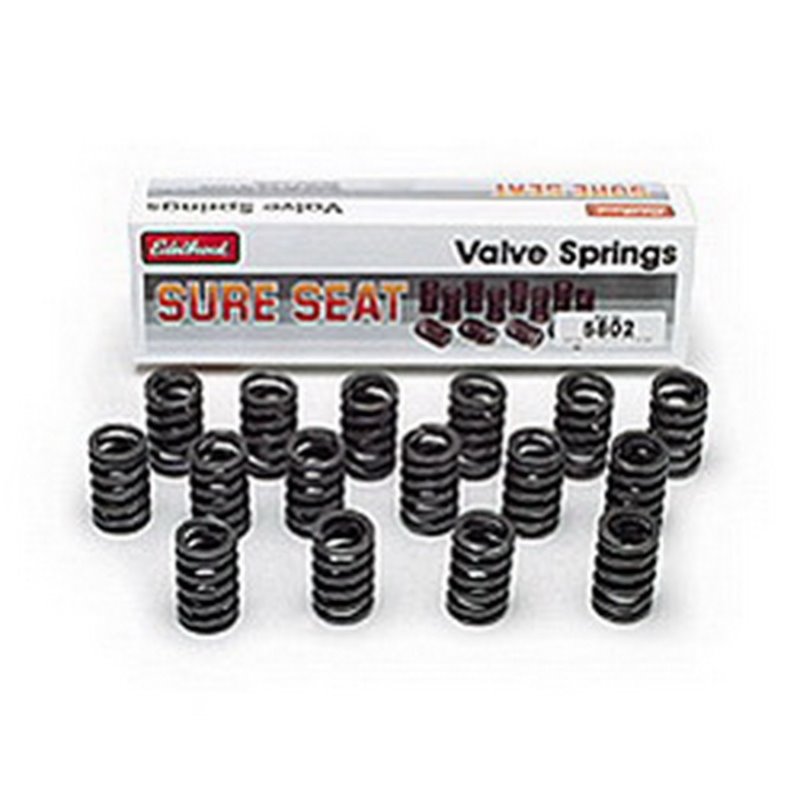

The Edelbrock #5703 Sure Seat Valve Spring for S/B Chevy O.E Cast iron cylinder heads are made of highest quality spring wire and precision wound to close tolerances, our Sure Seat Valve Spring sets are for use on original equipment heads when installing Edelbrock Performer-Plus, Performer RPM and Torker-Plus camshafts. These are the same high-performance springs used on Edelbrock Performer and RPM cylinder heads. For camshaft warranty compliance, use only the springs recommended by Edelbrock for each camshaft application.

Caractéristiques

Outside Diameter: 1.262 IN
Damper Spring Included: Yes
Installed Height: 1.700 IN
Springs Per Valve: Single
Inside Diameter: 0.878 IN
RGL: WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Installed Pressure: 110
Open Pressure: 285
Spring Rate: N/A
Material: Chromium Silicon
Camshaft Type: Hydraulic Flat Tappet
Spring Open Height: 1.210 IN
Spring Type: Cylindrical
Quantity: Set of 16
Coil Bind Height: 1.160 IN

Noter:

Livraison GRATUITE / FREE Delivery

Chevrolet

1967-1969 Camaro L6 3.8L SEE NOTE1
1967-1969 Camaro L6 3.8L SEE NOTE2
1967-1974 Camaro L6 4.1L SEE NOTE3
1972-1974 Camaro L6 4.1L SEE NOTE4
1967-1974 Camaro L6 4.1L SEE NOTE5
1972-1974 Camaro L6 4.1L SEE NOTE6
1980-1981 Camaro V8 4.4L SEE NOTE7
1980-1981 Camaro V8 4.4L SEE NOTE8
1967-1969 Camaro V8 4.9L SEE NOTE9
1967 Camaro V8 4.9L SEE NOTE10
1967-1969 Camaro V8 4.9L SEE NOTE11
1967 Camaro V8 4.9L SEE NOTE12
1969-1973 Camaro V8 5.0L SEE NOTE13
1972-1992 Camaro V8 5.0L SEE NOTE14
1976-1992 Camaro V8 5.0L SEE NOTE14
1969-1973 Camaro V8 5.0L SEE NOTE15
1972-1992 Camaro V8 5.0L SEE NOTE16
1976-1992 Camaro V8 5.0L SEE NOTE16
1967-1969 Camaro V8 5.4L SEE NOTE17
1967-1969 Camaro V8 5.4L SEE NOTE18
1967-1974 Camaro V8 5.7L SEE NOTE19
1972-1992 Camaro V8 5.7L SEE NOTE20
1974-1992 Camaro V8 5.7L SEE NOTE20
1981-1992 Camaro V8 5.7L SEE NOTE20
1987-1992 Camaro V8 5.7L SEE NOTE20
1967-1974 Camaro V8 5.7L SEE NOTE21
1972-1992 Camaro V8 5.7L SEE NOTE22
1974-1992 Camaro V8 5.7L SEE NOTE22
1981-1992 Camaro V8 5.7L SEE NOTE22
1987-1992 Camaro V8 5.7L SEE NOTE22
1967-1969 Camaro V8 6.5L SEE NOTE23
1967-1969 Camaro V8 6.5L SEE NOTE24
1970-1972 Camaro V8 6.6L SEE NOTE25
1972 Camaro V8 6.6L SEE NOTE26
1970-1972 Camaro V8 6.6L SEE NOTE27
1972 Camaro V8 6.6L SEE NOTE28
1969 Camaro V8 7.0L SEE NOTE29
1969 Camaro V8 7.0L SEE NOTE30
1980 Corvette V8 5.0L SEE NOTE31
1980 Corvette V8 5.0L SEE NOTE32
1963-1968 Corvette V8 5.4L SEE NOTE33
1963-1968 Corvette V8 5.4L SEE NOTE34
1969-1974 Corvette V8 5.7L SEE NOTE35
1972-1991 Corvette V8 5.7L SEE NOTE36
1974-1991 Corvette V8 5.7L SEE NOTE36
1982-1991 Corvette V8 5.7L SEE NOTE36
1984-1991 Corvette V8 5.7L SEE NOTE36
1969-1974 Corvette V8 5.7L SEE NOTE37
1972-1991 Corvette V8 5.7L SEE NOTE38
1974-1991 Corvette V8 5.7L SEE NOTE38
1982-1991 Corvette V8 5.7L SEE NOTE38
1984-1991 Corvette V8 5.7L SEE NOTE38
1969 Corvette V8 7.0L SEE NOTE39
1969 Corvette V8 7.0L SEE NOTE40
1970-1974 Corvette V8 7.4L SEE NOTE41
1972-1974 Corvette V8 7.4L SEE NOTE42
1970-1974 Corvette V8 7.4L SEE NOTE43
1972-1974 Corvette V8 7.4L SEE NOTE44
1979-1982 Monte Carlo V8 4.4L SEE NOTE45
1979-1982 Monte Carlo V8 4.4L SEE NOTE46
1970-1974 Monte Carlo V8 5.0L SEE NOTE47
1970-1988 Monte Carlo V8 5.0L SEE NOTE48
1974-1988 Monte Carlo V8 5.0L SEE NOTE48
1976-1988 Monte Carlo V8 5.0L SEE NOTE48
1970-1974 Monte Carlo V8 5.0L SEE NOTE49
1970-1988 Monte Carlo V8 5.0L SEE NOTE50
1974-1988 Monte Carlo V8 5.0L SEE NOTE50
1976-1988 Monte Carlo V8 5.0L SEE NOTE50
1970-1974 Monte Carlo V8 5.7L SEE NOTE51
1970-1977 Monte Carlo V8 5.7L SEE NOTE52
1970-1974 Monte Carlo V8 5.7L SEE NOTE53
1970-1977 Monte Carlo V8 5.7L SEE NOTE54
1970-1974 Monte Carlo V8 6.6L SEE NOTE55
1970-1976 Monte Carlo V8 6.6L SEE NOTE56
1970-1974 Monte Carlo V8 6.6L SEE NOTE57
1970-1976 Monte Carlo V8 6.6L SEE NOTE58
1970-1974 Monte Carlo V8 7.4L SEE NOTE59
1970-1974 Monte Carlo V8 7.4L SEE NOTE60
1970-1974 Monte Carlo V8 7.4L SEE NOTE61
1970-1974 Monte Carlo V8 7.4L SEE NOTE62

Pontiac

1981 Firebird V8 4.4L SEE NOTE63
1981 Firebird V8 4.4L SEE NOTE64
1977-1992 Firebird V8 5.0L SEE NOTE65
1977-1992 Firebird V8 5.0L SEE NOTE66
1978-1992 Firebird V8 5.7L SEE NOTE67
1979-1992 Firebird V8 5.7L SEE NOTE67
1987-1992 Firebird V8 5.7L SEE NOTE67
1978-1992 Firebird V8 5.7L SEE NOTE68
1979-1992 Firebird V8 5.7L SEE NOTE68
1987-1992 Firebird V8 5.7L SEE NOTE68
1972 Firebird V8 6.6L SEE NOTE69
1972 Firebird V8 6.6L SEE NOTE70

Note 1: High Perf. Street; Non-Rotator; Seat Press. 110lbs.; Installed H 1.700in.; Open Press. 285lbs. at 0.490in.; OD 1.265in.; ID 0.880in.; Coil Bind 1.160in.; For Use w/Cast Iron OE Cyl. Heads;Position: Exhaust
Note 2: High Perf. Street; Non-Rotator; Seat Press. 110lbs.; Installed H 1.700in.; Open Press. 285lbs. at 0.490in.; OD 1.265in.; ID 0.880in.; Coil Bind 1.160in.; For Use w/Cast Iron OE Cyl. Heads;Position: Exhaust; Engine Version: Chevrolet
Note 3: High Perf. Street; Non-Rotator; Seat Press. 110lbs.; Installed H 1.700in.; Open Press. 285lbs. at 0.490in.; OD 1.265in.; ID 0.880in.; Coil Bind 1.160in.; For Use w/Cast Iron OE Cyl. Heads;Position: Intake
Note 4: High Perf. Street; Non-Rotator; Seat Press. 110lbs.; Installed H 1.700in.; Open Press. 285lbs. at 0.490in.; OD 1.265in.; ID 0.880in.; Coil Bind 1.160in.; For Use w/Cast Iron OE Cyl. Heads;Position: Intake; Engine Version: Chevrolet
