Edelbrock | Complete Sure Seat Valve Spring Kit - 1963-1995

Edelbrock - Engine Valve Spring Kit

Description

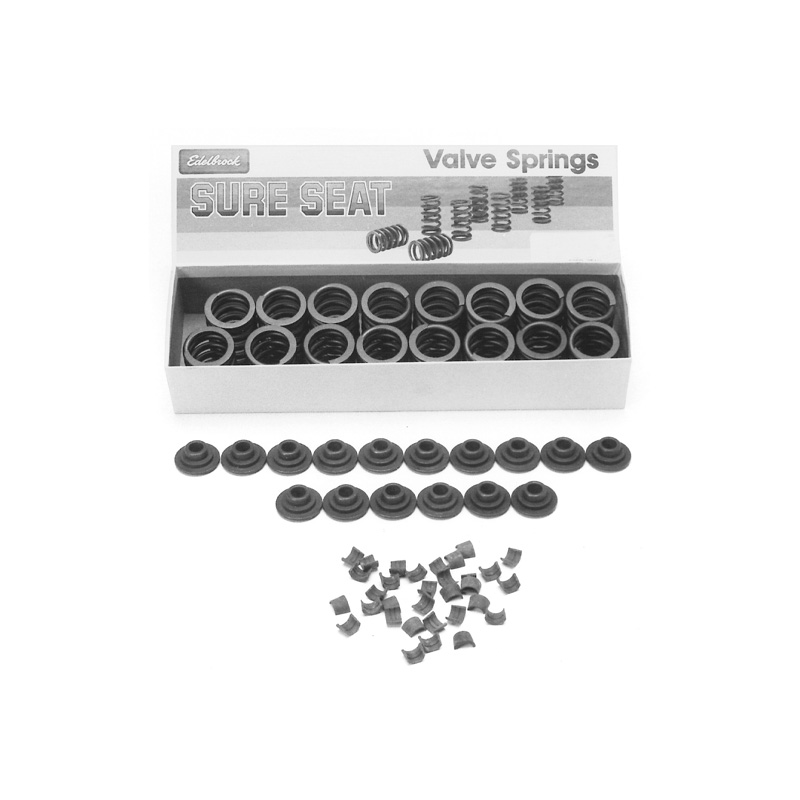

Edelbrock part #5794 Sure Seat Valve Spring Kit is designed for Small-Block Chevy O.E Cast Iron Heads. Made of highest quality spring wire and precision wound to close tolerances. This Sure Seat Valve Spring set is for use on original equipment heads when installing Edelbrock Performer-Plus camshafts. The valve springs are designed for use with OEM valve rotators. For camshaft warranty compliance, use only the springs recommended by Edelbrock for each camshaft application. Set of 16. Valve Spring Specifications: Type: Non-Rotator Seat Pressure: 110 lbs. Installed Height: 1.700" Open Pressure: 285 lbs. @ 0.490" Outside Diameter: 1.265" Inside Diameter: 1.060" Coil Bind: 1.160"

Caractéristiques

• Camshaft Type: Hydraulic Flat Tappet
• Coil Bind Height: 1.160 IN
• Damper Spring Included: Yes
• Inside Diameter: 0.880 IN
• Installed Height: 1.700 IN
• Installed Pressure: 110
• Locks Included: Yes
• Material: Chromium Silicon
• Open Pressure: 285
• Outside Diameter: 1.265 IN
• Quantity: Kit
• Retainers Included: Yes
• RGL: WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
• Spring Open Height: 0.490 IN
• Spring Type: Cylindrical
• Springs Per Valve: Single
